Front Pedestrian Braking, a new active safety technology available on the 2016 Chevrolet Malibu and 2016 Cadillac CT6, is one of many safety features tested at General Motors' new Active Safety Test Area at the Milford Proving Ground in Milford, Michigan. Image: Jeffrey Sauger/General Motors

Resident internet sleuth Bozi Tatarevic has unearthed an interesting patent granted to General Motors last week. Described as a “Fender Located Pedestrian Airbag,” it is intended to provide protection to a pedestrian hit by the front area of a vehicle.

Given that pedestrian safety standards are often cited as the reason for the pop-up headlamp’s demise, one can only assume that the units are poised for a glorious comeback on the next Corvette. No? Damn.

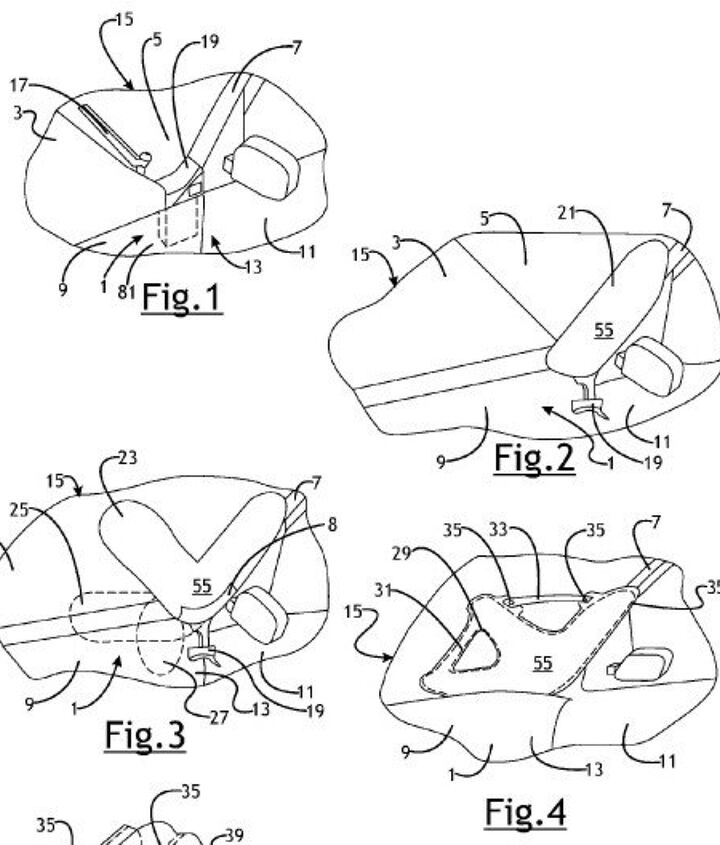

The 28-page filing shows a myriad of ways the exterior airbag could help protect a pedestrian in a collision, from popping out of the a-pillar and covering the windshield to being released from a fender flap in order to inflate and cover the wiper arms and other poky bits.

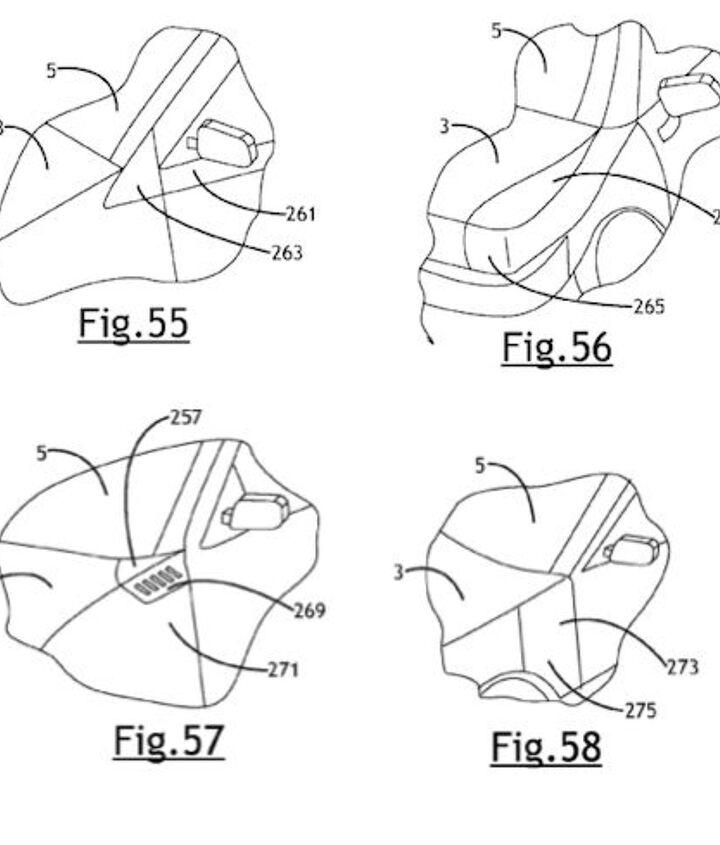

Referring to a number of the patent illustrations, a number of variations on this theme would see a pedestrian protection airbag module located in the fender region, laterally adjacent and below a vehicle’s hood but ahead of the driver’s door. Other examples describe an airbag deploying above the grille without lifting up the hood.

One would think there’s a myriad of engineering issues to overcome with this concept, not the least of which are the extreme conditions these units will face being housed outside the passenger cabin. Sure, the airbags inside a car are often subjected to extreme heat and cold, but units outside the car will also have to contend with road hazards and rigors of a daily commute.

The patent does address the issue of the deployment door sticking after being exposed to foul weather conditions. It goes on to talk about water diversion systems to keep the expensive electronics dry and in good working order. Sounds potentially like an awful lot of Rube Goldberg parts, then.

GM Exterior Airbag

Still, it is an interesting concept. A line in the patent document goes on to say that a “discrete deployment door” could be integrated into a window trim ring or – HERE IT IS – integrated into the headlamp area as part of the lamp or surrounding trim.

I know pop-ups aren’t making a return, even if some of the designs shown in this patent do make it into production vehicles.
