Kill Switch Thwarts Denver Civic Thieves Once Again, Junkyard Parts To the Rescue

Murilee Martin
by Murilee Martin

I love my beater 1992 Honda Civic, and living near downtown Denver is great, but the combination of fifth-gen Civic and urban living means that thieves are going to try to steal my street-parked car on a depressingly regular basis. Would-be thieves tore up my steering column less than a year ago, and they did it again a couple of weeks back. Both times, my homebrewed kill-switch system kept the bad guys from starting the car. Both times, I got the car back on the road with cheap junkyard parts.

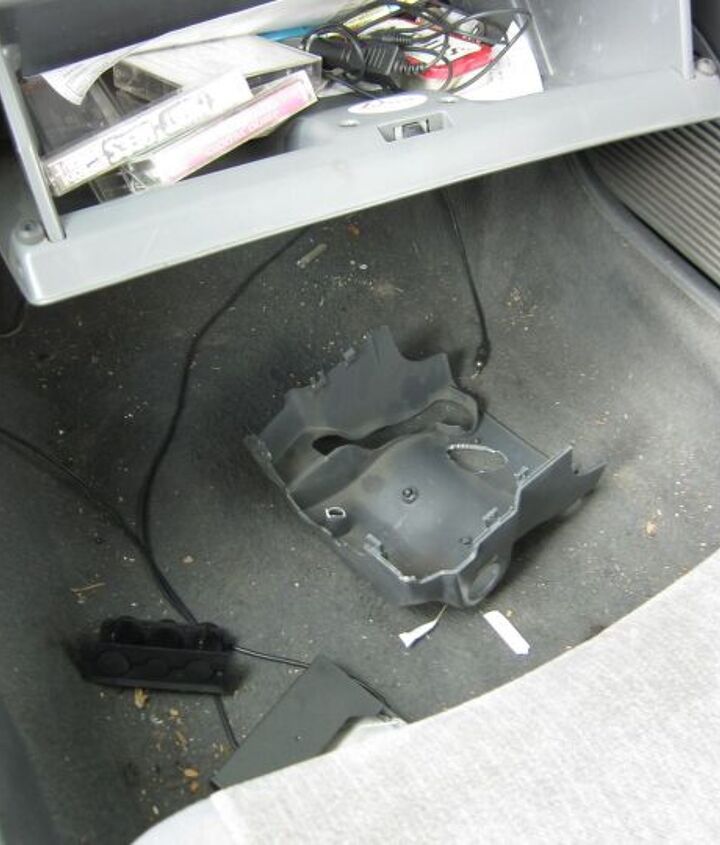

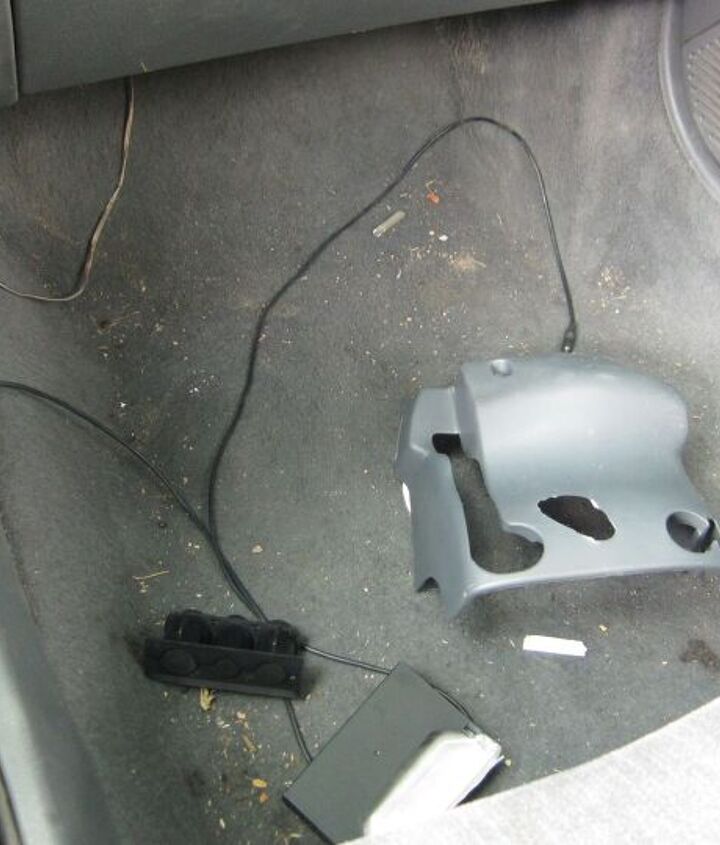

The first indication I got that something was wrong was the sight of the open glovebox— itself the victim of many break-ins when the previous owner lived in San Francisco and Chicago and repaired with non-color-matching junkyard parts just recently— and the busted steering-column cover on the passenger-side floor. Not again!

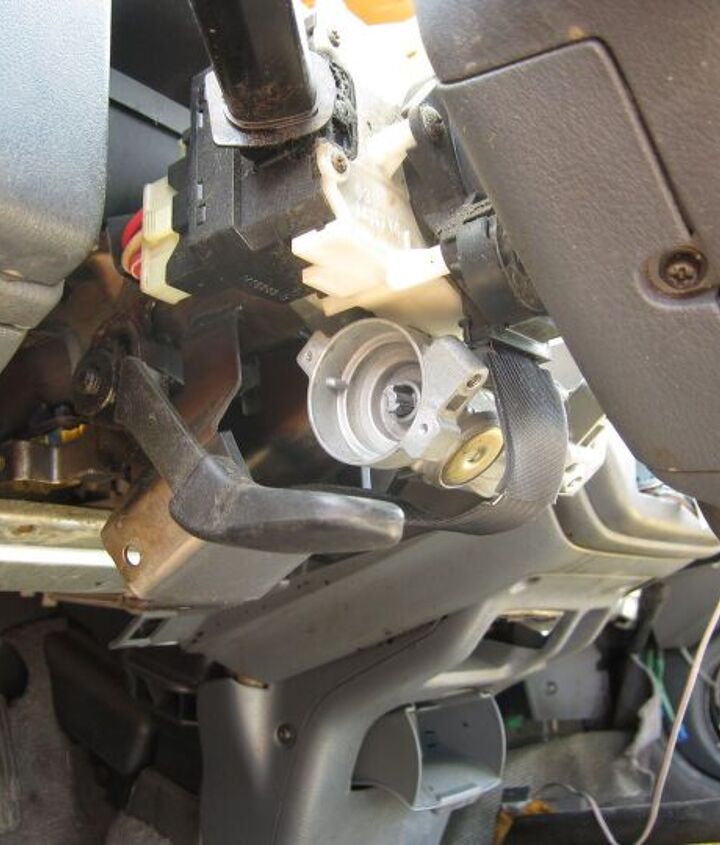

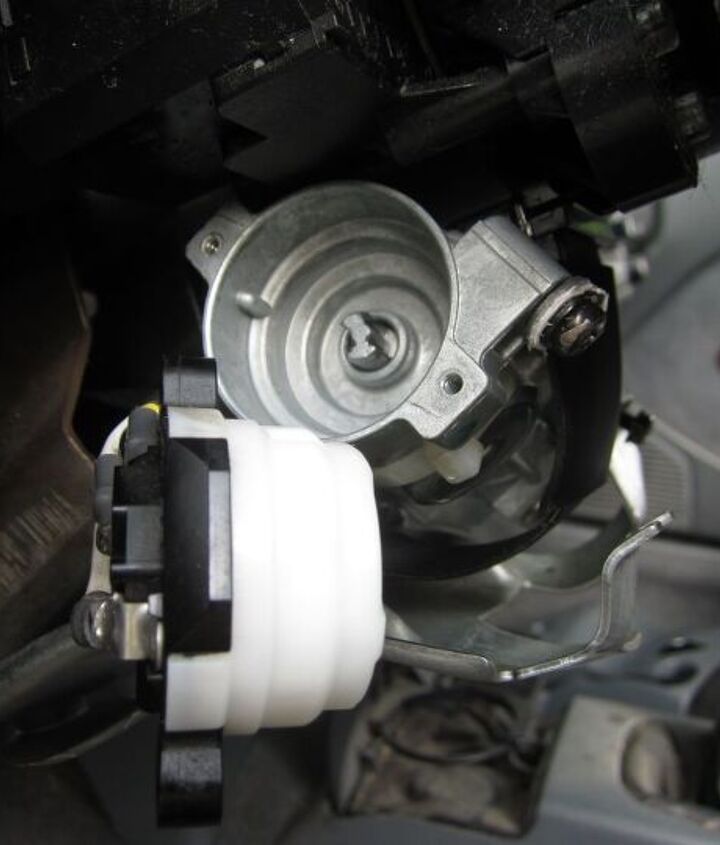

After I had an ’87 Civic hatch ripped off in Oakland back in the 1990s, I’ve installed kill switches on every Honda I’ve owned since; this is the fourth time (that I know of) that such a switch has saved one of my cars from theft. The problem with Civics of the 1980s and 1990s is that any random Honda key has a pretty good chance of starting any Honda; most thieves just carry a bunch of keys with them and keep trying keys until one works. This thief went for the old-fashioned break-the-column-lock/pry-the-ignition-switch-off approach, which tears the hell out of everything on the steering column.

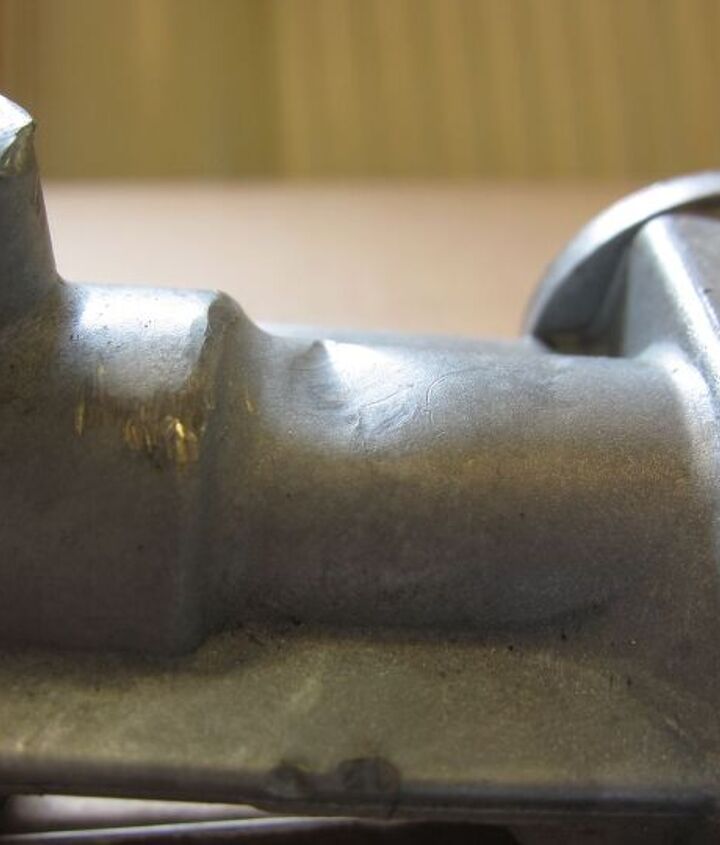

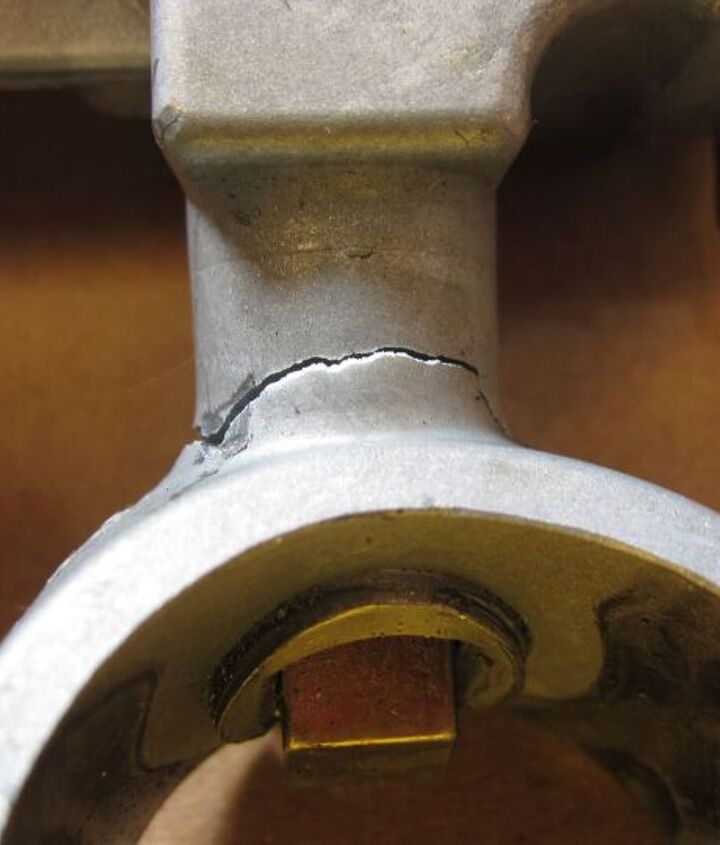

I’m not sure exactly what tools are used to do this, but some major leverage must have been used to crack the tough steel of the column-lock collar.

I’d like to share my kill-switch secrets with the world, but I don’t want to make things any easier for the Honda thieves prowling my neighborhood. What I’ve got is a device that doesn’t look like a switch and requires a certain amount of contortion to reach from the driver’s seat, and it’s a double-pole/single-throw switch that cuts power to both the starter solenoid and the fuel pump. Actually, that’s the setup I had, before this incident; now I’ve got the two circuits on separate camouflaged switches. It would take a very patient thief indeed to find both switches, and meth use doesn’t encourage such patience.

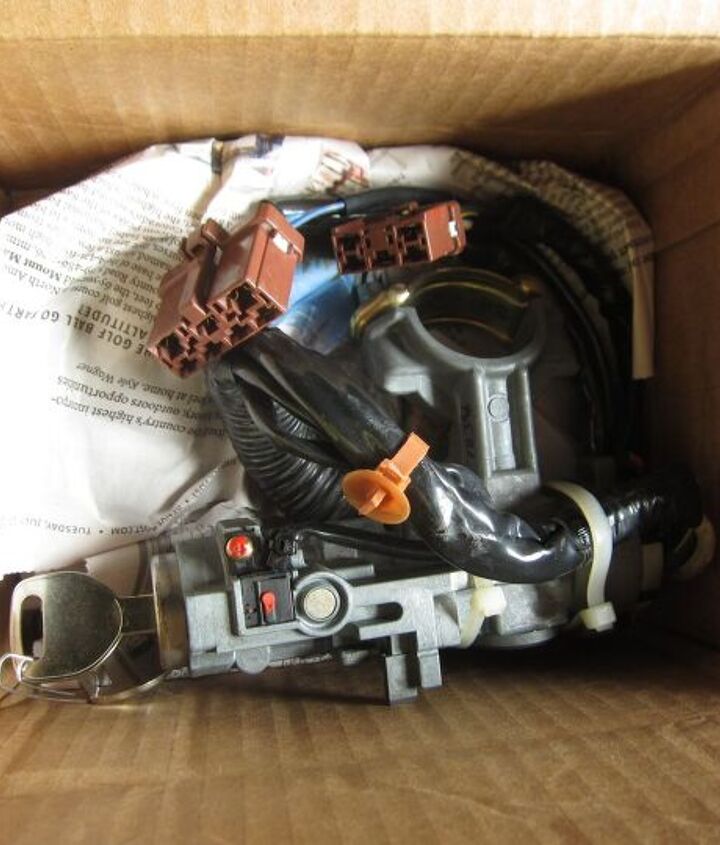

One of these days I’m going to master the art of Field Expedient Ignition Key Making, as seen at towed-car auctions: you jam a key blank in the lock, abuse it cruelly with a pliers, and then file away the areas where the lock pins made marks on the blank. For now, I buy a lock cylinder and ignition switch at the junkyard and get a locksmith to make a key; in this case, I found a great deal on eBay for a 5G Civic cylinder/switch assembly with keys already there, so I went that route.

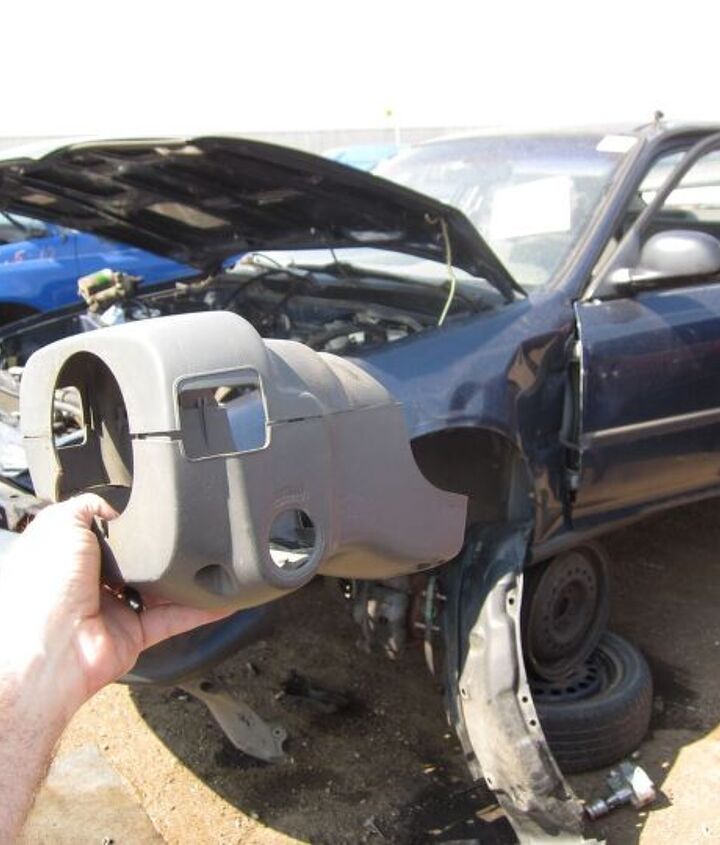

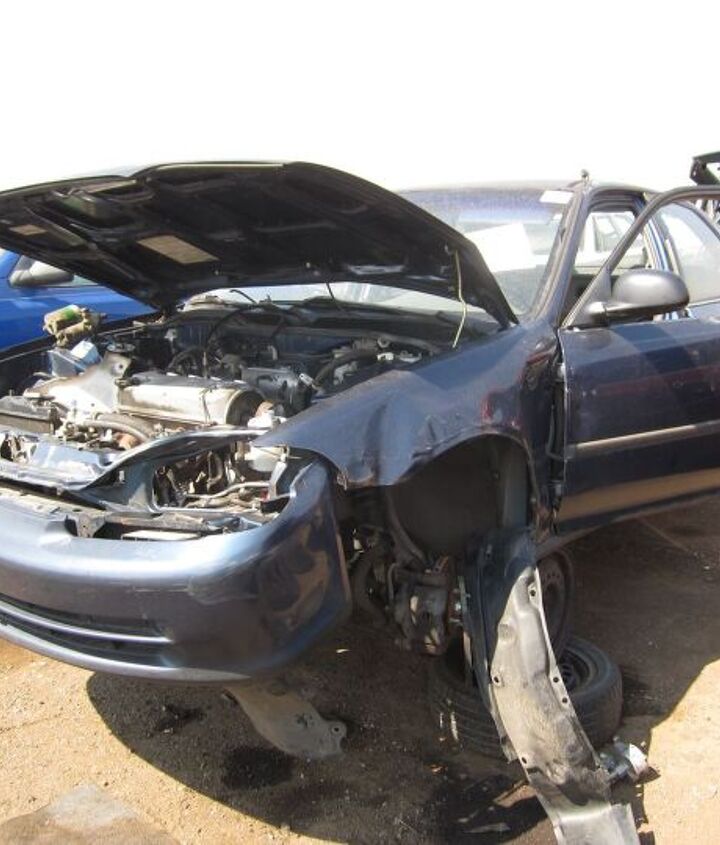

Since the steering-column covers had been torn to bits by the amphetamine-crazed Civic thief, I headed to my favorite self-serve wrecking yard to do some plastic shopping. Someone had already pulled the ignition switch from this ’95 Civic sedan (nearly every 5th-gen Civic in self-service yards has had the ignition switch assembly removed, which tells you something about the prevalence of theft with these cars), and he or she had been kind enough to not destroy the steering column cover pieces. It’s nice to find that the parts you need are removed and conveniently located.

Success! I’m pretty sure my car had been stolen and recovered several times before I bought it, because every lock and latch in the car was already pretty well thrashed; the steering column cover was already beat to hell before the latest thief finished it off. I’ll have to give the car’s previous owner a call and ask him about the car’s theft history.

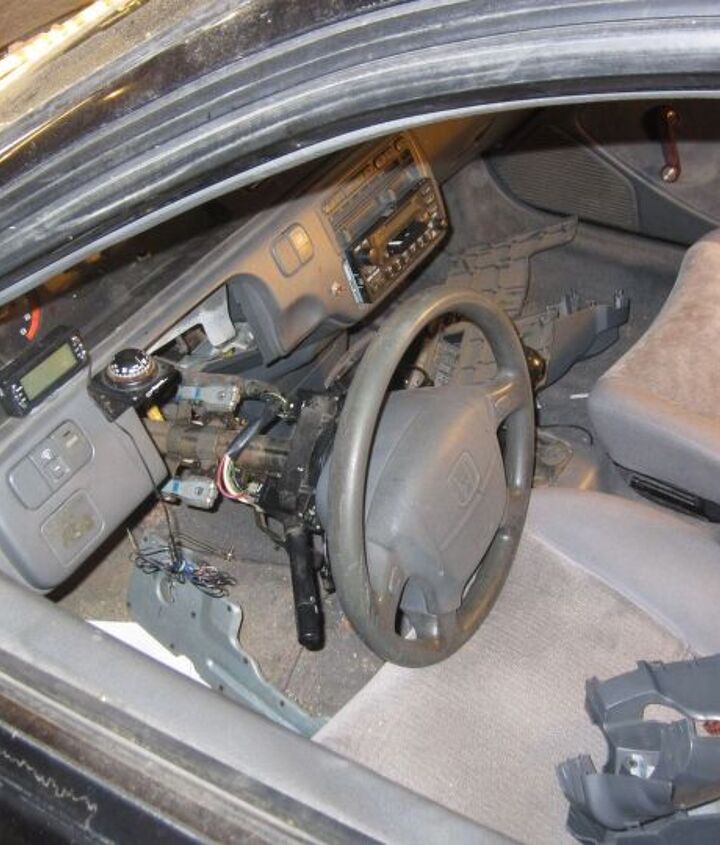

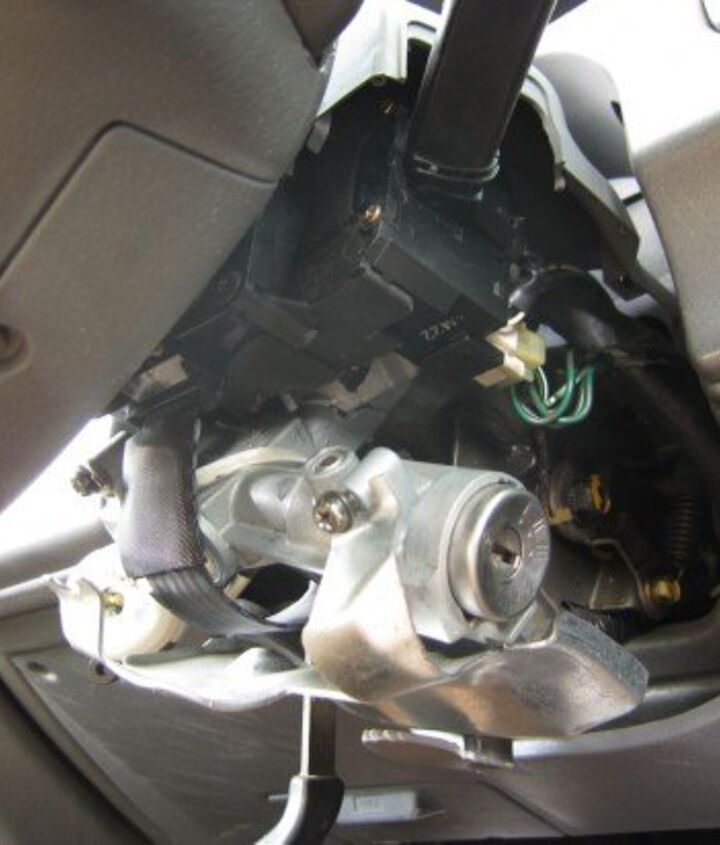

Removing the old switch is a medium-grade pain in the ass, mostly because the car is so small and it’s hard to get to anything. To get to the shear bolts that hold the switch assembly on the steering column, you need to drop the column down to seat level.

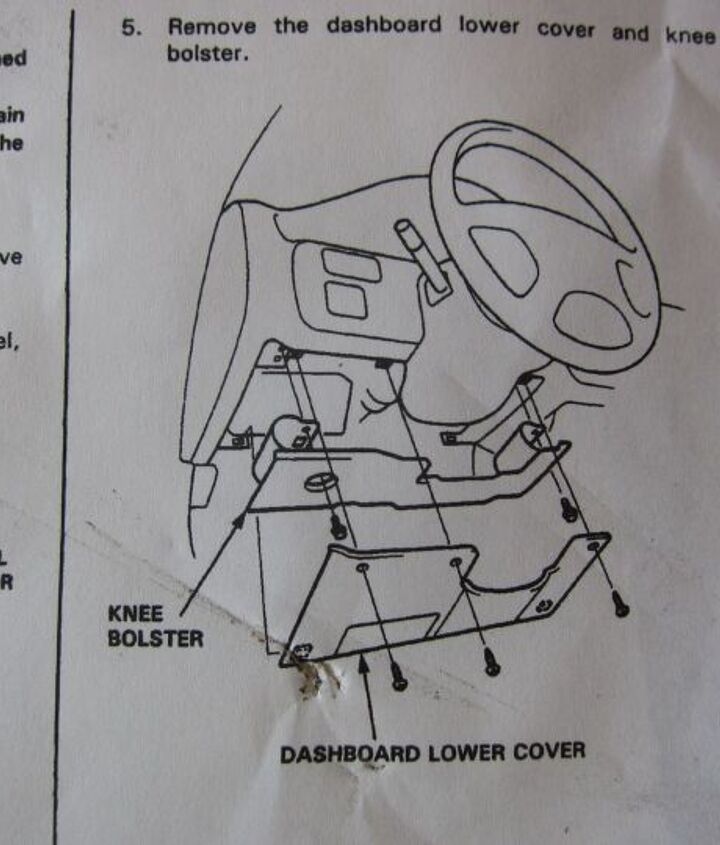

This is the sort of job for which the factory shop manual is a must-have, and Honda has always done a beautiful job with their manuals. I’m a technical writer by trade, and I’ll use Honda factory shop manuals as course materials if I ever teach a tech-writing class (if I ever teach a fiction-writing class it’s going to be Flannery O’Connor all the way).

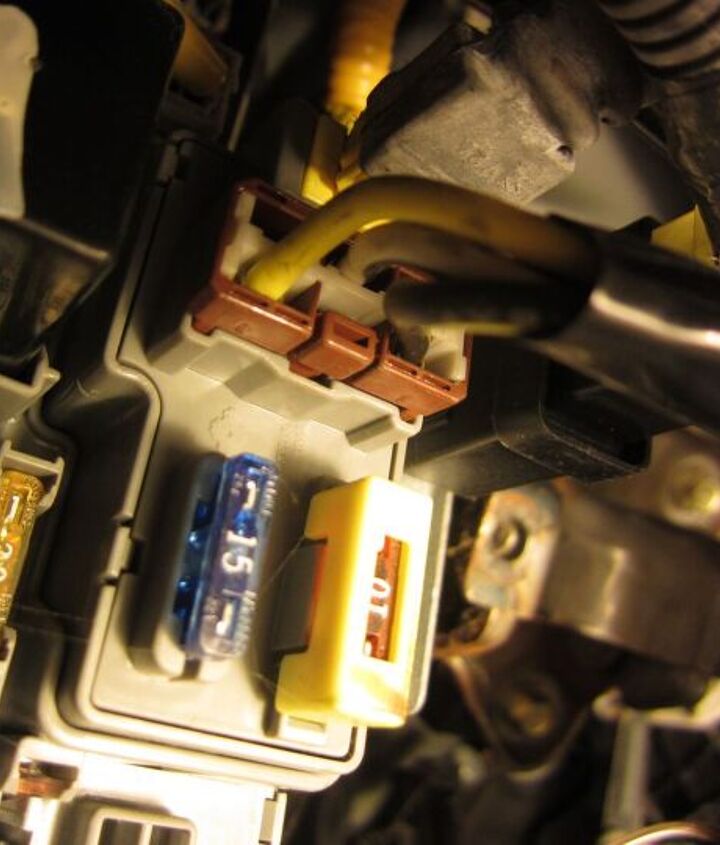

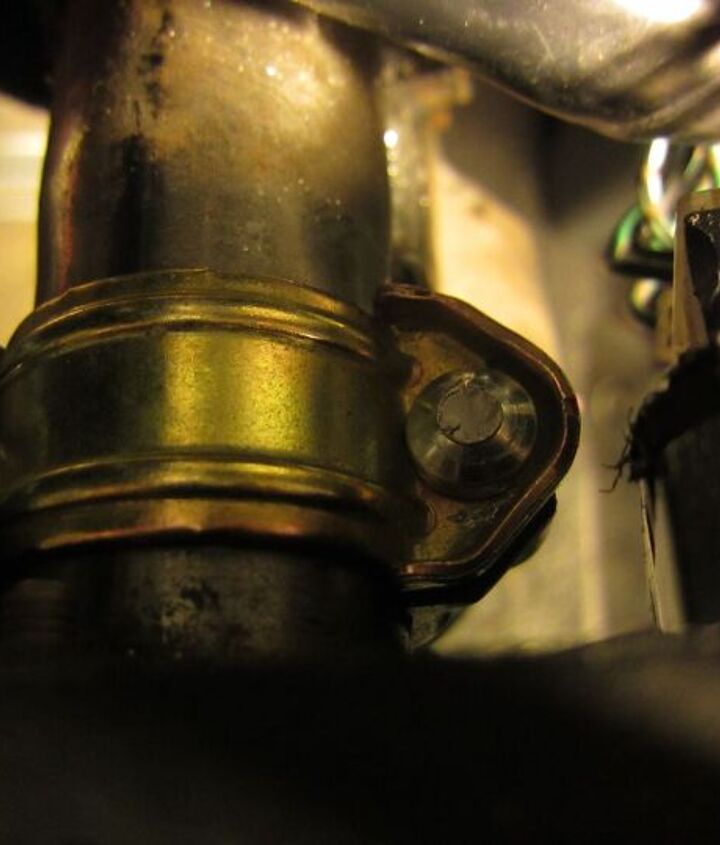

Right. So, you center-punch and drill out the two shear bolts that hold the lock cylinder assembly on the steering column, and then you unplug the two connectors from the ignition switch harness to the fuse panel.

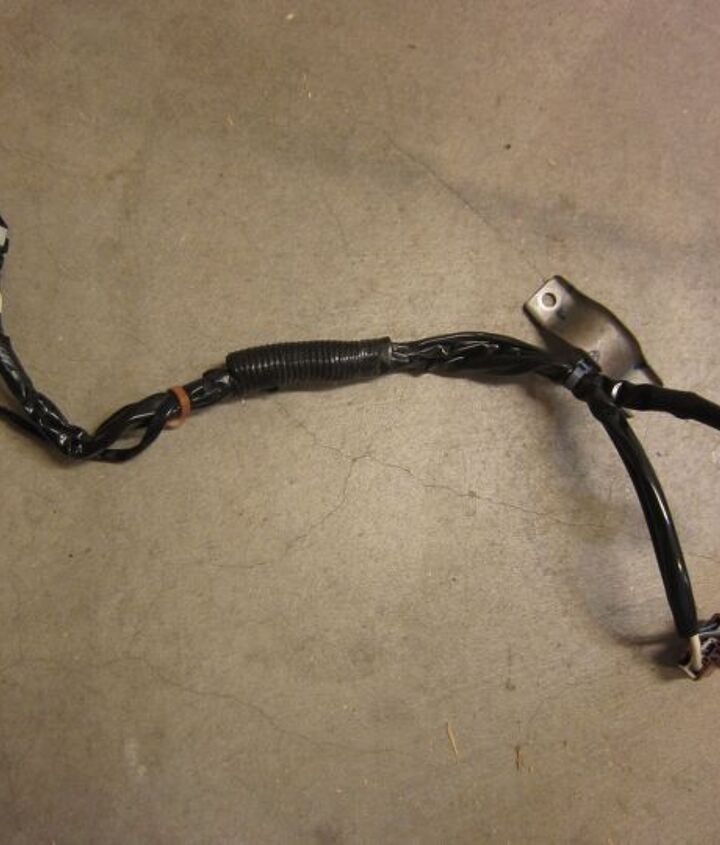

Here’s the old ignition switch and harness assembly.

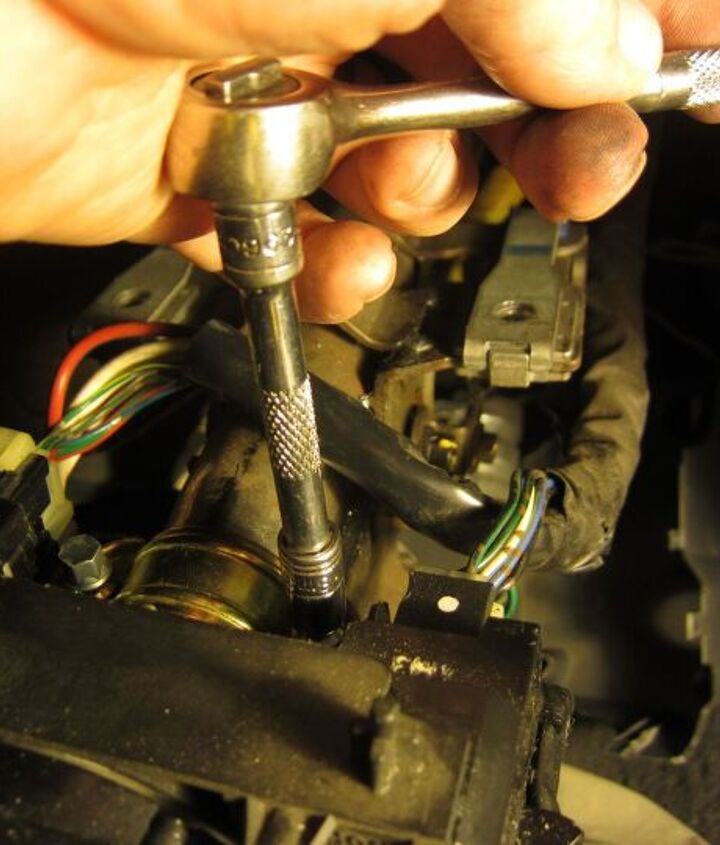

You can install the ignition switch/cylinder assembly with regular bolts and it probably wouldn’t matter; any thief who is willing to remove the half-dozen fasteners required to get access to the switch mounting bracket is going to apply his talents to more valuable targets. My switch came with new shear bolts, courtesy of the eBay seller, so I used them.

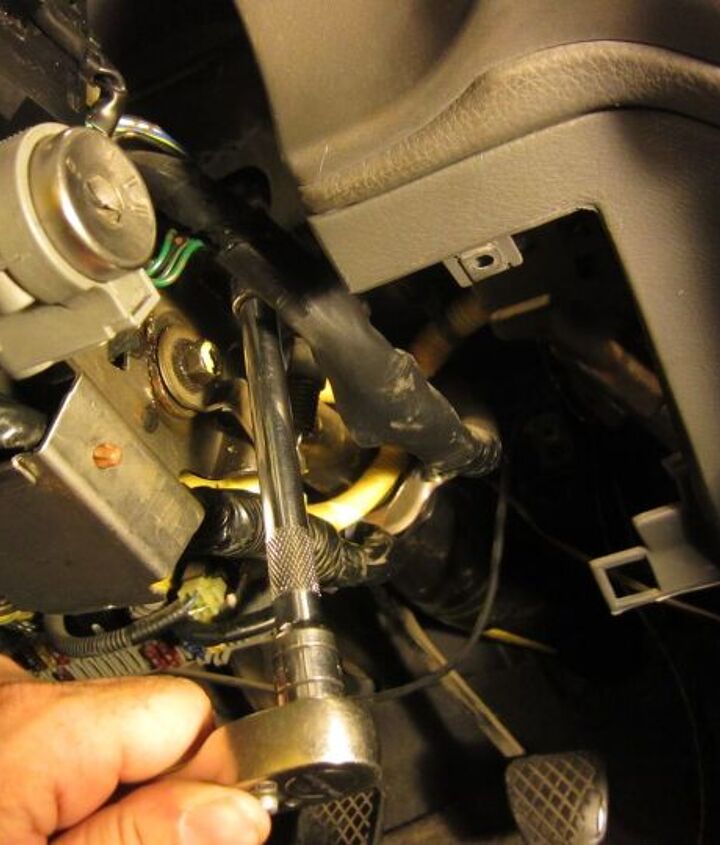

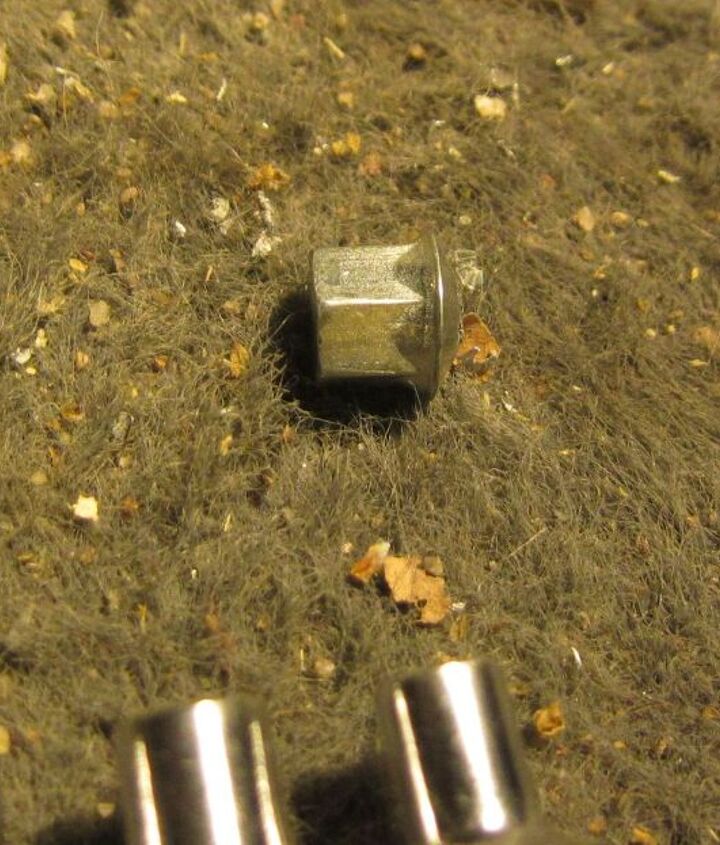

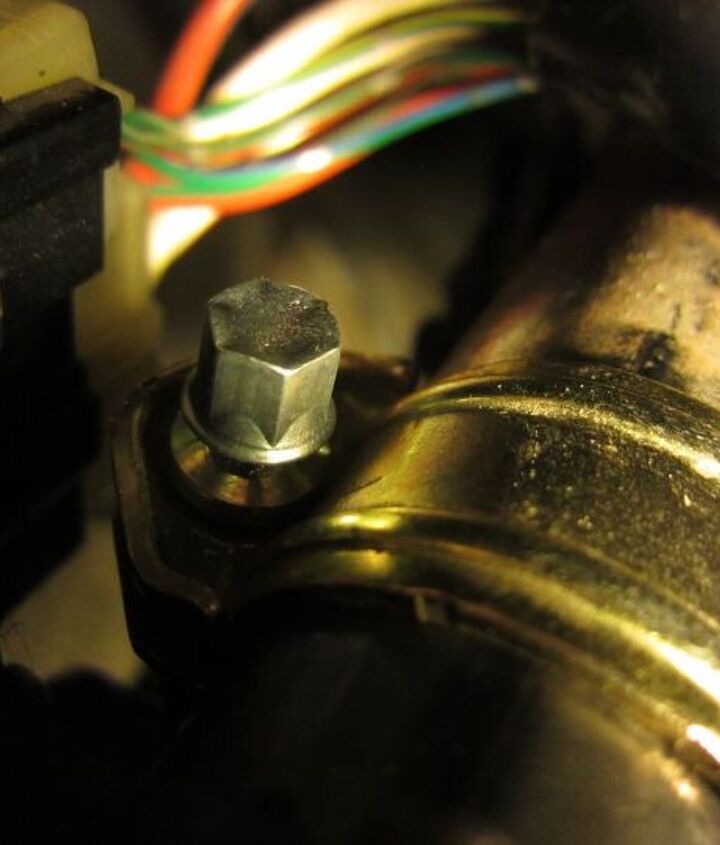

It doesn’t take much torque to snap off the heads of the shear bolts; one hand on a short 1/4″-drive ratchet was sufficient.

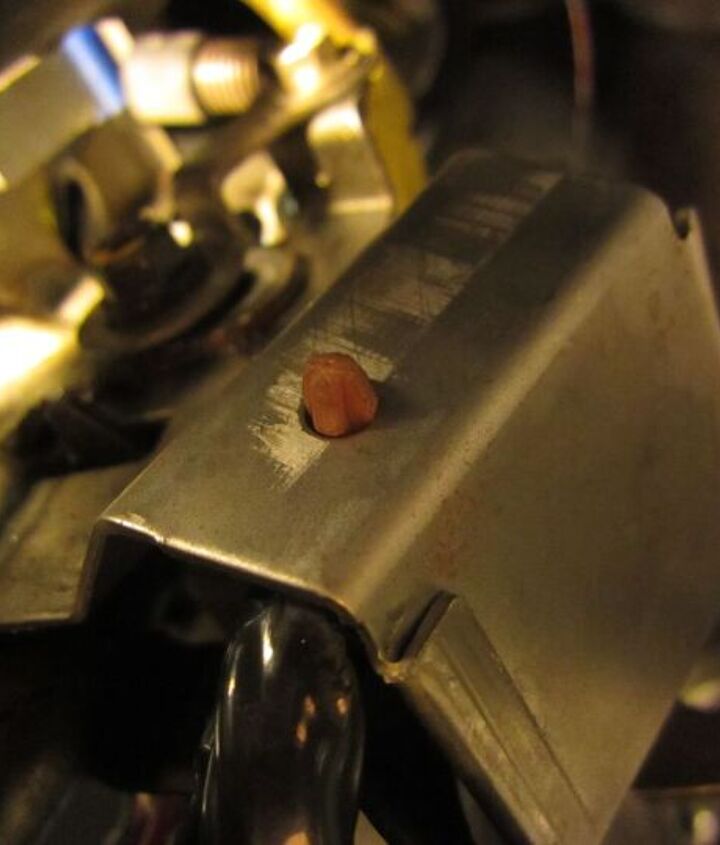

At this point, punching and drilling of the bolt will be needed to remove the assembly.

In a job like this, there’s always some nickel/dime headache that slows things down. In this case, the replacement switch’s wiring harness didn’t have one of the two one-way hold-downs that keep the wires out of the way of nearby moving parts.

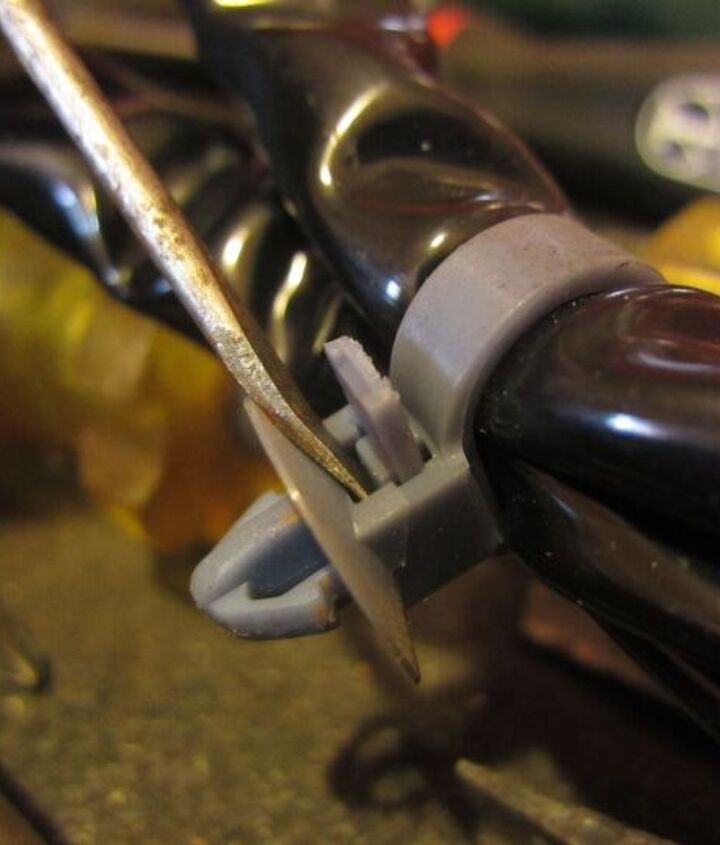

I could have drilled a second hole in the bracket and used a zip-tie, but instead I opted to free up one of the hold-downs on the old harness and install it on the new one.

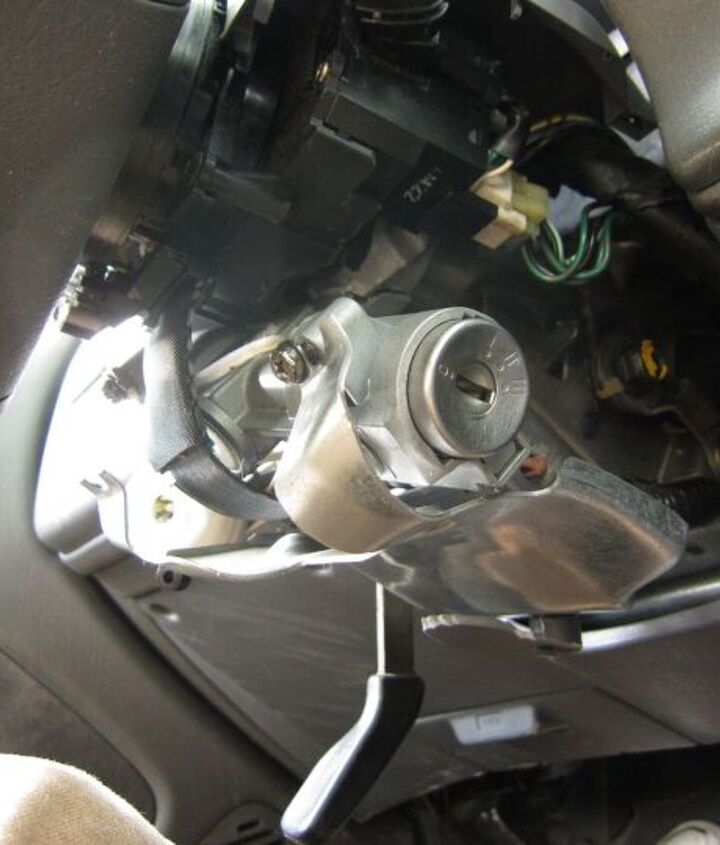

A quick test showed that the new switch worked fine, so I buttoned everything up.

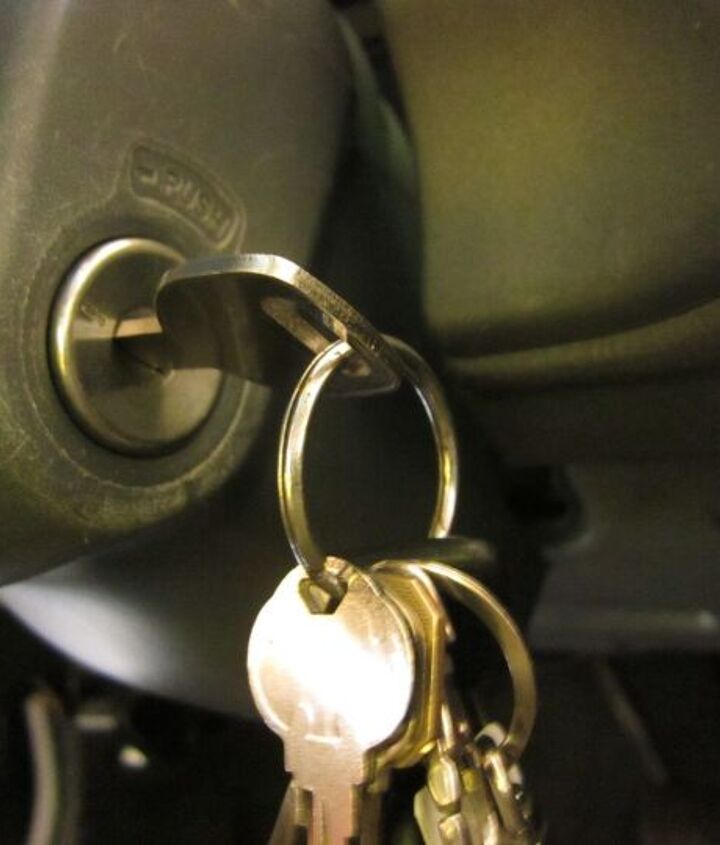

Ready to go!

I’m glad my kill switches have saved my Civic, which has been the best daily-driver/parts-hauling beater I’ve ever owned, but these constant theft attempts are getting old. To prevent such occurrences— which seem inevitable, given that I park a known-to-be-easy-to-steal car with high parts demand in a nice neighborhood adjacent to a sketchy/tweeker-centric ‘hood— in the future, I’m going to take additional steps:


1. I’ve been parking the Civic (which I don’t drive much since I bought a much more VIP daily driver) in a dark parking space where it can’t be seen from my house, mostly so my ’66 Dodge A100 van can be seen from the house. Since I remove the battery from my hot-wireable-in-10-seconds van when it’s parked, and demand for A100 parts isn’t particularly high, it’s probably safe to let the Civic live in the A100’s spot.


2. Car alarms are pointless and annoying, but the cost of a flashing LED and resistor is about 99 cents. There’s a small-but-real chance that the appearance of an alarm will deter potential thieves, so I’ve installed a blinky LED on the dash. I’ve also added a club-style steering wheel lock, because a thief might decide that the added 30 seconds to hacksaw through the steering wheel isn’t worth the risk of getting shot full of holes and/or bludgeoned with a lag-screw-studded 2×4 by an enraged car owner.


3. I’ve added a second kill switch, so now the fuel pump and starter are interrupted by separate switches. Good luck finding both switches, thieves!


4. Long-term (i.e., before I swap my Integra GS-R B18C1 engine in), I plan to install a racing-style quick-release steering wheel in the car and stash the wheel inside the house. Most thieves don’t carry a collection of steering wheels with all the popular quick-release hubs, and using a Vise-Grip as a steering wheel works poorly on a non-power-steering-equipped car.
