When your 1980 Porsche 924 craps out minutes after the start of its first race and you’re in rural Texas, parts might be a little hard to find. You won’t get far with a blown head gasket and big ol’ notches burned in the head itself. But, damn, the clock keeps ticking! The Moose Knuckles team called every junkyard within 500 miles, but nobody had any 924 (or Audi 100) cylinder heads. In fact, nobody had ever heard of them furrin thangs.

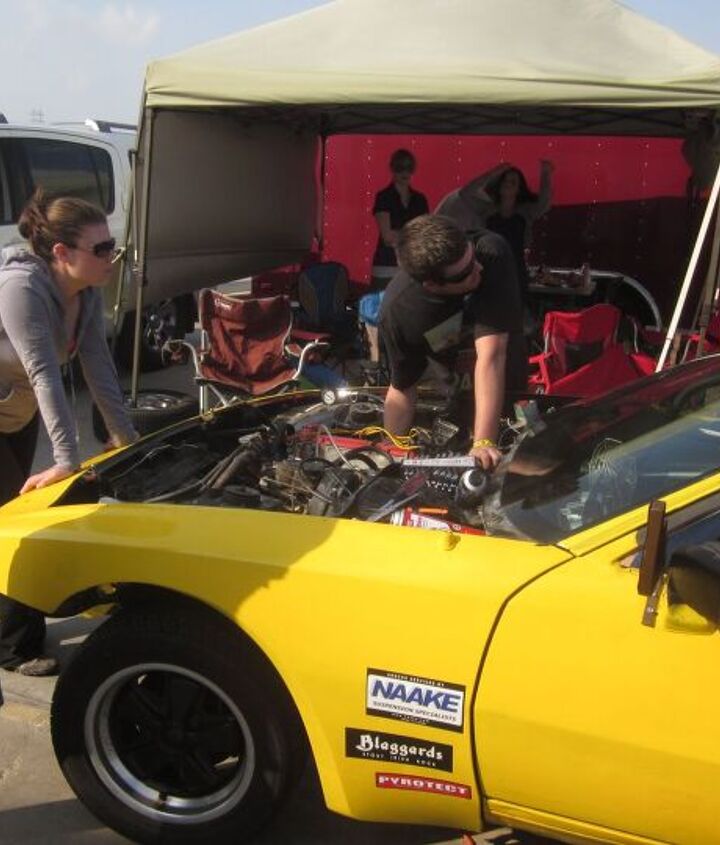

The Moose Knuckles were able to find a head gasket a few hours’ drive away, but they came up with exactly bupkis on the head. But then one of the guys remembered the fine print on the JB Weld package: Repairs Engine Blocks. Block, head, what’s the difference?

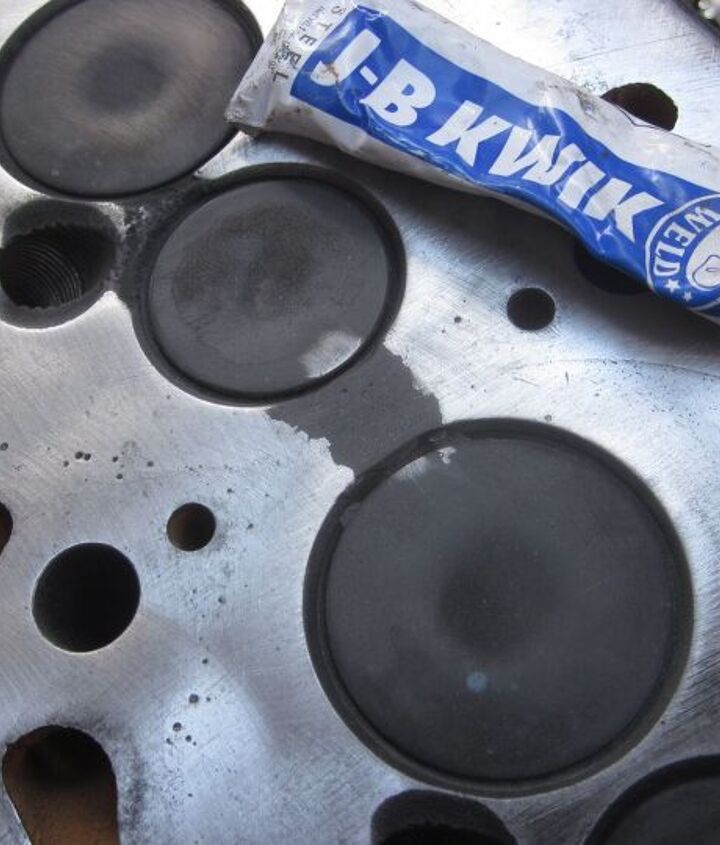

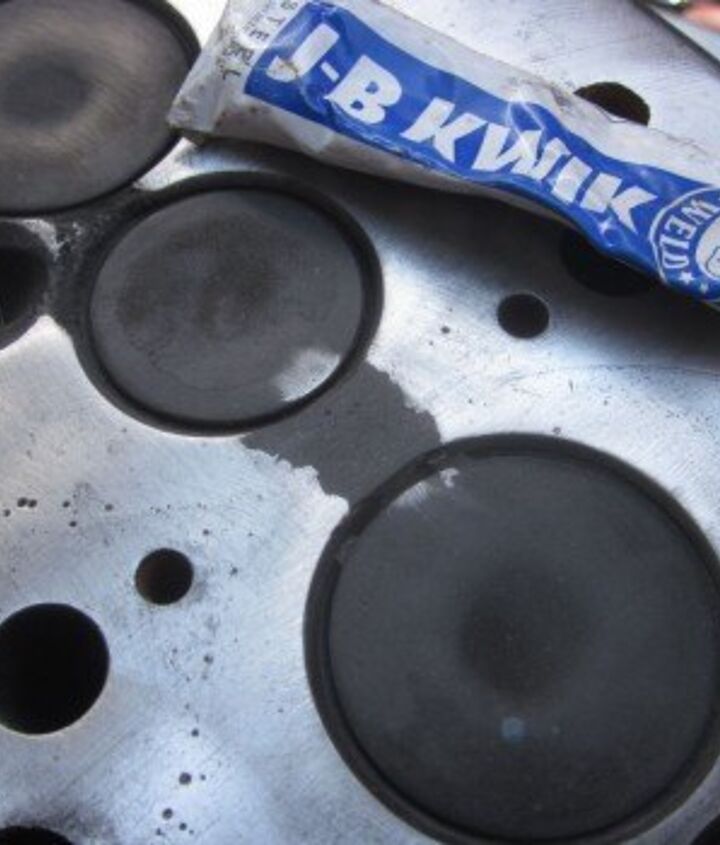

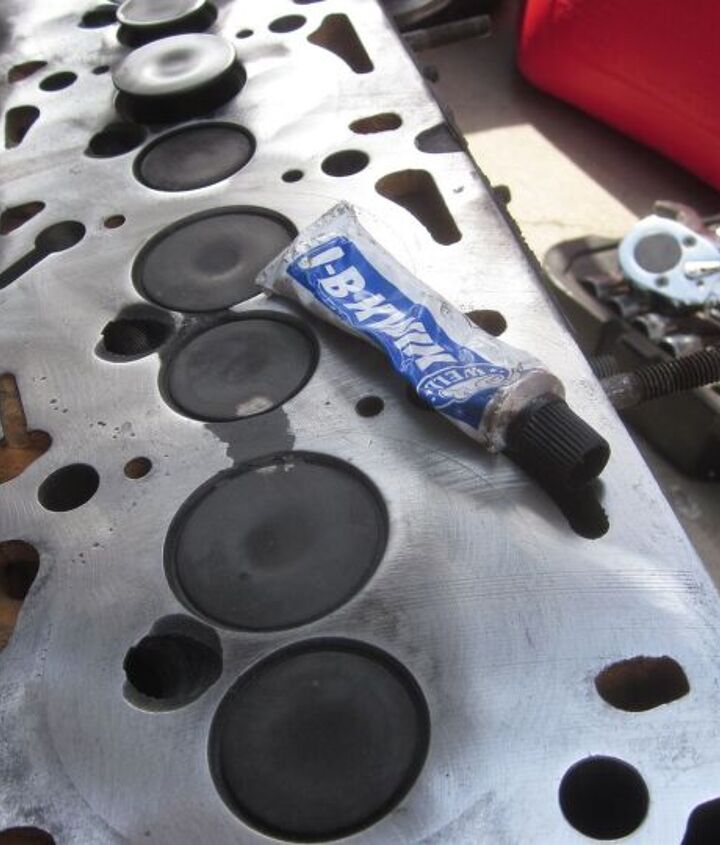

Picking up some JB Weld and JB Kwik, the Moose Knucks got right to work. Sure, combustion-chamber temperatures get higher than the JB Weld-rated 500 degrees F, but we’ve seen such repairs work in the past… on cast-iron heads. What will happen with an aluminum head?

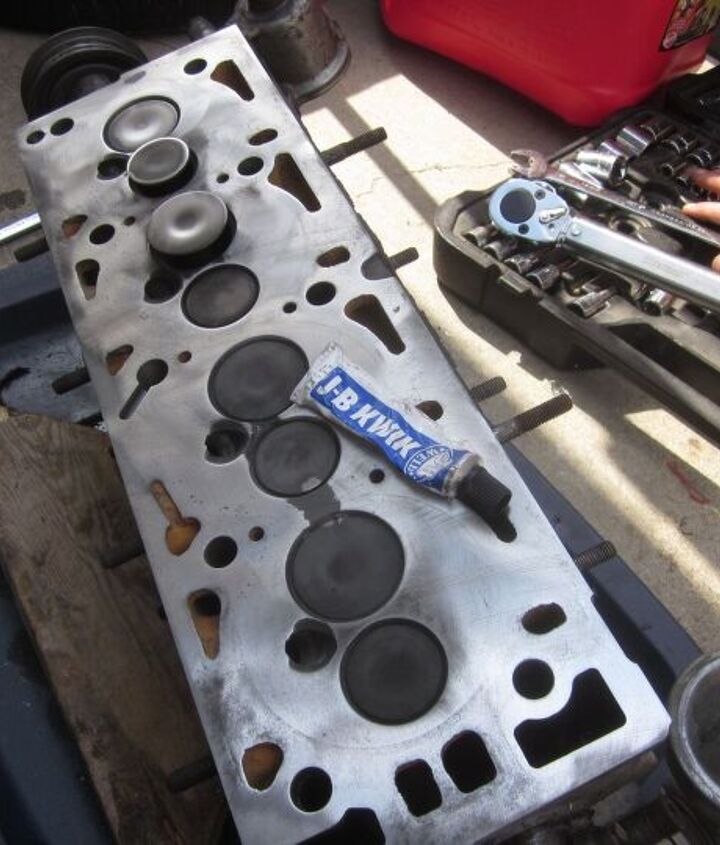

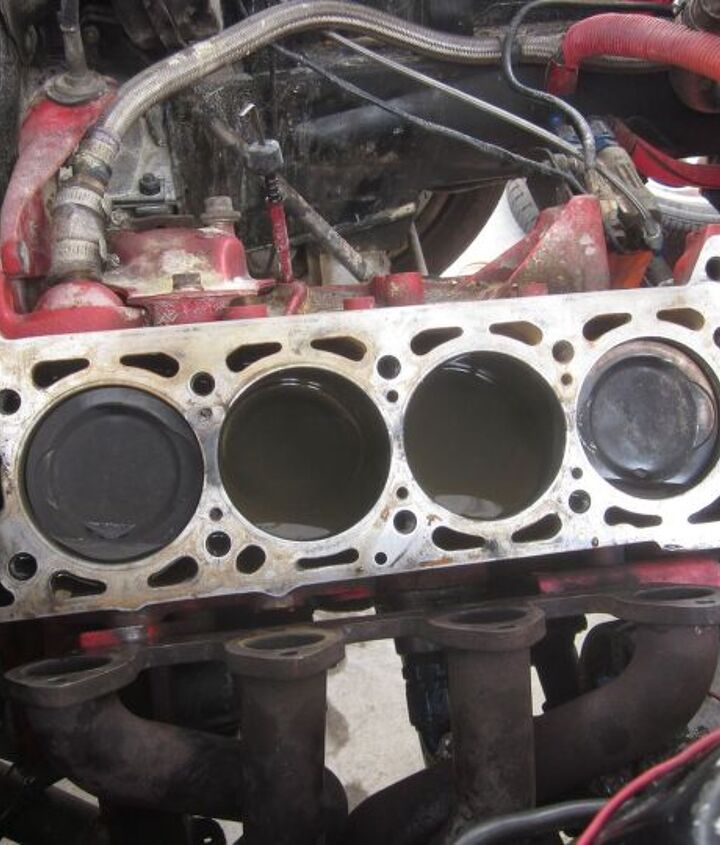

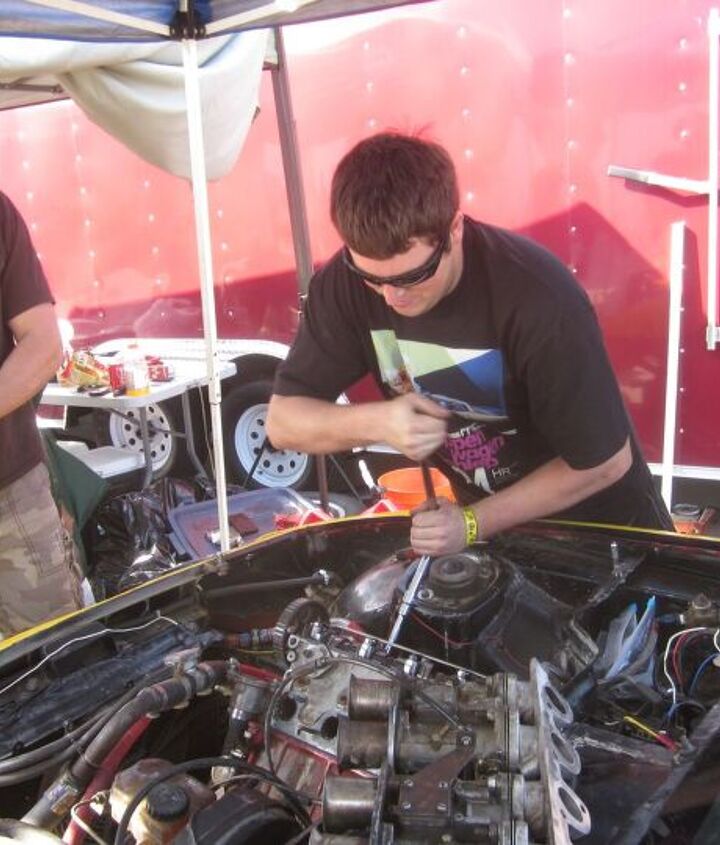

Fill in the holes with that magical gray stuff, sand it down, and slap the head back on the engine. Take the car on the track. Return behind the tow truck. Repeat. Endlessly.

Because the track exit at MSR comes before the transponder loop, and the Moose Knuckles’ Porsche never managed a full lap under its own power, all those laps that ended on the hook didn’t count. Official race results counted the car as a DNS. On the bright side, the Moose Knuckles took home the I Got Screwed award.

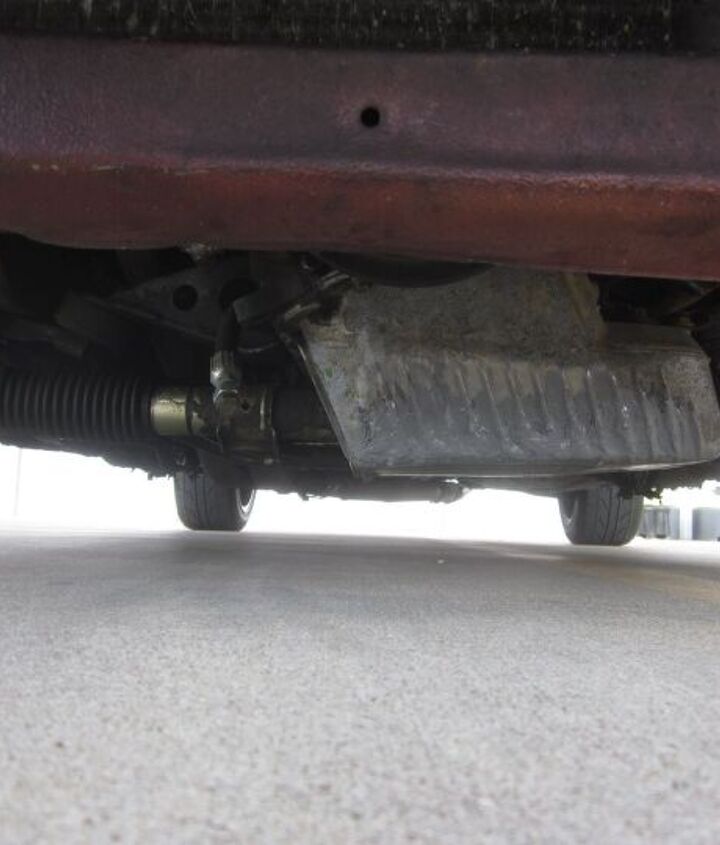

Just so you don’t think JB Weld repairs always fail at LeMons races, here’s a JB-patched E30 oil pan from the same race. The car wiped out, bottoming the pan and cracking the hell out of it. Thanks to a generous application of metal-filled epoxy, the car finished the race.
