It’s no secret that vehicle owners are becoming more hands-off when it comes to vehicle maintenance and repair. Some of that blame can be attributed to the increasing complexity of modern cars, and automakers are using that to their advantage as they attempt to make cars even more hands-off. The tool roll and spare tire you’d find in older cars have been replaced with a can of fix-a-flat and a roadside assistance card.

Changes like the disappearance of the spare tire are the result of chasing fuel economy standards, though others — like increased use of plastic engine covers — seem like the automaker’s way of telling owners they’ll need to subscribe to a service plan instead of trying to turn a wrench on their own. A recently published patent shows someone at Ford had the idea to take this to next level — so owners will never have to open the hood at all.

The only items that requires the opening of a modern car’s hood on a regular basis is the windshield washer fluid fill, and this patent describes a way to get around that. Patent US9,725,074 describes a grille emblem which can be used as a hood release and a windshield washer fluid fill.

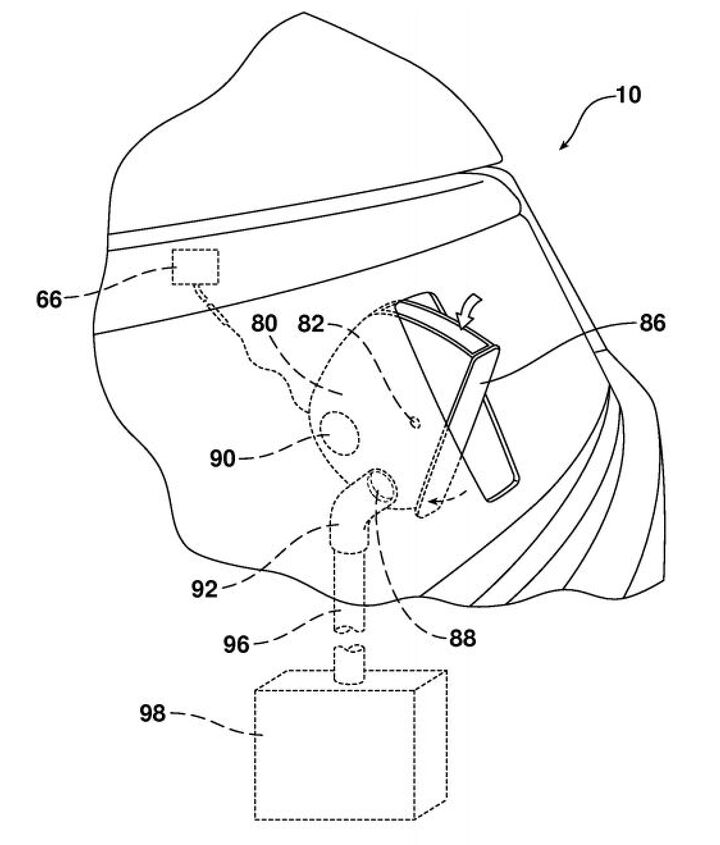

The diagrams show an emblem that can be pulled from the top to reveal a reservoir in which to pour washer fluid. When pulled from the bottom, it releases the hood latch.

ford-washer-fill-emblem

According to the patent’s background, the inventors believe that refilling washer fluid involves a procedure that is comprised of “several inconvenient and frustrating steps.” They go on to state that:

On many vehicles one must reach under the hood and run a hand along the top of the motor vehicle grille seeking to locate the level which is hidden from view. This not only results in dirty hands but also potential frustration if the latch lever is not found quickly.

It is also significant to note that the engine compartment is often hot during the windshield washer fluid refilling task, as the low fluid level is typically discovered while driving. This creates an additional hazard while working under the hood to perform this task.

While Ford has a reasonable point about the latch area getting dirty, I find it hard to believe that people are getting frustrated and burned while trying to access the washer fluid fill. The background summary ends by stating this new system would not require opening the hood at all, representing “a significant advance in the art.”

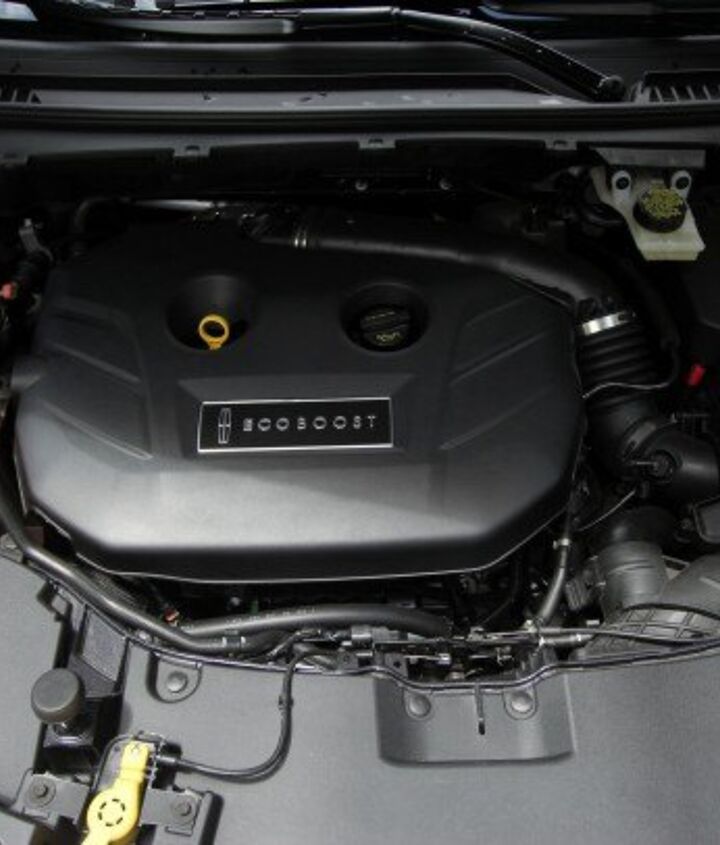

2015 Lincoln MKC 2.3 Ecoboost Engine

An external washer fluid fill could be a useful feature but, based on the diagram, it would require many more parts than current designs and could be susceptible to collecting dirt and debris.

Another issue with the system, which was mentioned by resident Michigander Adam Tonge, is that snow and slush could cause the mechanism to freeze and prevent you from adding washer fluid in the freezing conditions when it is most needed. It’s an interesting idea, but I do not see the inconvenience in refilling the fluid now, as the washer reservoir is usually close to the front of the engine bay and painted in a visible color.

I believe this sort of invention does more to propagate the idea that owners should not maintain their cars than anything to do with convenience.

[Images: Ford, via U.S. Patent and Trademark Office]
