Bob Lutz’ Cadillac Sixteen concept wasn’t the first time a revival of the classic Cadillac V12 and V16 era was considered. In the mid sixties, Cadillac was seriously mulling production of one or the other, and several versions of a SOHC V12 engine (see post here) were built. But if you think the Sixteen Concept had a long nose and was a bit over the top, check out this rendering by Cadillac Studio Chief Wayne Kady. From the size of the steering wheel and dashboard, it appears they were planning to transplant the V16 from a tug boat. This must be where the infamous bustle-back trunk of the 1980 Seville originated. Well, this is just a not-so-small taste of the creativity that was unleashed when the designers were asked to come up with ideas.

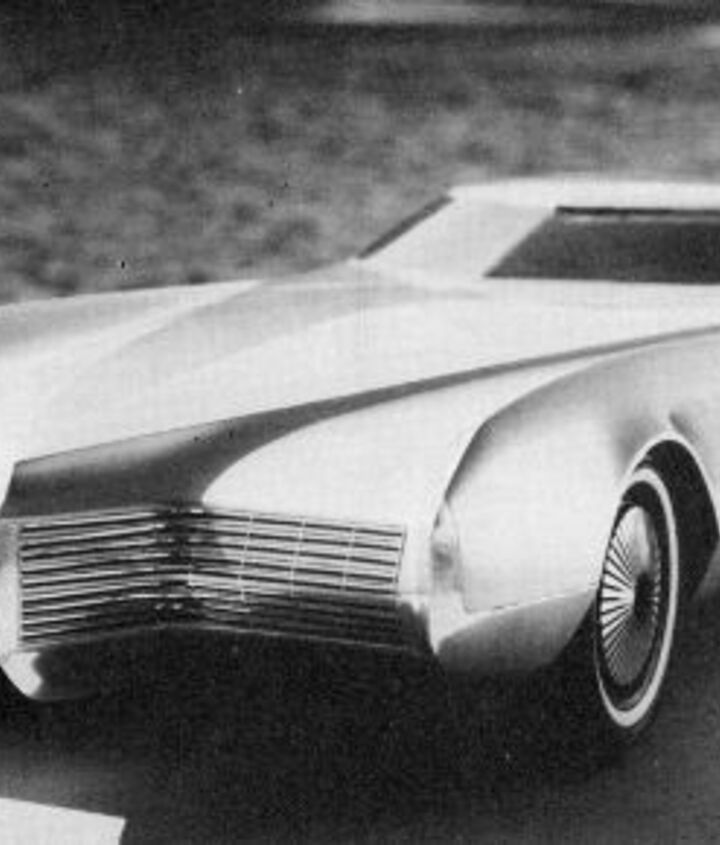

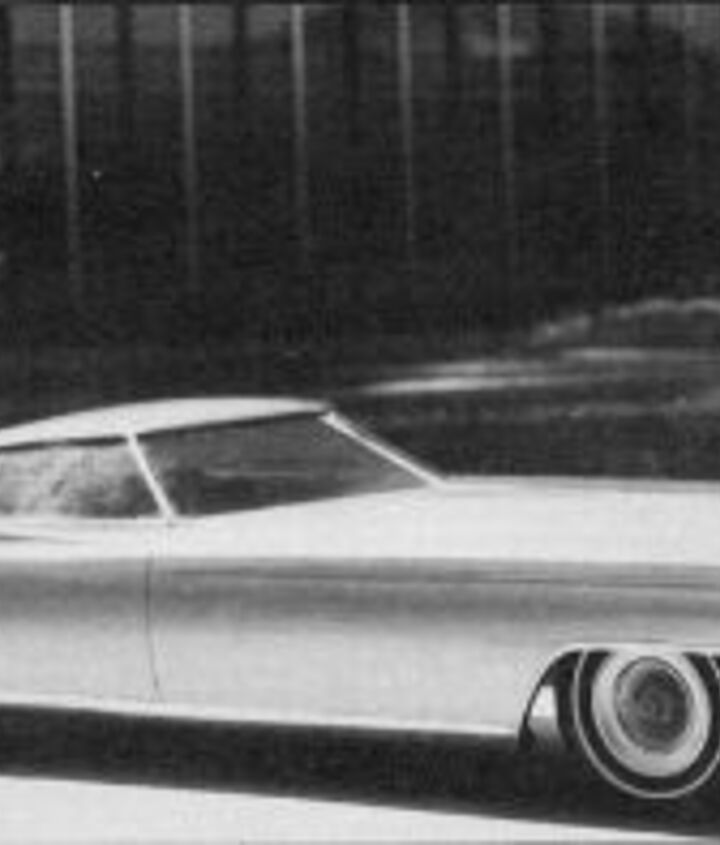

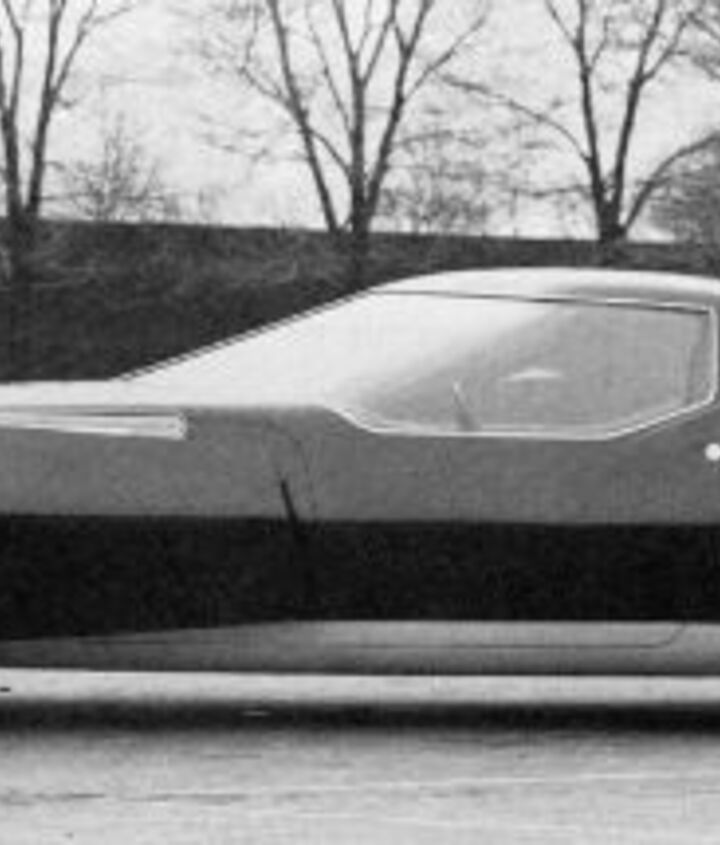

Now this clay is flying a bit closer to Earth. A pretty stock ’63 front end married to a set-back coupe, to leave plenty of room for all those cylinders. They all have that Maybach Exelero look. Well, I haven’t shown you them all though, have I? But there’s a double treasure trove awaiting you this Saturday with the following two links: at hemmingsblog, there’s a reprint of a 1981 Special Interest Autos story detailing the whole program, including lots of clays, many design aspects of which later show decided similarities to cars like the ’66 Toronado (below)

and the ’67 Eldorado (below).

The other link is to Dean’sGarage, where a remarkable set of color renderings by Wayne Kady await your perusal.

Wayne Kady spent 38 years in the Caddy and Buick studios, and is responsible for the “highly successful 1971 Eldorado” (not my quote). The CC Deadly Sin for that is here.  Mr. Kady is apparently also responsible for a number of questionable designs at Cadillac as its Studio Head from 1974 to 1988, which include the disastrous 1985 shrunken head mobiles.

No disrespect to Mr. Kady, whose renderings are highly creative, but I’m afraid history will not smile kindly on all of his production creations. But these wild flights of imagination sure brought a smile to my face on this dark, drizzly Saturday morning. I thank you for that, sir.
