One of the red-circled events on my calendar every year is the Detroit Autorama, arguably the world’s best custom car and hot rod show. As is fitting for an event in the Motor City, the vehicles competing for the Autorama’s top prize, the Ridler Award, must actually function, they have to be driven onto the show floor under their own power, and the hoods are up during judging so the judges can evaluate the engine compartment.

While that makes for fair competition, it also makes for less-than-ideal photography of the cars’ styling. No kid sitting in seventh-grade study hall ever drew a hot car with the hood up.

It might surprise you, then, that I was excited to find out about the Engines Exposed exhibit running until the end of February at the Henry Ford Museum’s Driving America display. Curators there have popped the hoods on over 70 of the more than 100 vehicles on permanent display at the museum. Unlike at the Autorama, you won’t find any LS3 engines, but you will find a small-block Chevy V8 from the 1950s, as well as many other historically significant powerplants. I say “powerplant” because the vehicles featured don’t just include those powered by gasoline engines. There are gas/electric hybrids, including one over a century old, pure battery-electric vehicles, Chrysler’s famous turbine, and even a steam-powered vehicle.

The Henry Ford Museum is always worth a visit, but if you’re a motorhead, this is a particularly propitious time to check it out.

I was going to do a photo essay on the display, with a little bit of historical info to accompany each engine, but some of the engines are worthy of entire books by themselves and the post would have gotten unwieldy.

Instead, we decided that a quiz would be more fun. Can you identify the make and model of the car from just a cropped image of the motor?

Some of them are easier than others, as I didn’t bother to obscure any logos that decorate a few of the engines. And speaking of obscure, I’ll be surprised if you can identify all of them. Some are virtually one of a kind so don’t be too hard on yourself if you don’t identify them. On the other hand, some of the motors and their motorcars are so iconic that you should give up your car guy/gal card if you don’t recognize them.

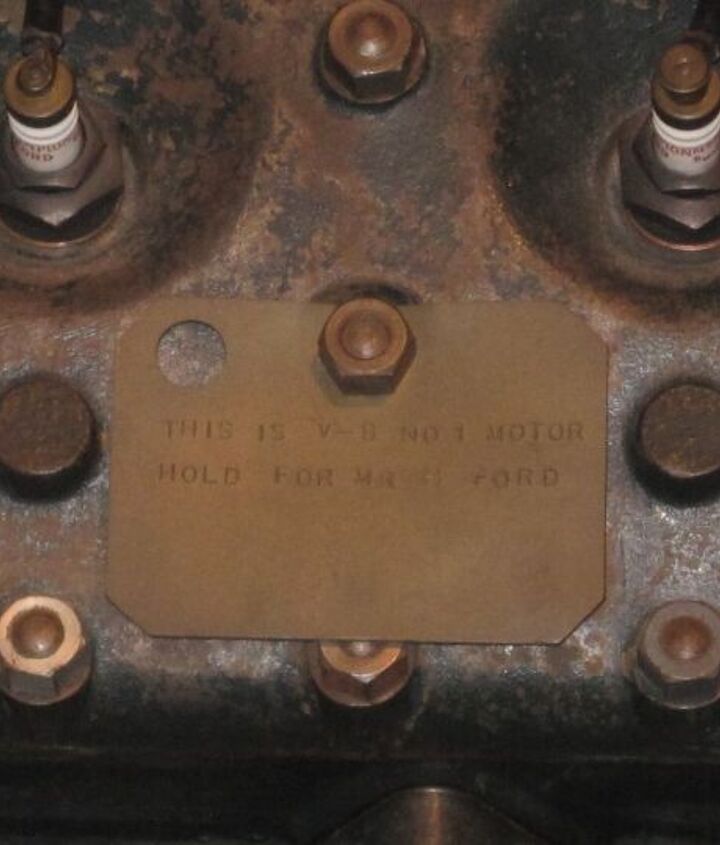

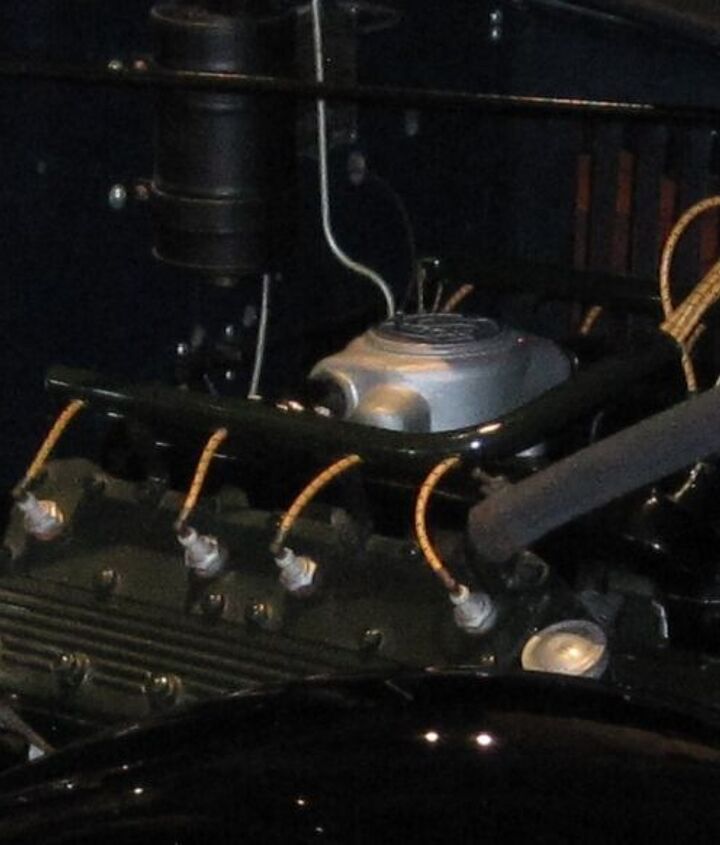

By the way, the flathead Ford V8 engine at the top of this post isn’t part of the quiz. That’s the first production Ford V8 ever made, with a hand-stamped brass plate reading:

THIS IS V-8 NO 1 MOTOR
HOLD FOR MR H FORD

One might say that’s a bit ironic in light of the fact that the V8 was Henry Ford’s second choice for a powerplant to replace the by-then venerable Model T’s four-cylinder engine. At Henry’s direction, Ford Motor Compan spent four years and uncounted dollars trying, in vain, to develop an X-8 layout before the industrialist accepted failure and turned to the V8 configuration. Still, though it was his second choice, the V8 was Henry’s baby. While the flathead Ford V8 was revolutionary in that it brought V8 power to non-luxury automobiles, it’s hardly a perfect design — and most of its technical shortcomings are the result of Henry Ford’s personal decisions.

The correct answers for the quiz are provided below, along with a gallery of uncropped photos.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.



15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.



27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.



38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

54.

55.

56.

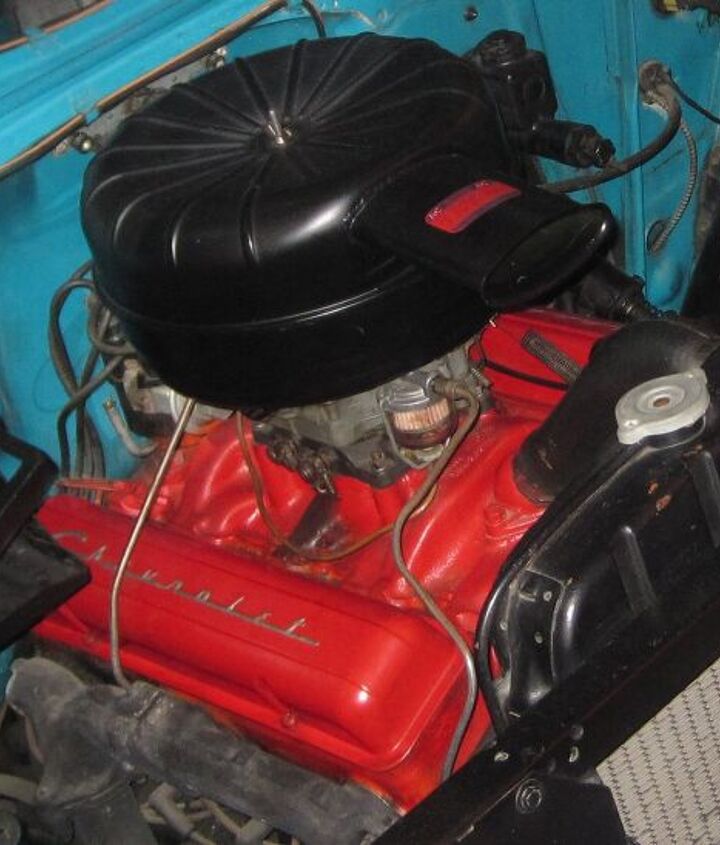

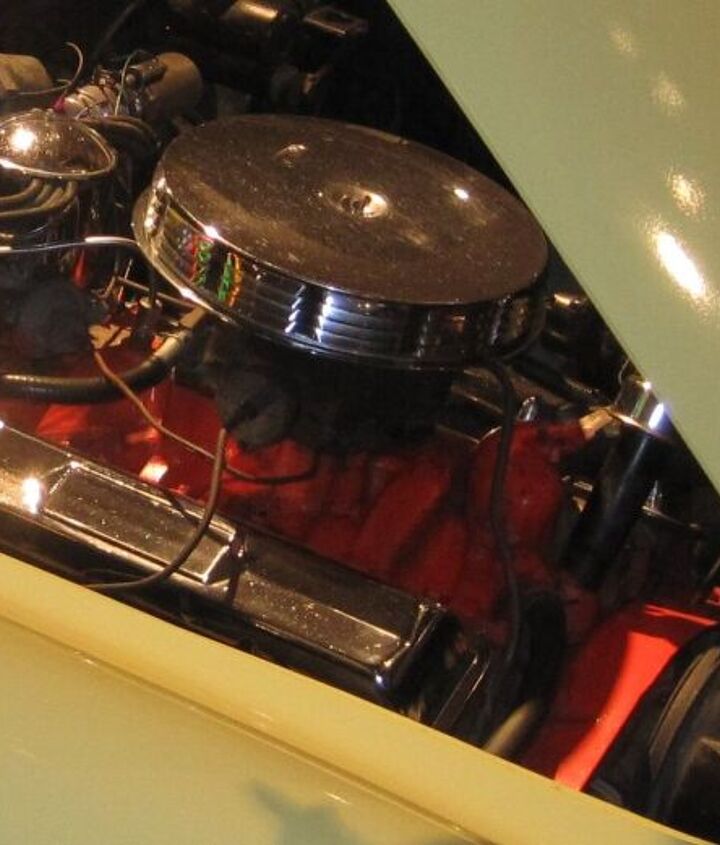

1. 1956 Chevrolet Bel Air Convertible

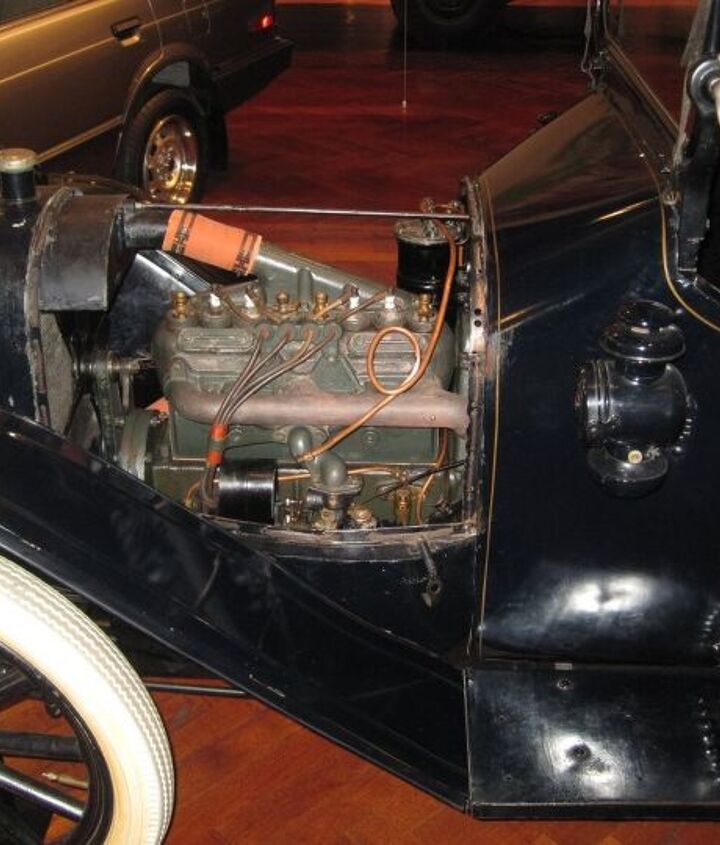

2. 1909 Ford Model T
3. 1924 Essex Coupe

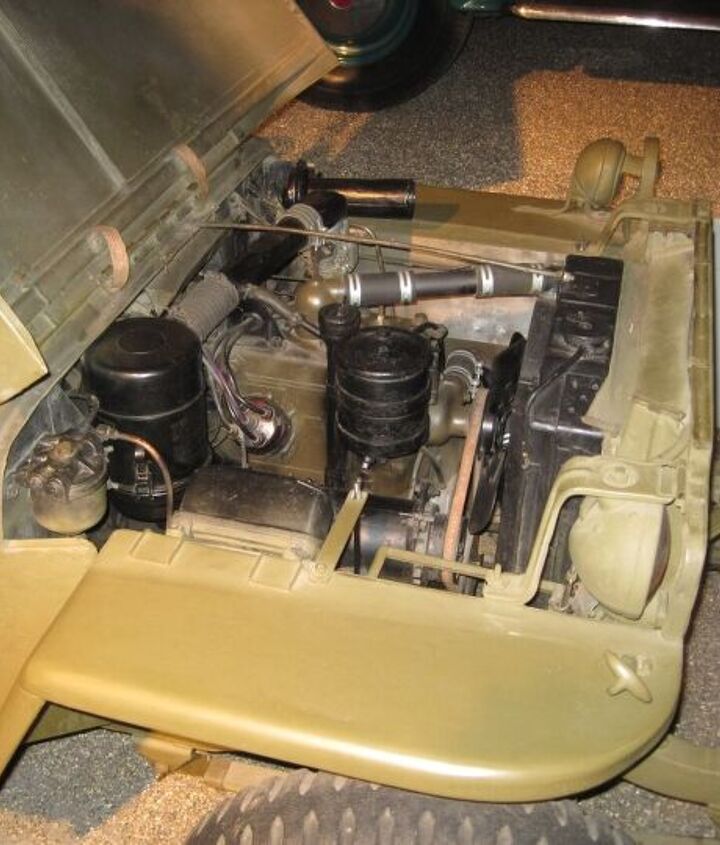

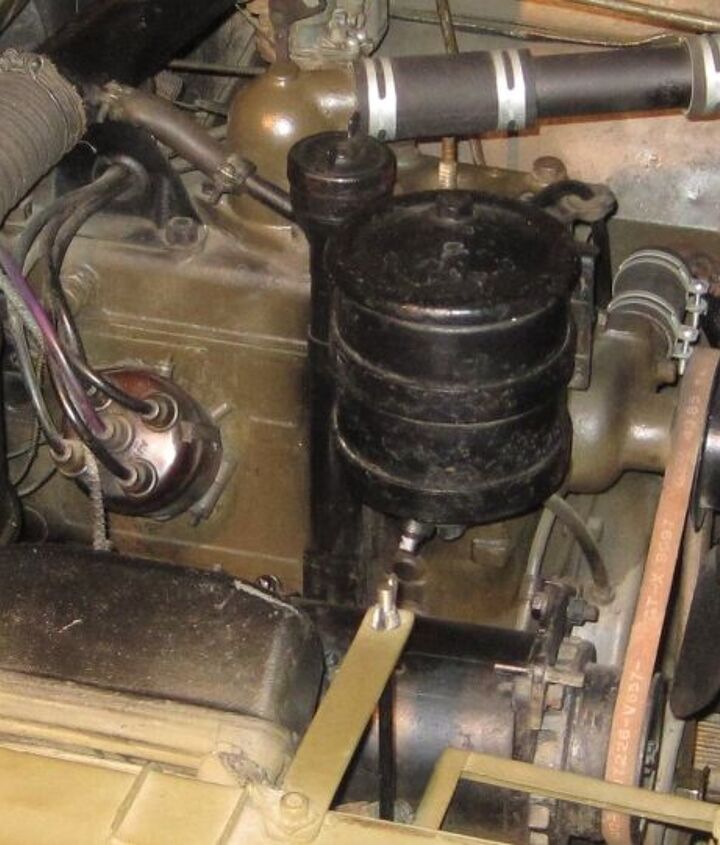

4. 1943 Willys Army Jeep

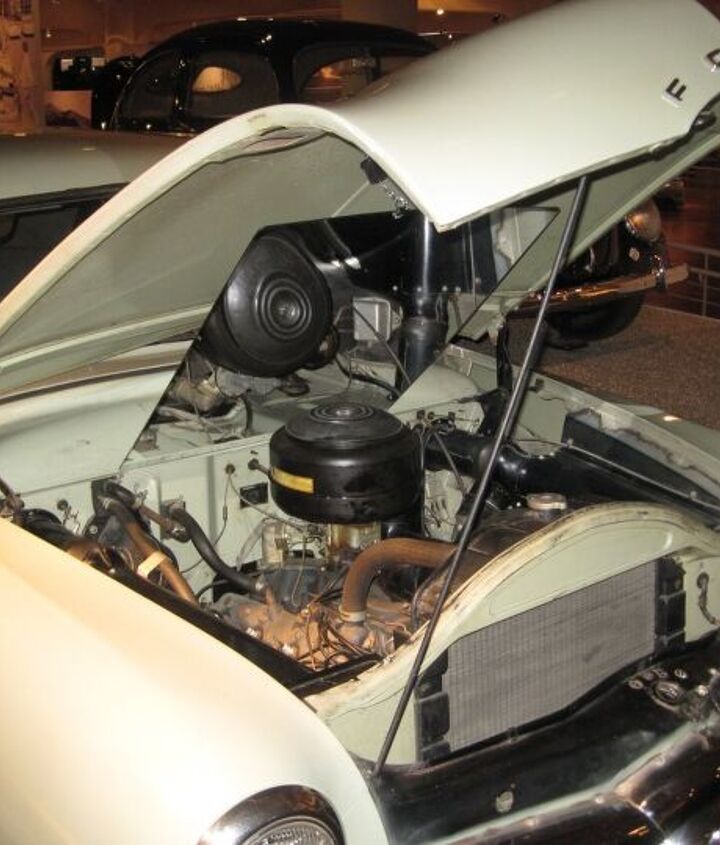

5. 1949 Ford Sedan

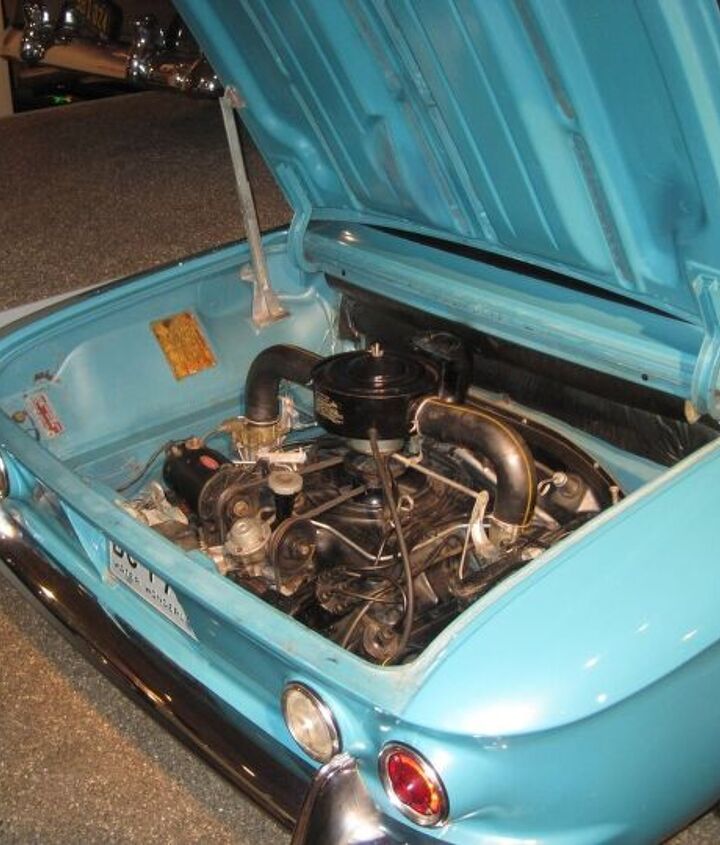

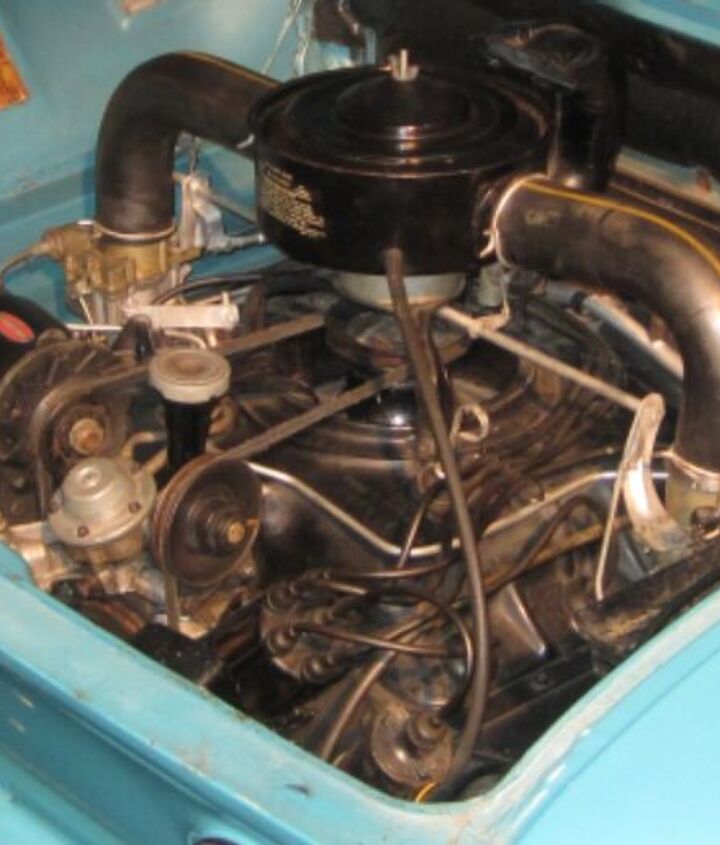

6. 1960 Chevrolet Corvair
7. 1978 Dodge Omni

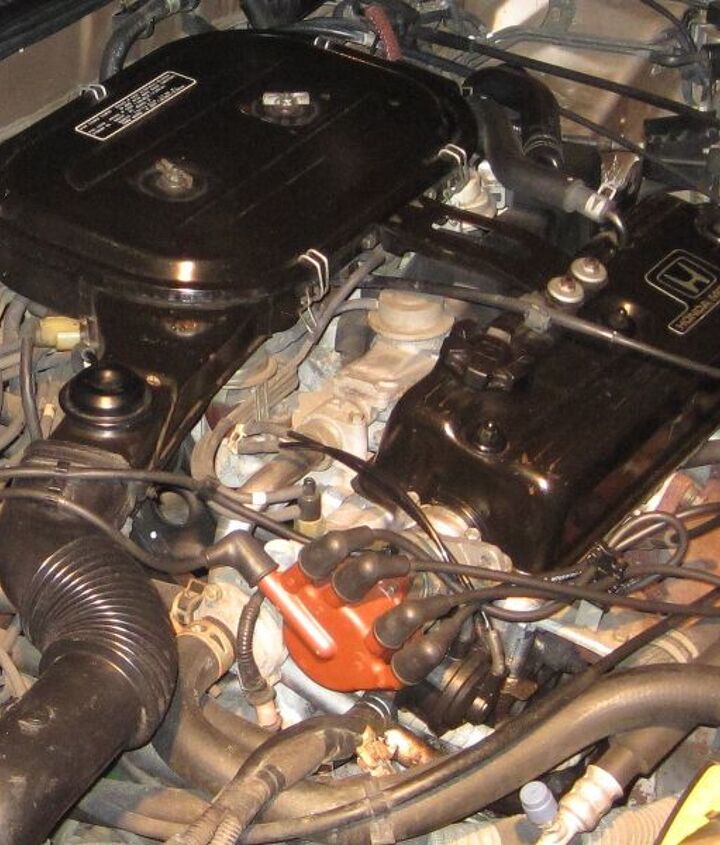

8. 1989 Honda Accord

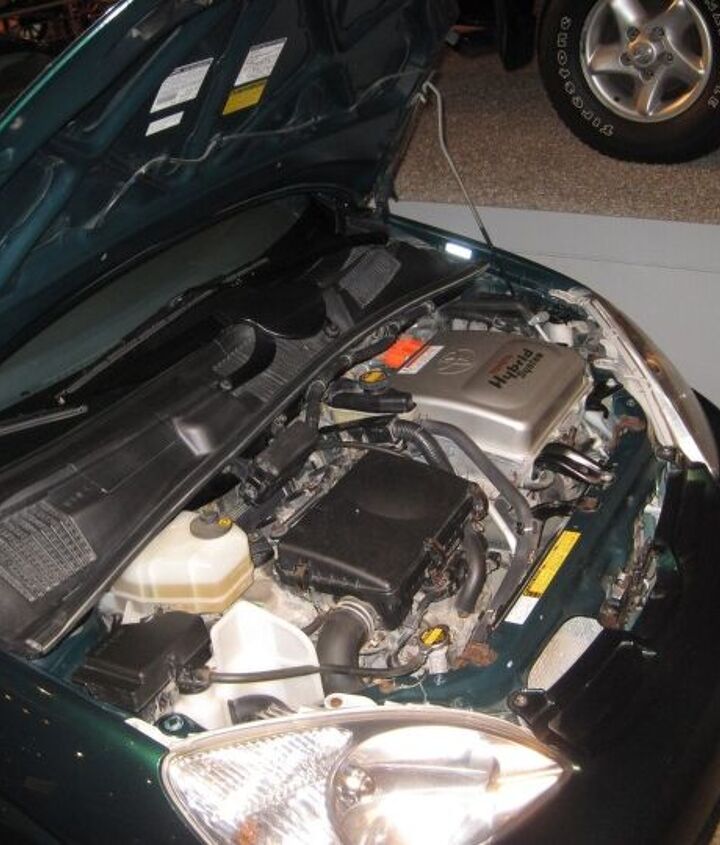

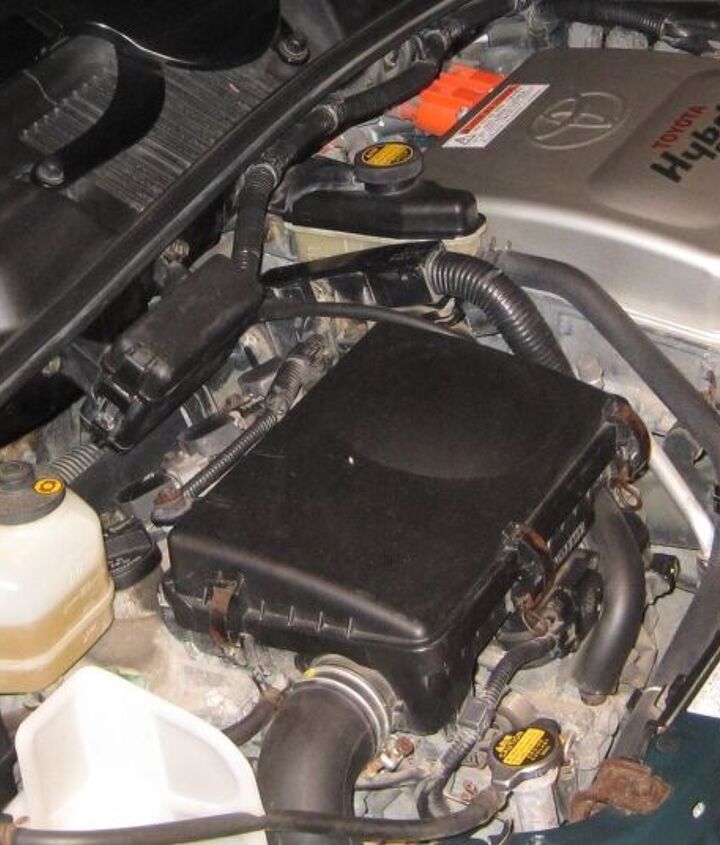

9. 2002 Toyota Prius

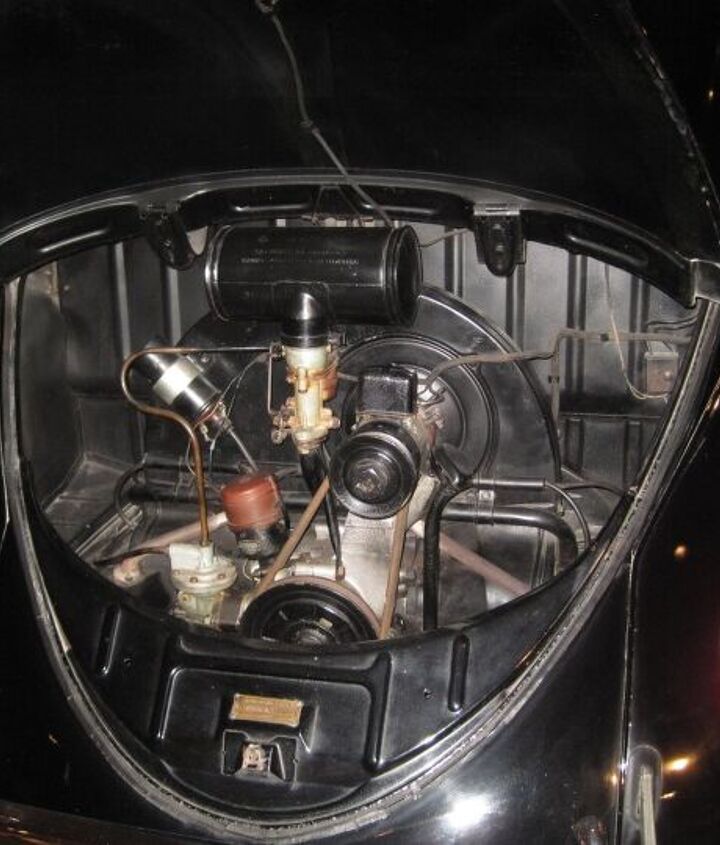

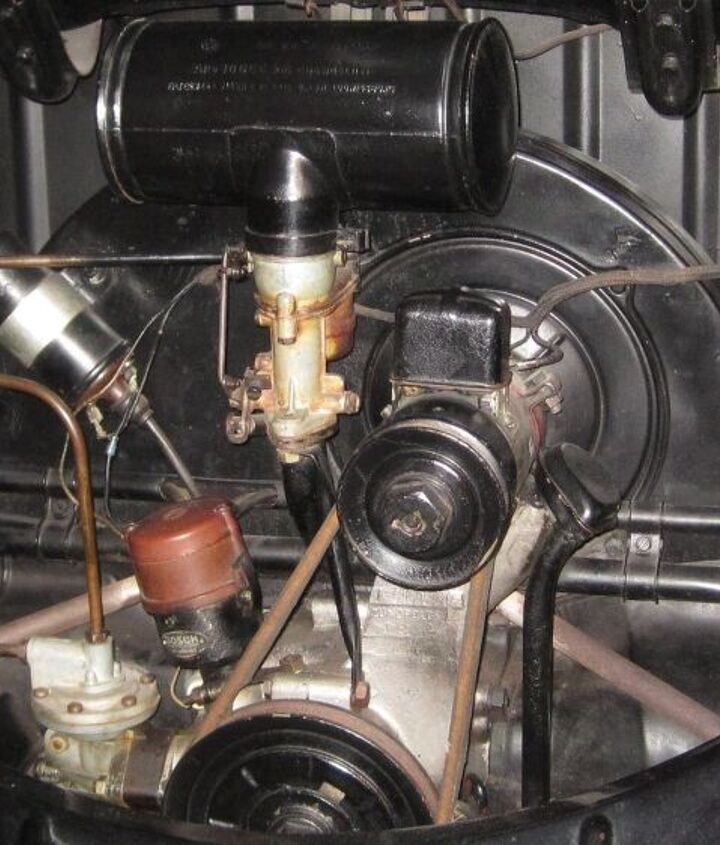

10. 1949 Volkswagen Type I
11. 1914 Ford Model T

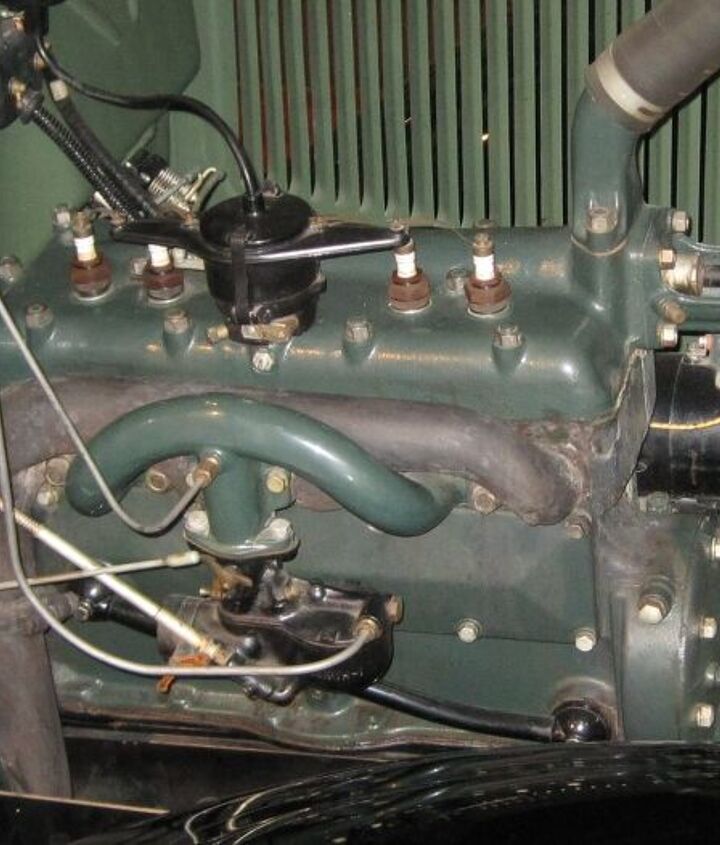

12. 1930 Ford Model A

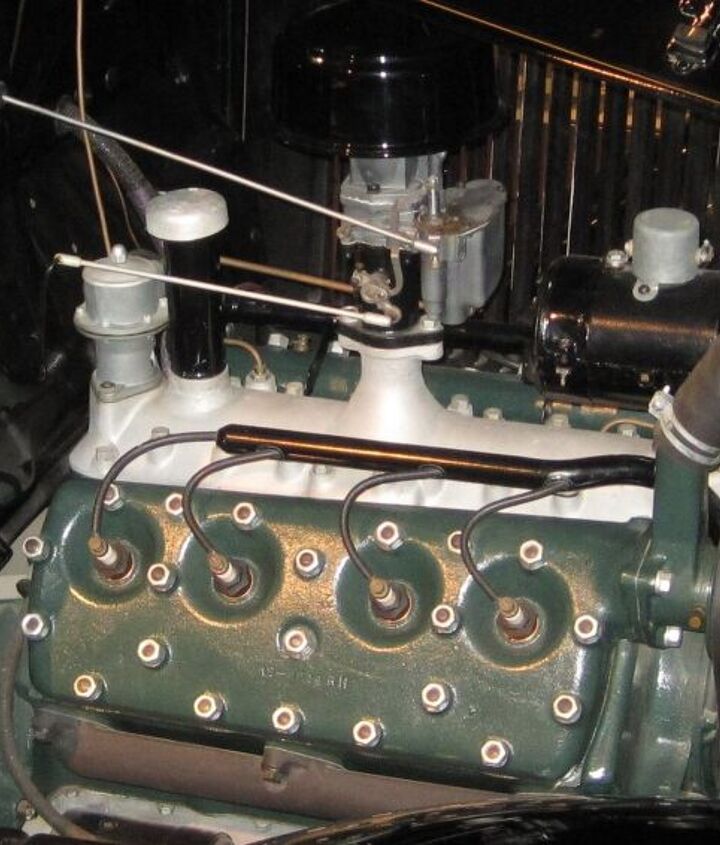

13. 1932 Ford V8

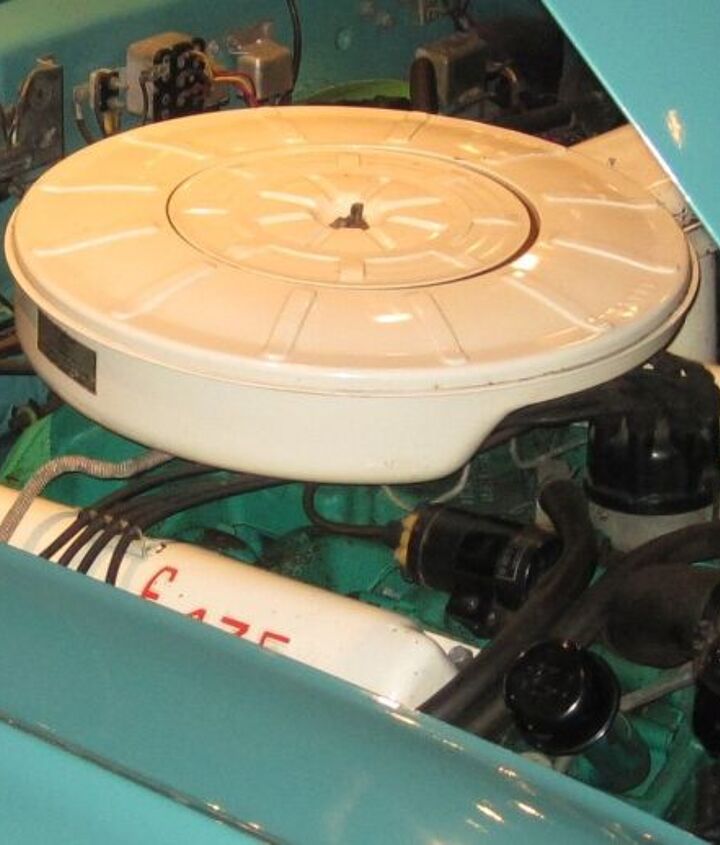

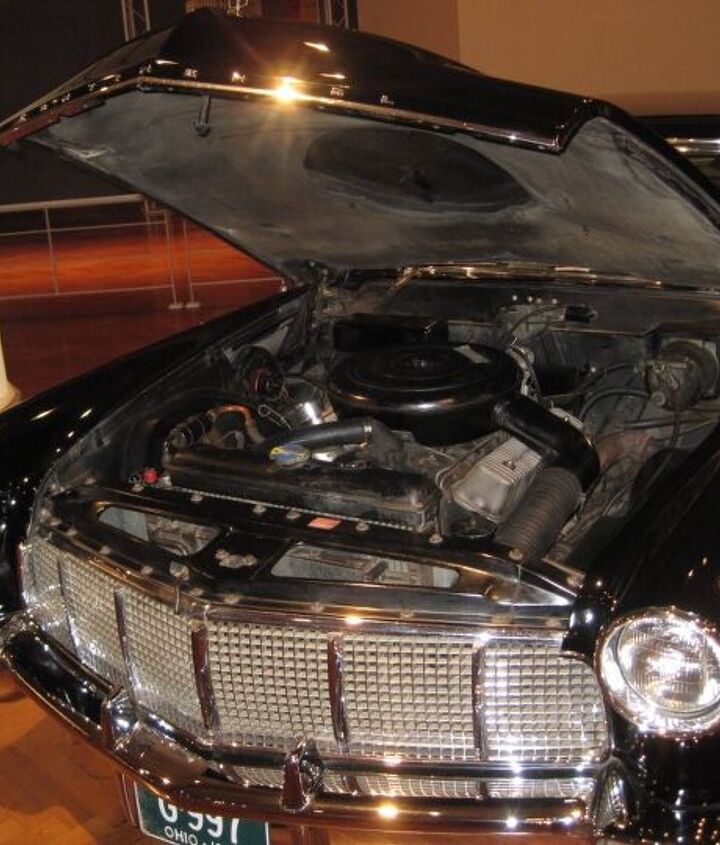

14. 1956 Continental Mark II

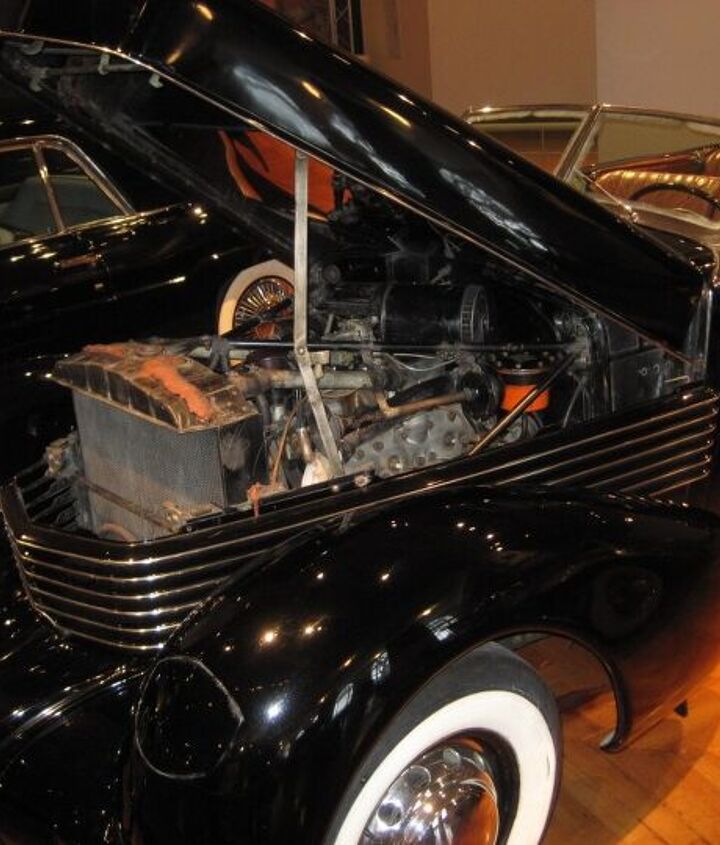

15. 1937 Cord 812

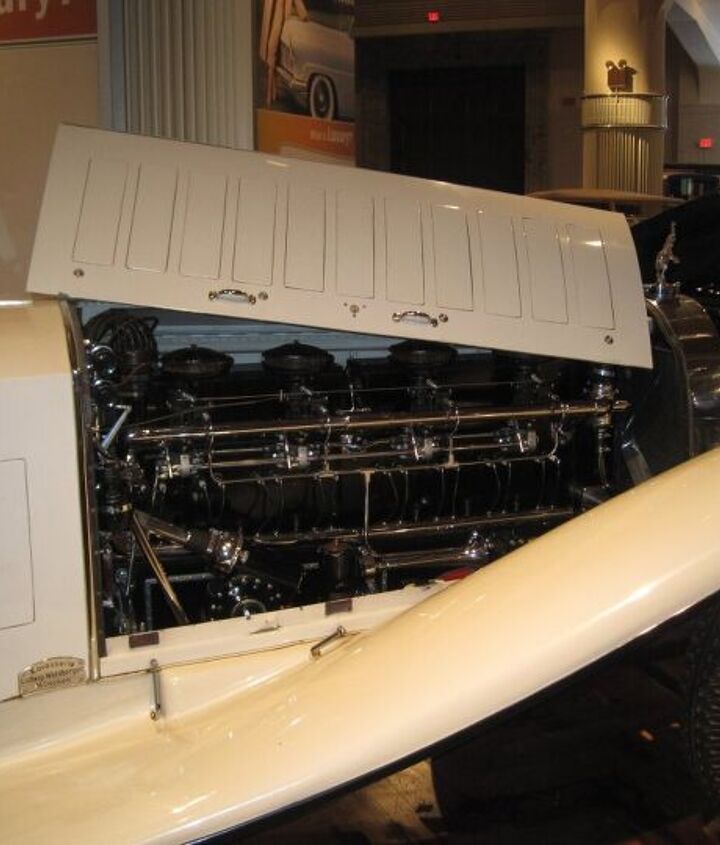

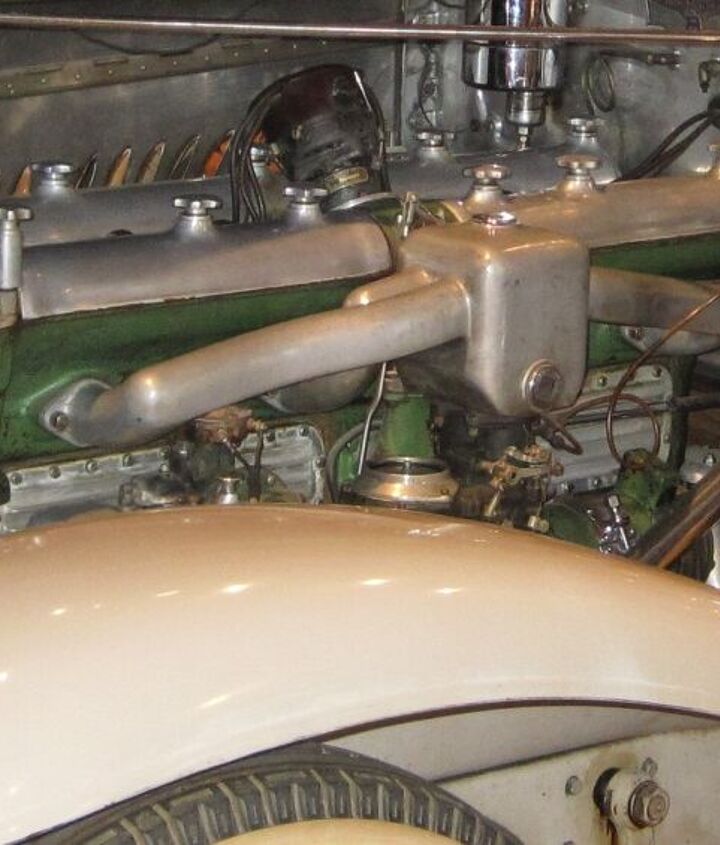

16. Bugatti Royale
17. 1931 Duesenberg Model J
18. 1919 Woods Mobillette

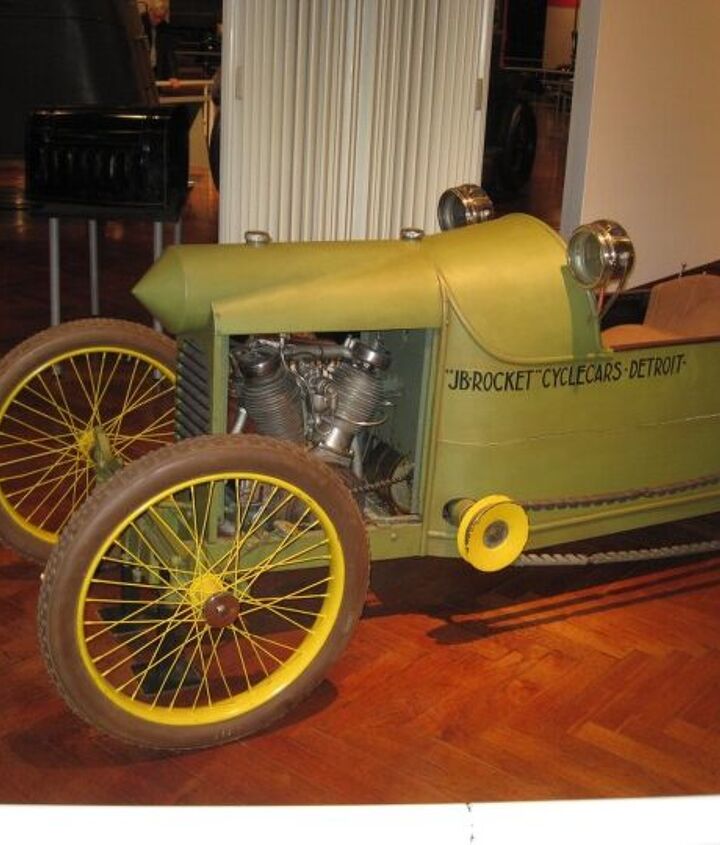

19. JB Rocket Cyclecar
20. 1951 Crosley Hotshot

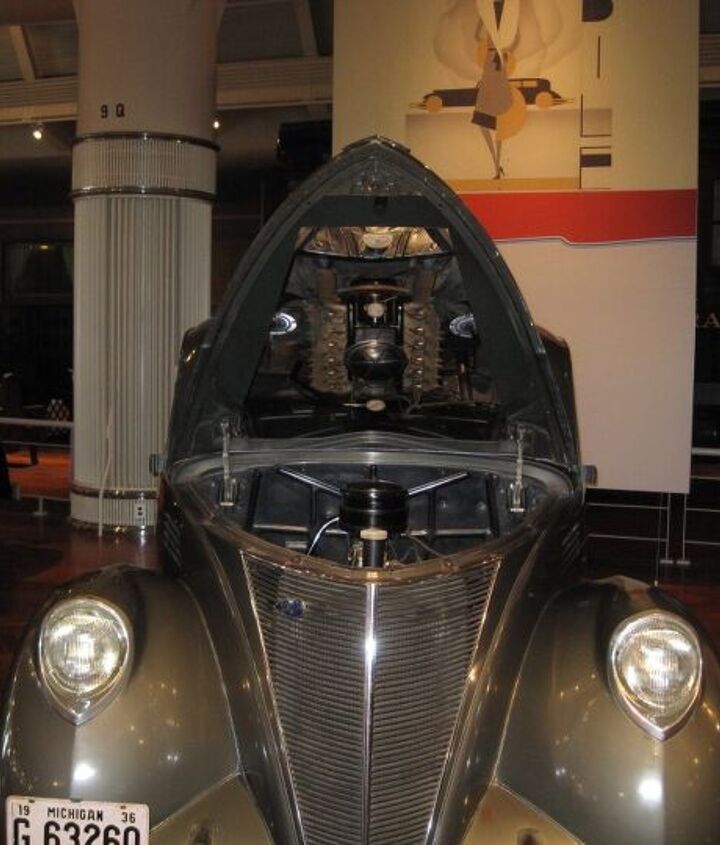

21. 1936 Lincoln Zephyr

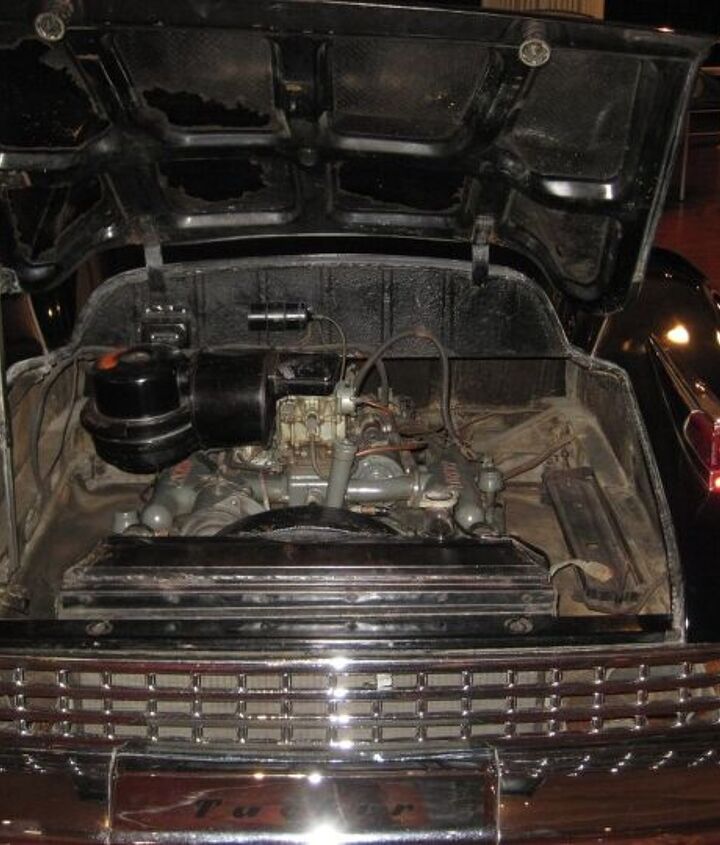

22. 1948 Tucker
23. 1958 Edsel Citation

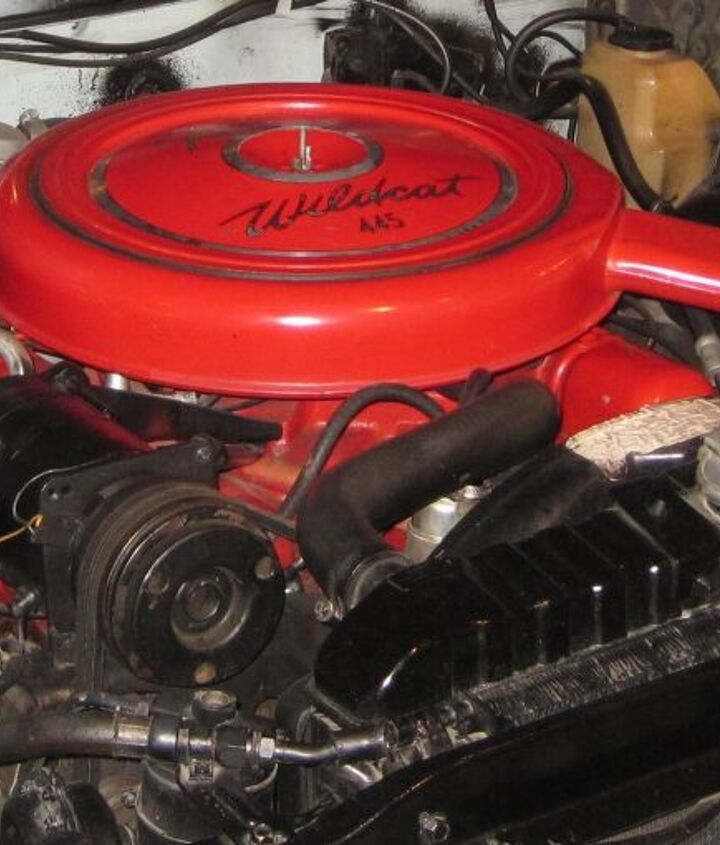

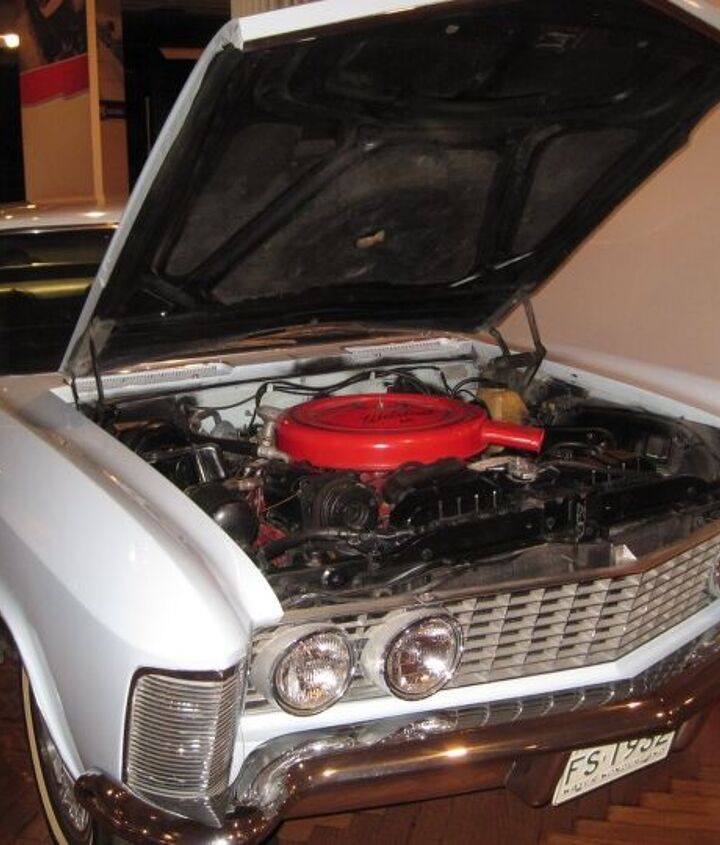

24. 1963 Buick Riviera

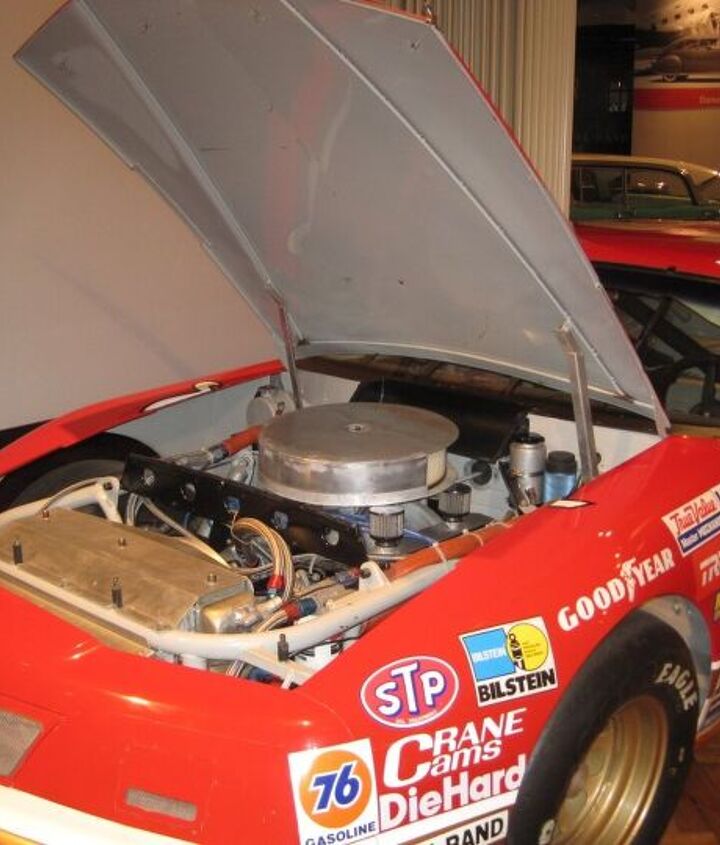

25. 1987 Ford NASCAR

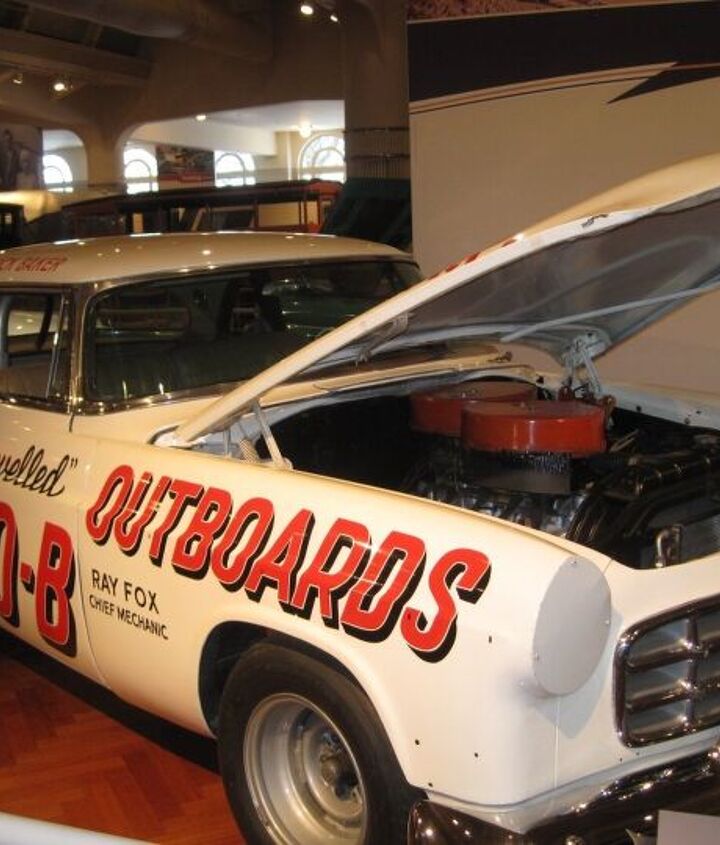

26. 1956 Chrysler 300B NASCAR

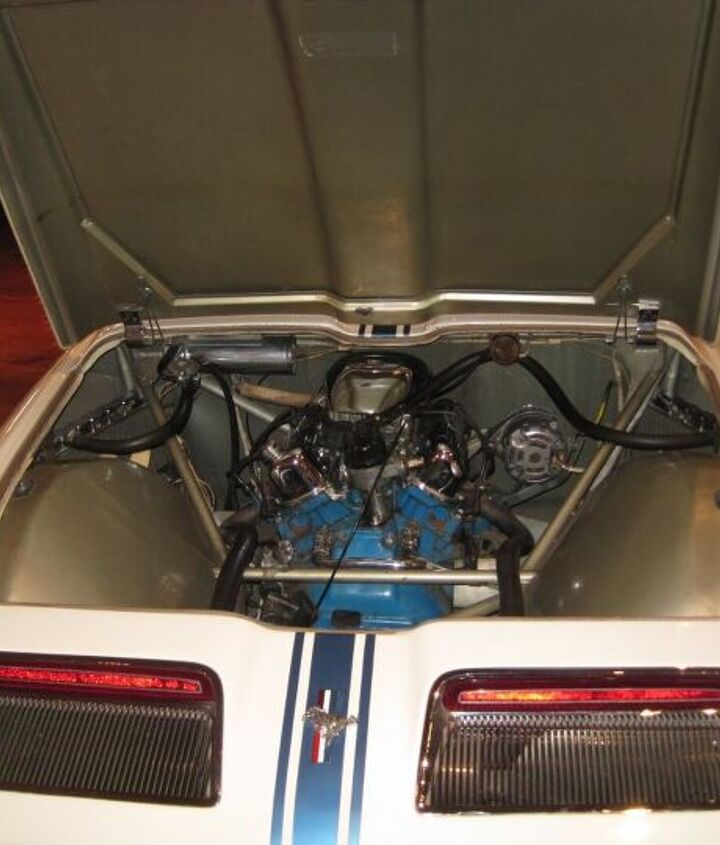

27. 1962 Ford Mustang I Concept

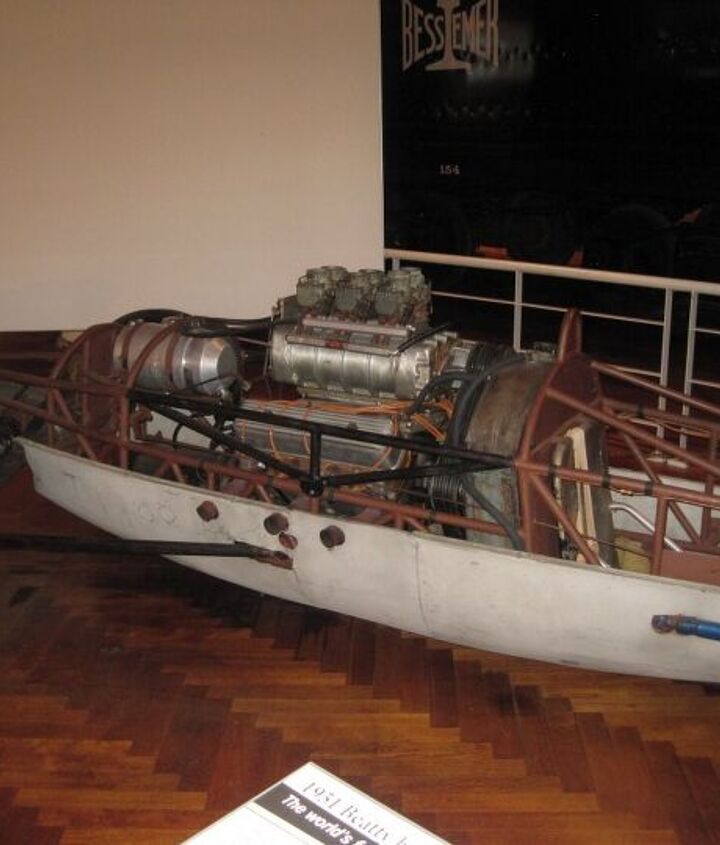

28. 1951 Beatty Belly Tank Land Speed Record

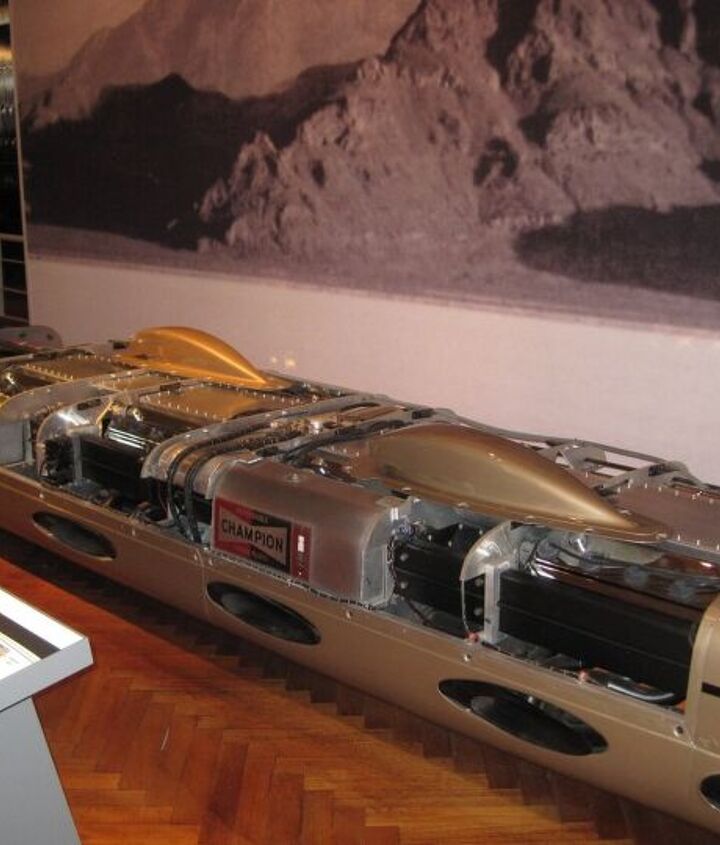

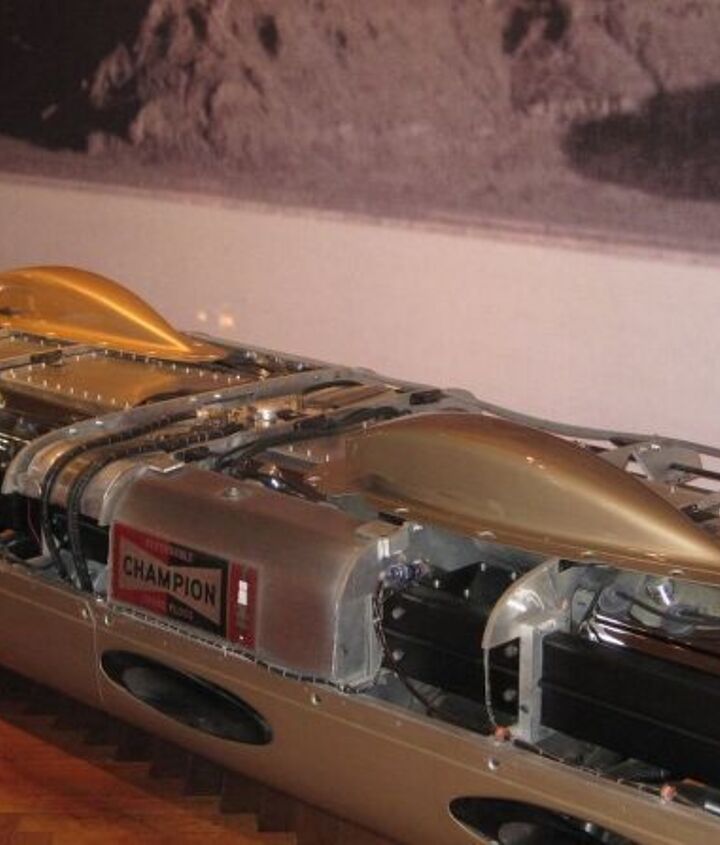

29. 1965 Goldenrod Land Speed Record
30. 1906 Locomobile Old 16

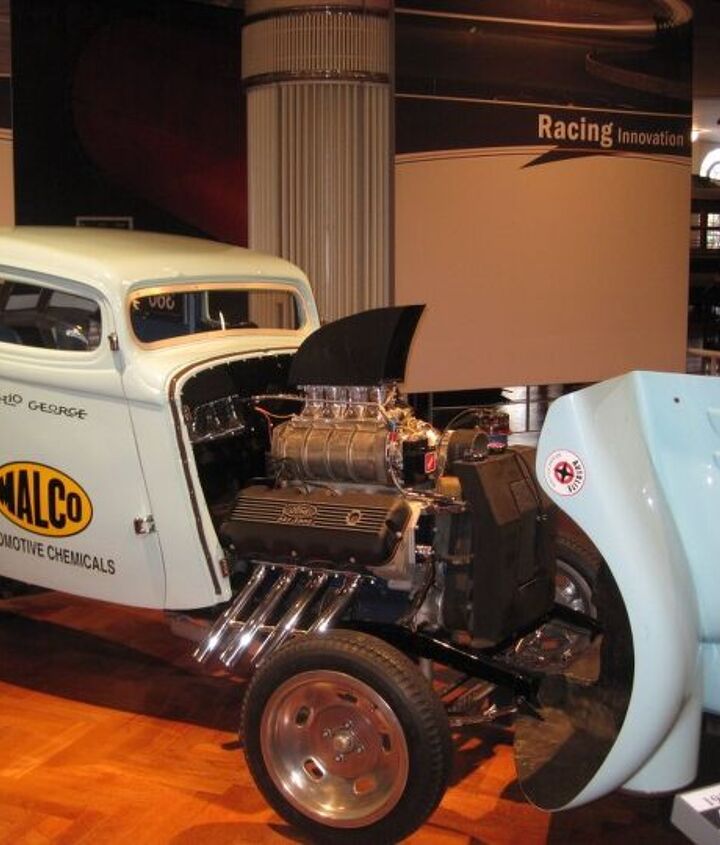

31. 1933 Willys Gasser

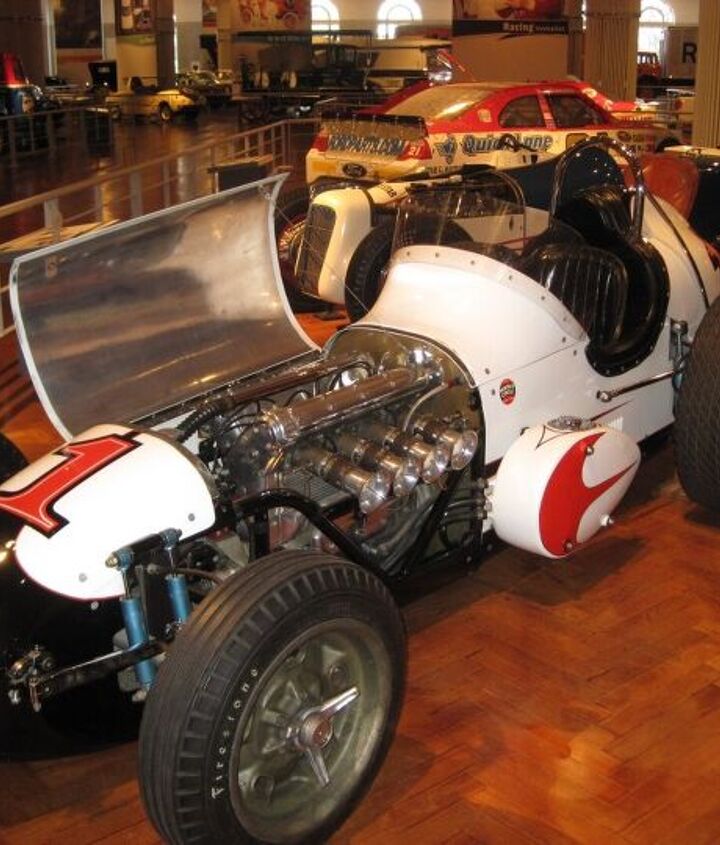

32. 1960 Meskowski Offenhauser Roadster

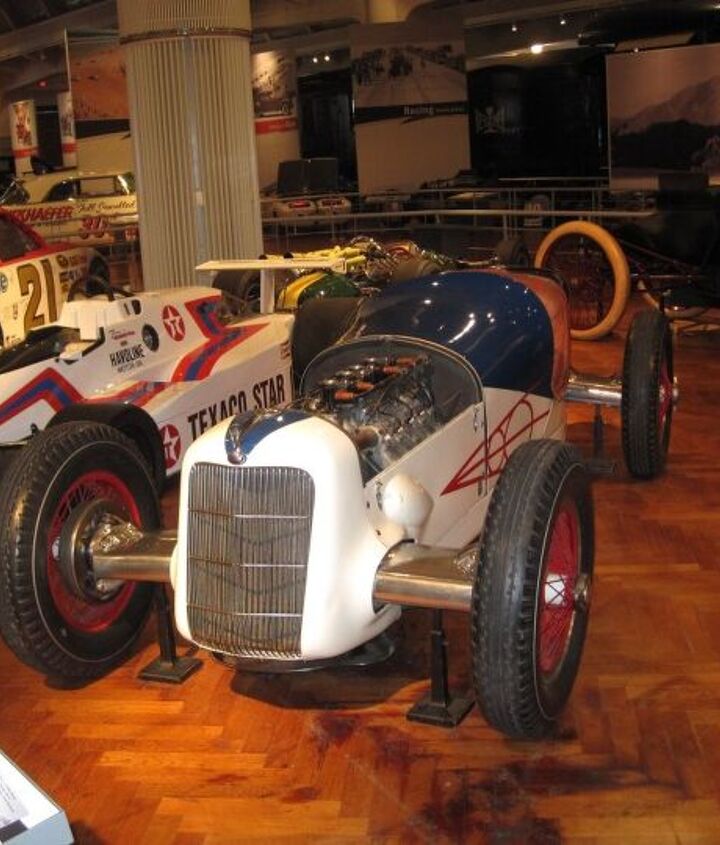

33. 1935 Miller-Ford V8 Indy

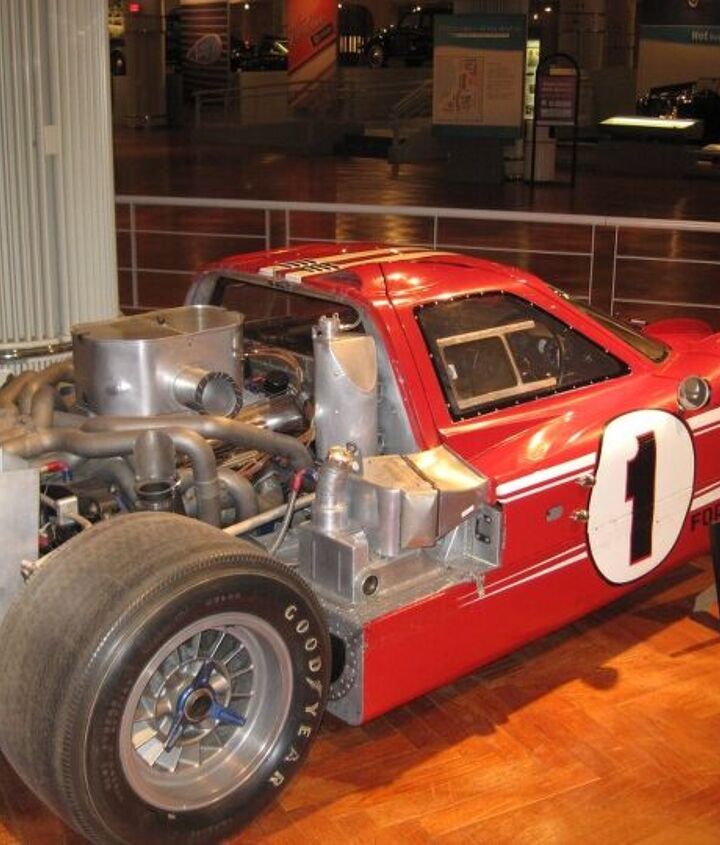

34. 1967 Ford Mk IV LeMans
35. 1919 Ford Model T

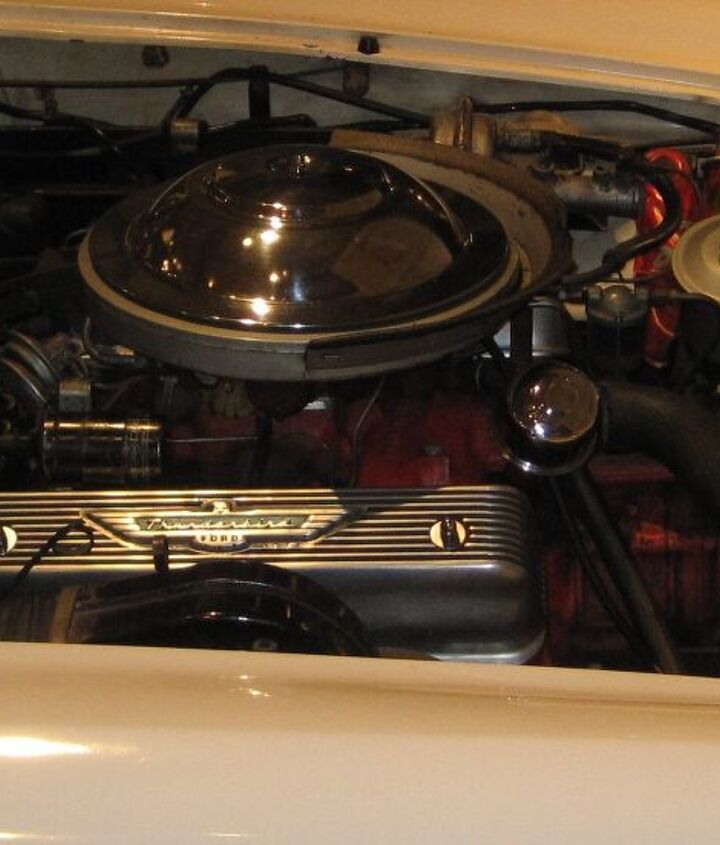

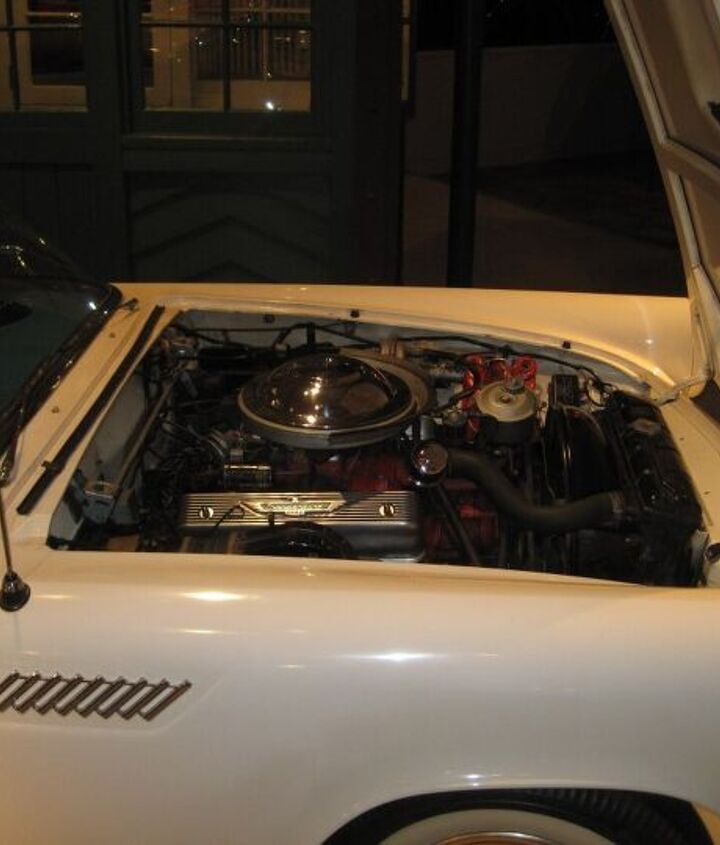

36. 1956 Ford Thunderbird
37. 1986 Ford Taurus
38. 1964 1/2 Ford Mustang
39. 1949 Kaiser Traveler

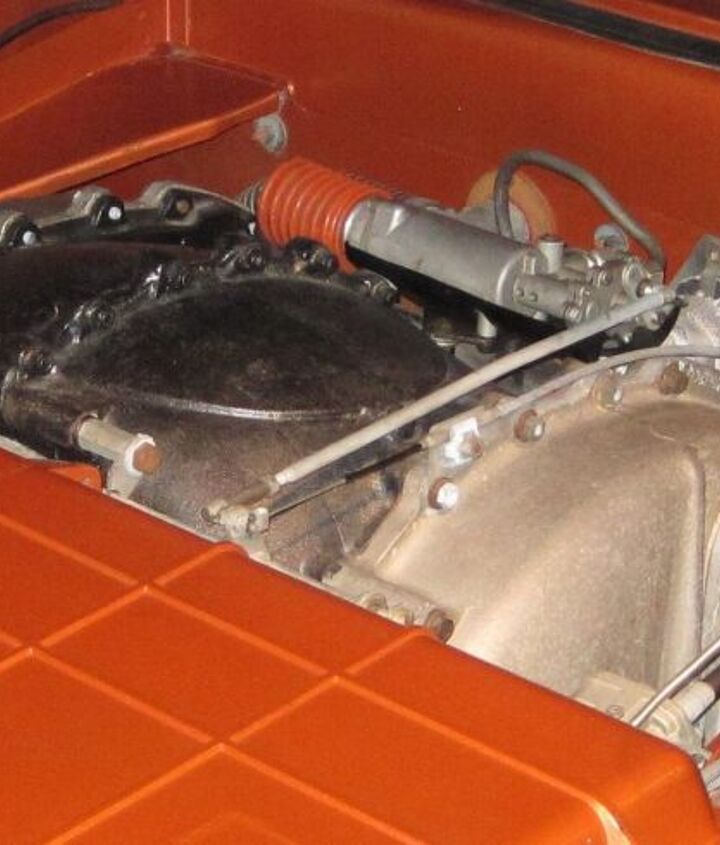

40. 1963 Chrysler Turbine

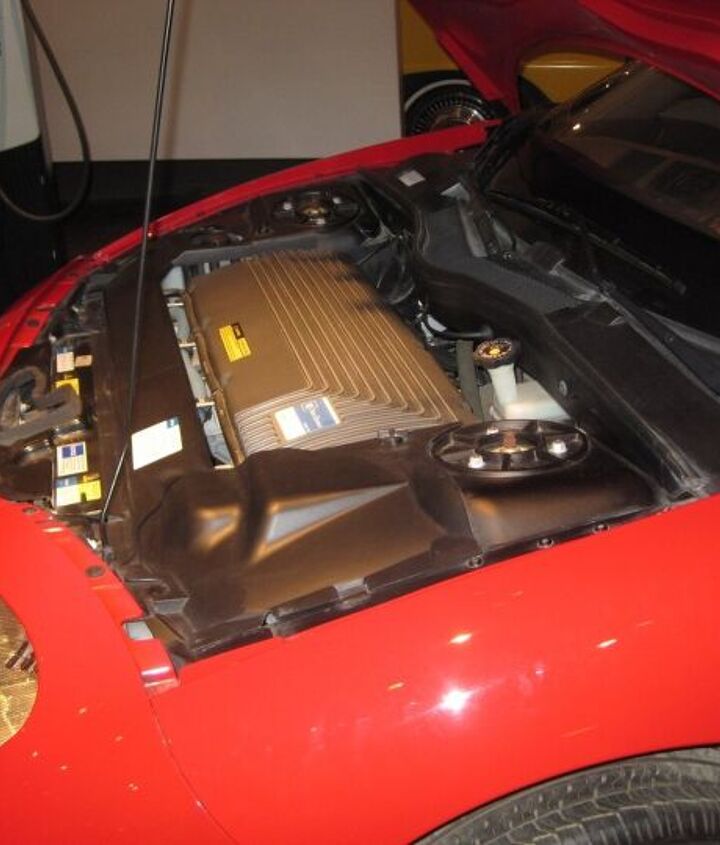

41. 1997 General Motors EV1
42. 1916 Woods Dual Power Hybrid
43. 1906 White Model G Steam
44. 1896 Riker Electric
45. 1955 Chevrolet Corvette

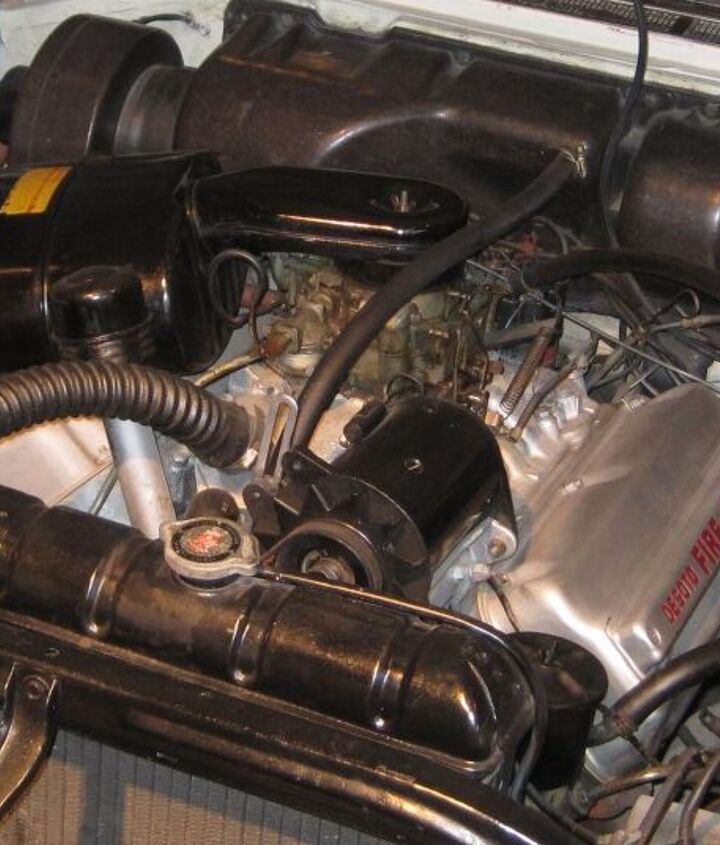

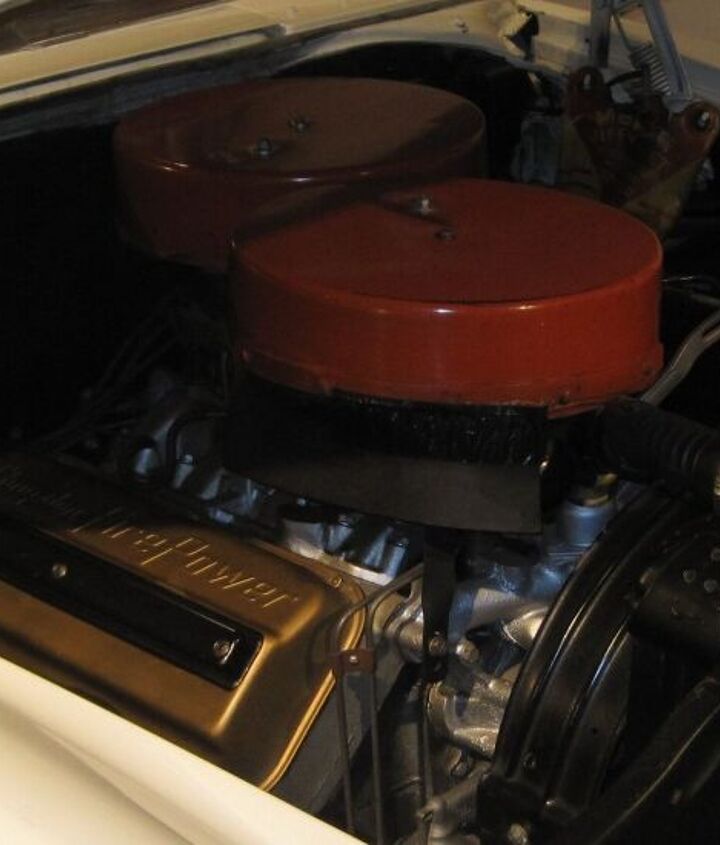

46. 1957 DeSoto Fireflite
47. 1904 Packard Model L
48. 1919 Overland Model 90B
49. 1950 Plymouth Deluxe Suburban Station Wagon

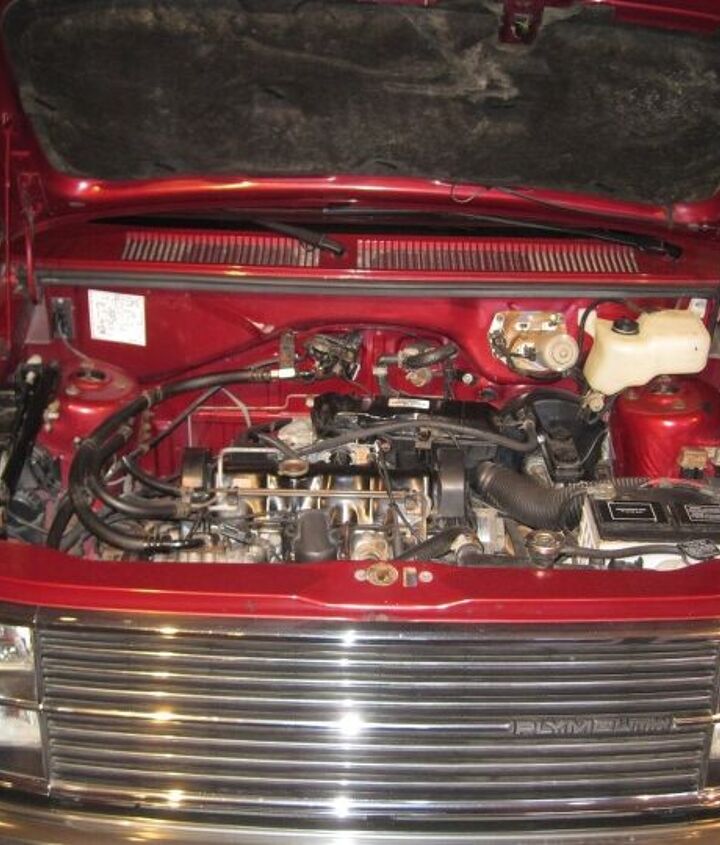

50. 1984 Plymouth Voyager
51. 1968 Mercury Cougar XR7
52. 1949 Studebaker Champion Starlight Coupe
53. 1983 Honda Accord
54. 1927 LaSalle Roadster
55. 1939 Ford Convertible
56. 1903 Oldsmobile

[Images: The author]
