By on October 17, 2011

After painstakingly building a medium-hot 406-cubic-inch small-block engine to replace the Impala’s very tired 350 (motivated by the car’s lackluster quarter-mile performance), 1998 became 1999. Finally the New Engine was ready for swapping.
The old 350, which I’d bought as a long-block from a cheap rebuild shop in L.A., had served me well, but its power output probably wasn’t much over 150 horses and it was starting to smoke under heavy throttle.
While the car was getting a power upgrade, I had some other plans for it. The Pontiac Rally wheels, which I’d had in place since my 1991 Generation X couch-surfing expeditions, would be replaced by something more in line with my original artistic vision for the car.

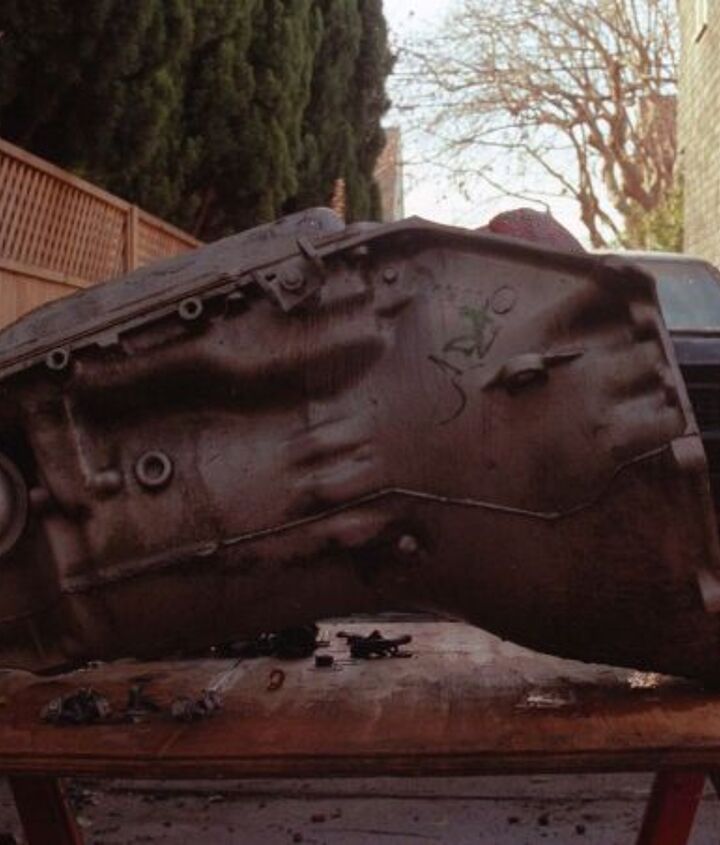

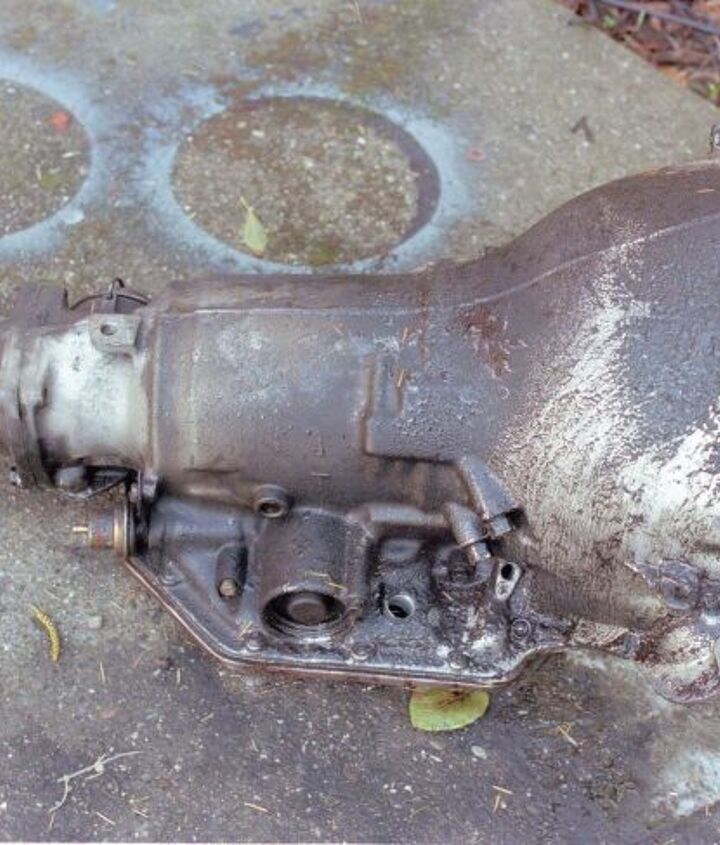

There was no way the worn-out Turbo-Hydramatic 350 transmission I’d installed in 1990 would survive more than a couple of pedal-to-metal beatings behind the new engine (it was slipping pretty badly on the second-third shift), so out it came.
I know how to swap transmissions, but there be monsters inside them— I don’t have the faintest idea how to go about messing with the deep innards of an automatic transmission, and I wasn’t about to start learning at this point. I thought about buying a TH350 rebuilt with drag racing in mind, but the price tag on such a transmission was sort of a budget-nuker. Instead, I went to Pick Your Part on Half Price Day and bought several maybe-recently-rebuilt-looking TH350s from six-cylinder Novas for $40 apiece. That way, I figured, I could just keep blowing up transmissions and swapping in “new” ones as needed. Hey, a transmission swap in a 60s GM B Body takes about 20 minutes, even at my slow wrenching pace.

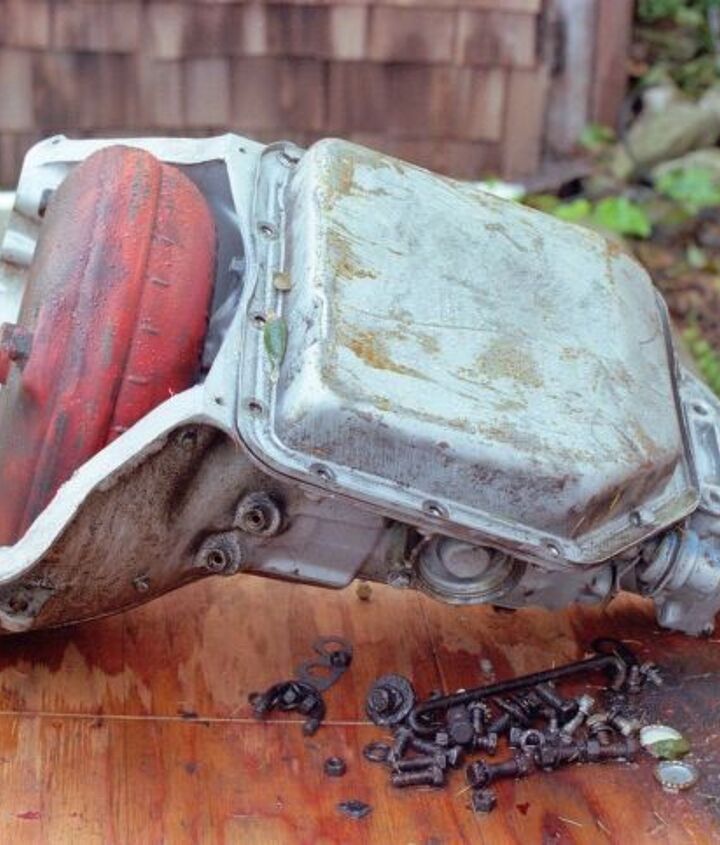

I picked up a B&M Shift Improver Kit and installed it in the first of my junkyard transmissions, choosing the “Stage 2″ U-joint-bustin’ options.
I had a patriotic Lydia Lunch portrait watching over this process. If you’re going to have a pinup, do it right!

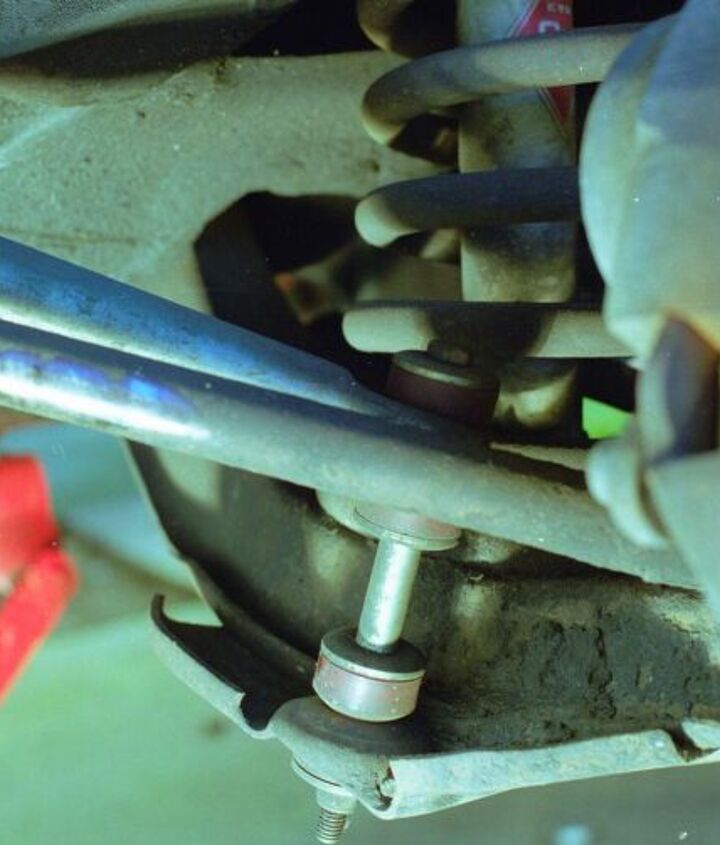

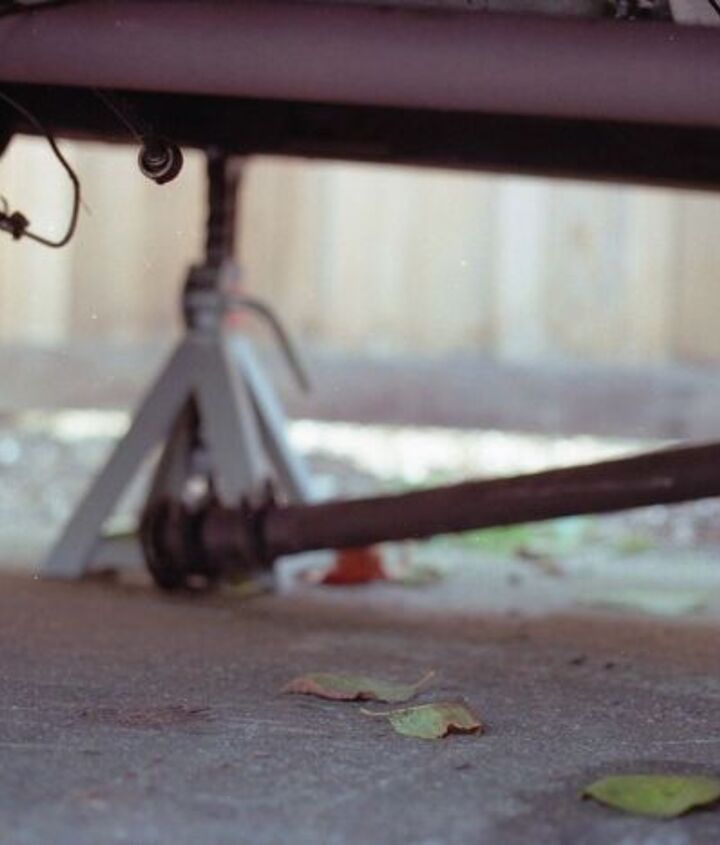

I’d installed an Addco sway bar in the front a couple years earlier, thanks to my Year One employee discount. I’d bought a rear bar at the same time, but installation required drilling honkin’ big holes in the rear control arms and I didn’t get around to doing that job until it was time for the new engine to be installed. I figured the rear bar would help limit wheel-lifting tire spin when launching at the drag strip, plus make it easier to spin out when getting on the throttle in turns.

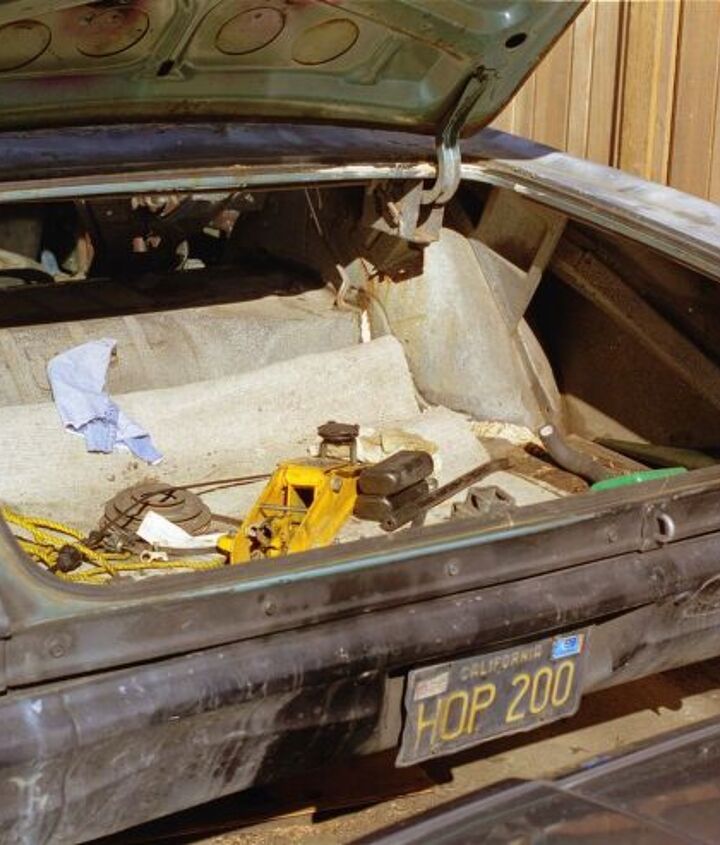

Unfortunately, I didn’t think to photograph the process of mounting a rear sway bar on my Impala, so you’ll just have to imagine the sight of a 1/2″ drill bit chewing through big-ass control arms.

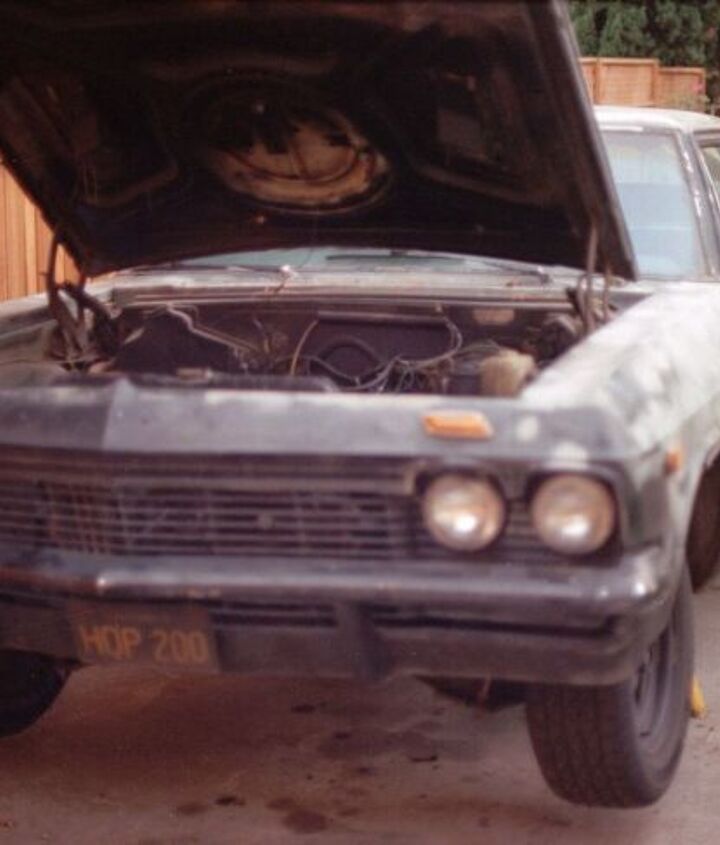

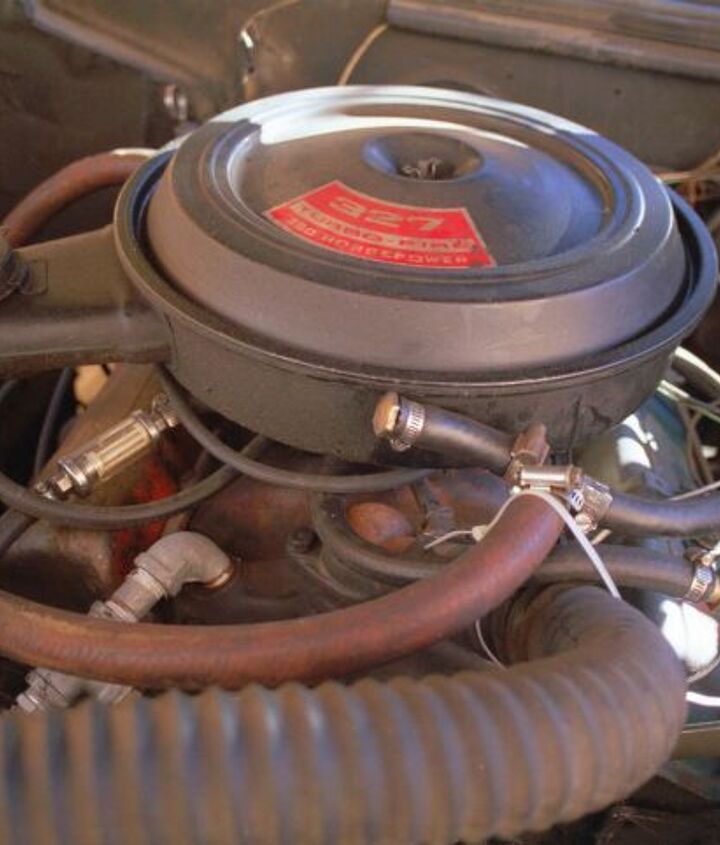

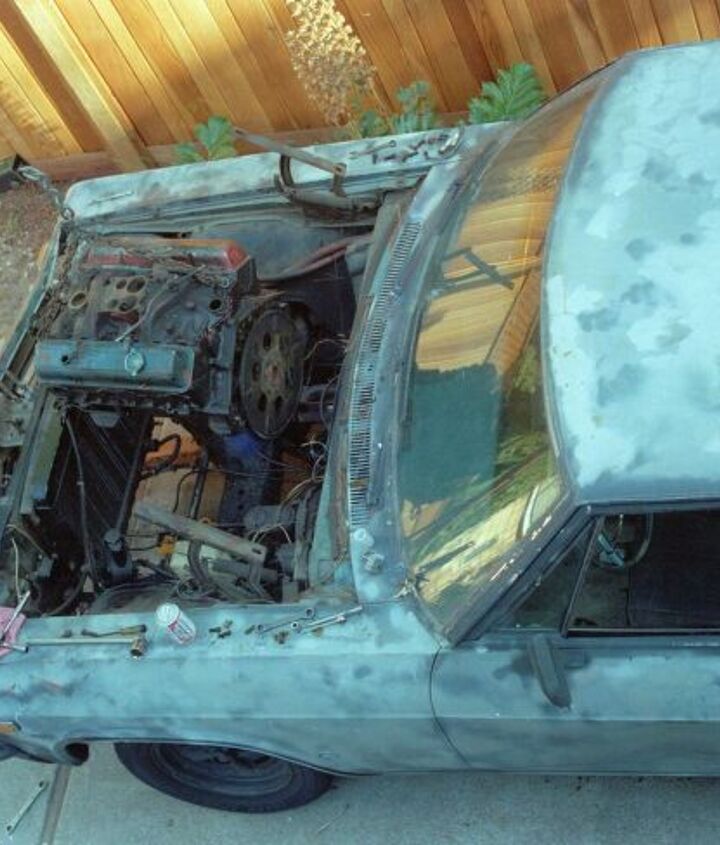

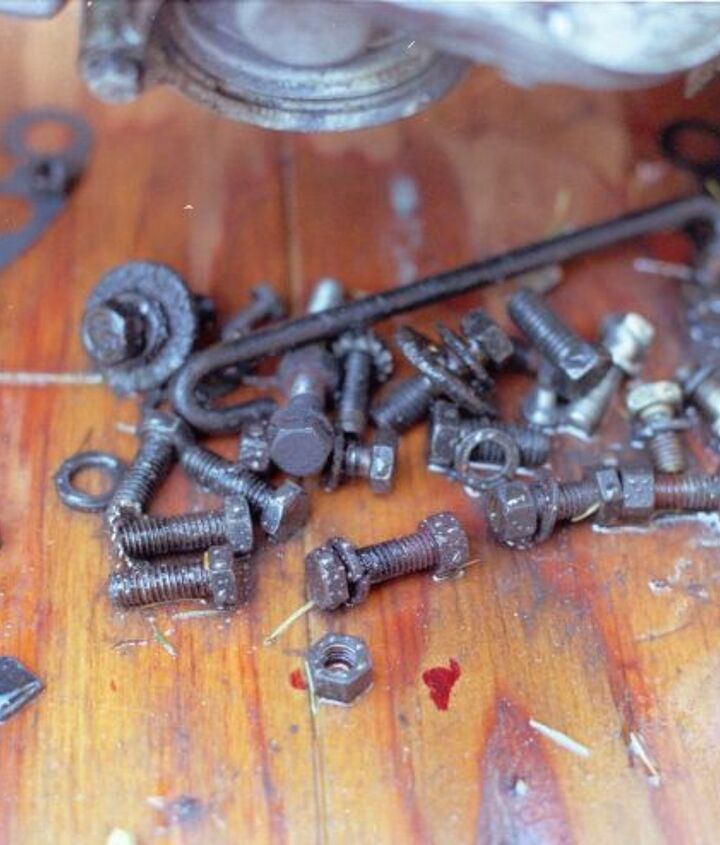

I removed the carburetor, disconnected the headers, tied the power-steering pump out of the way, and all the other little jobs you do when pulling an engine. Hook up the chain, start lifting!

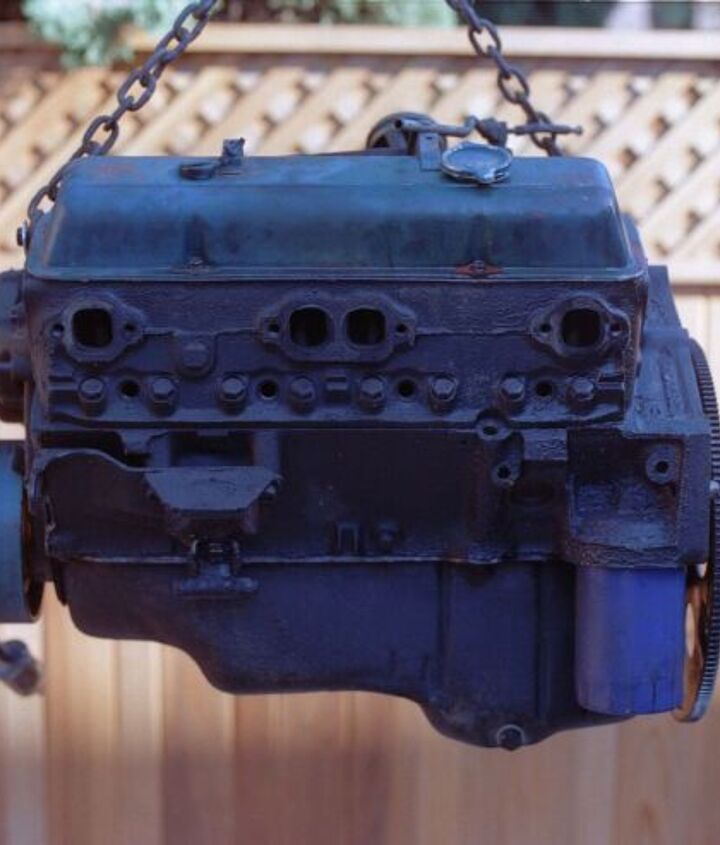

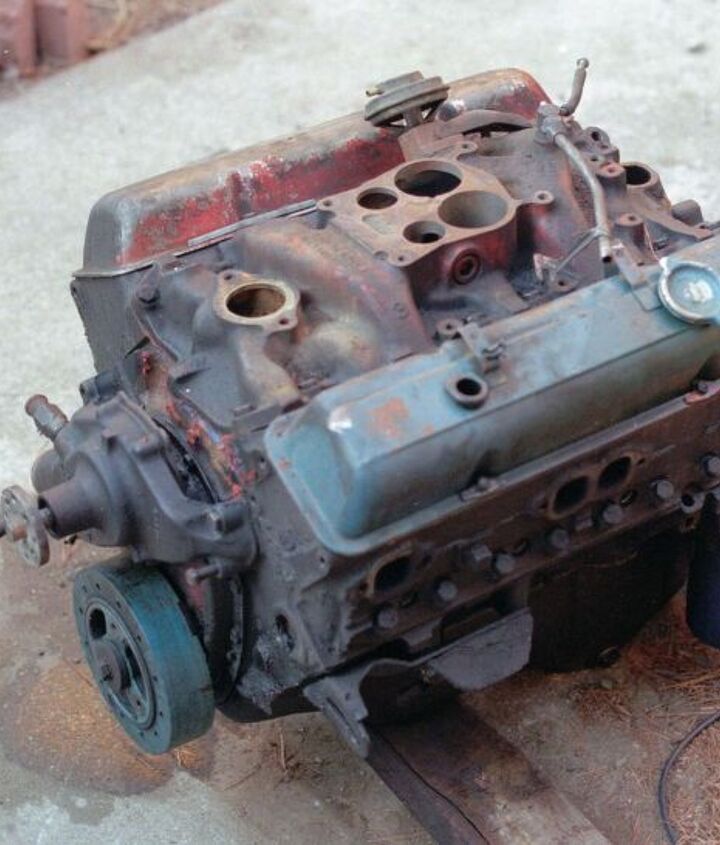

More than eight years of service from this engine, but it was time to go.

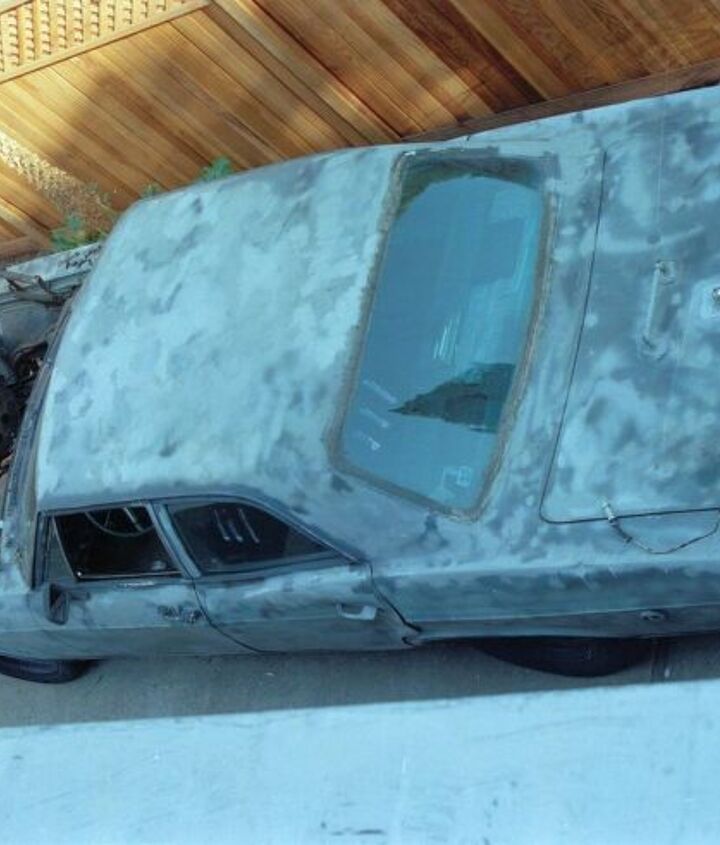

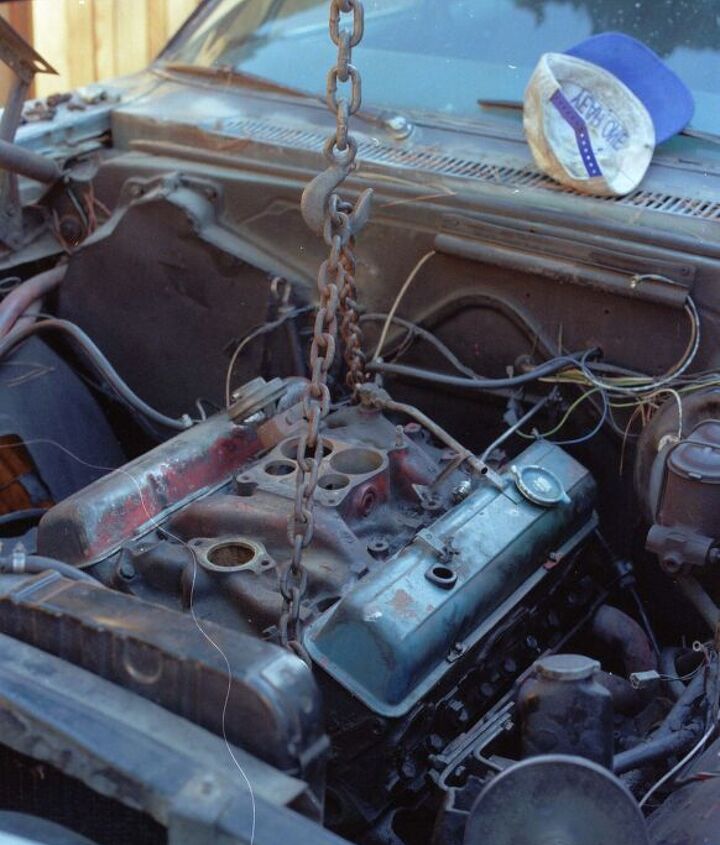

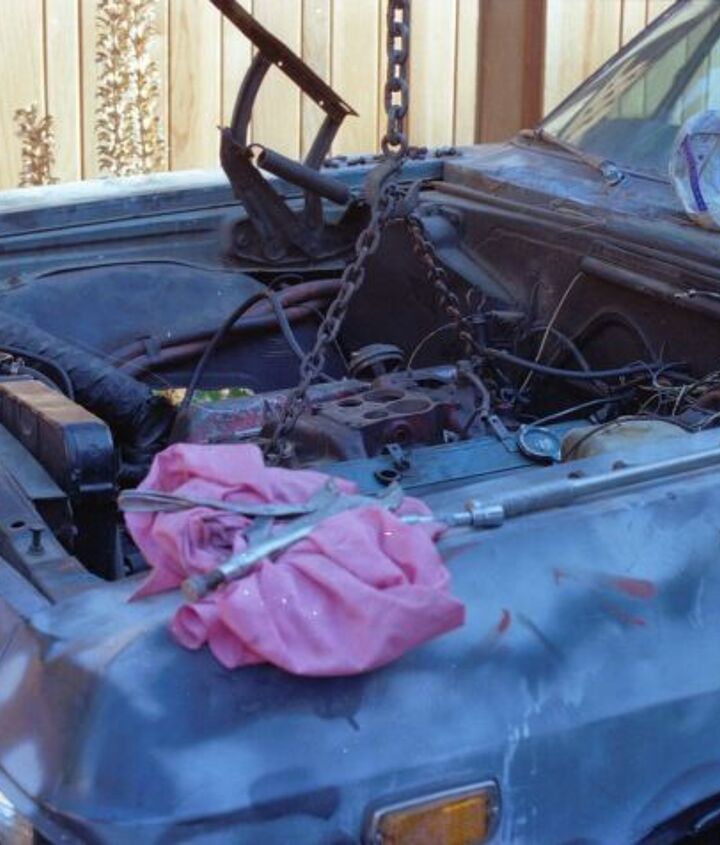

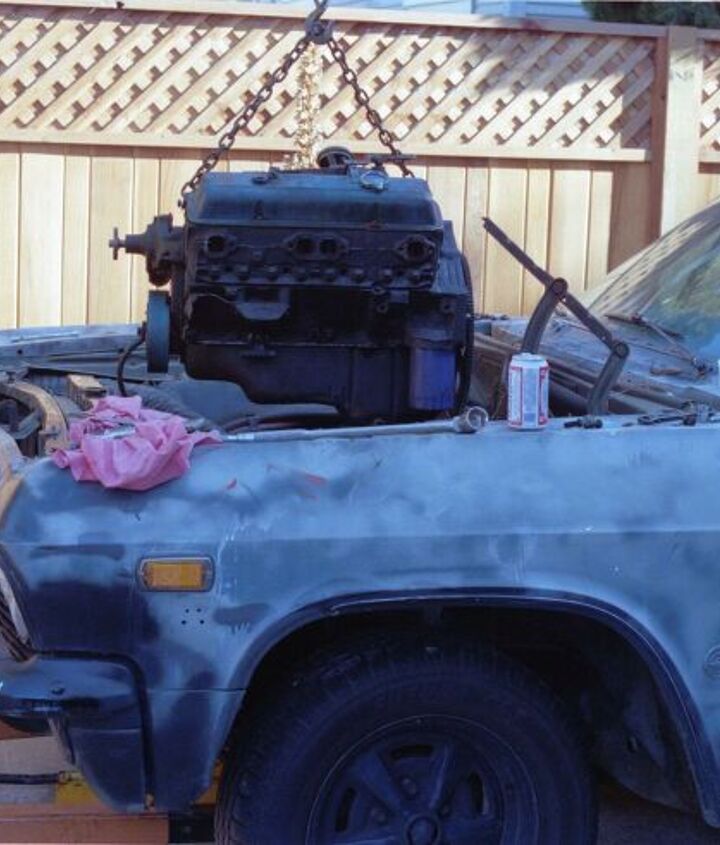

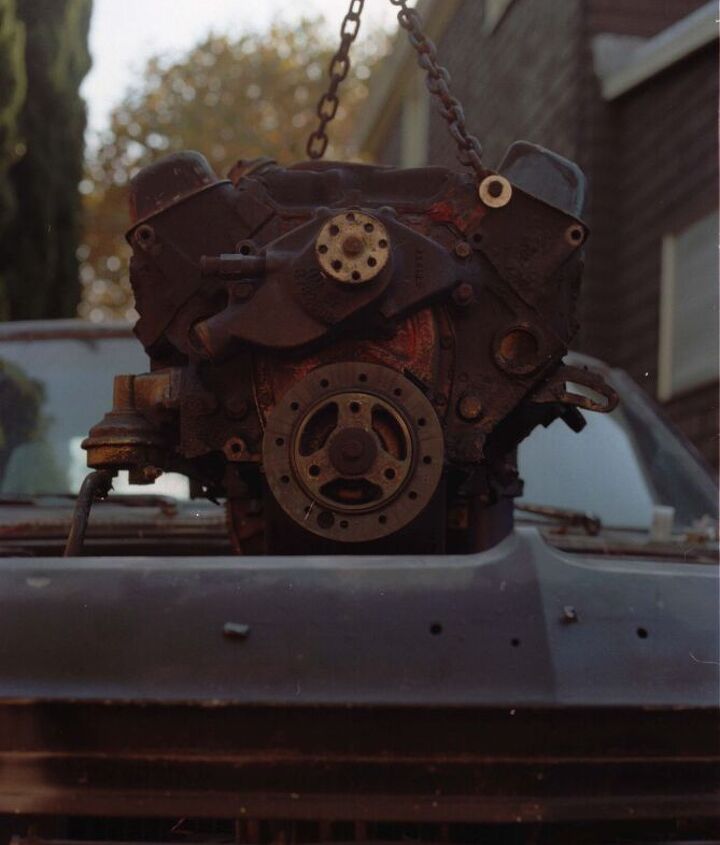

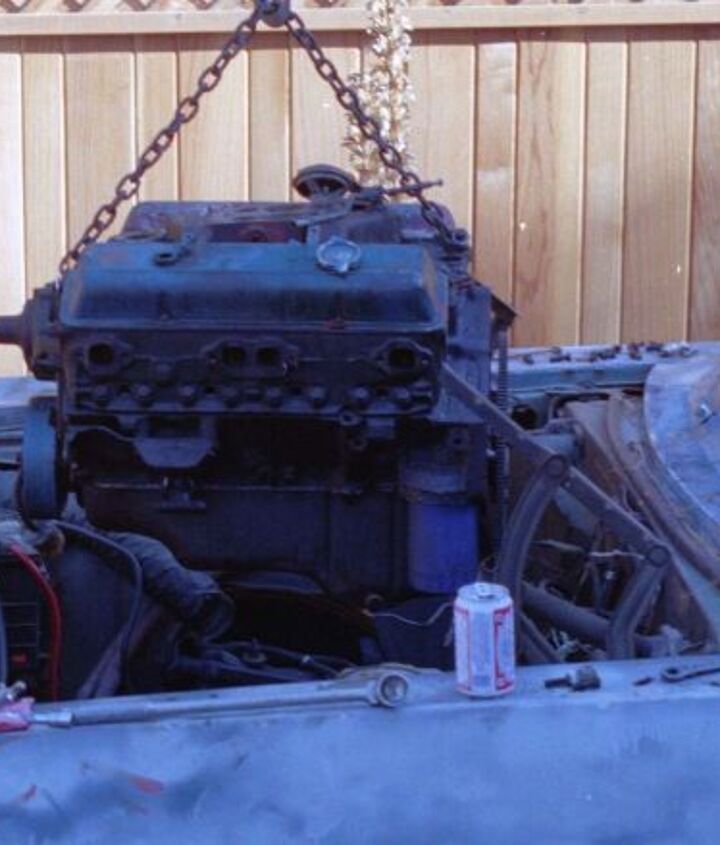

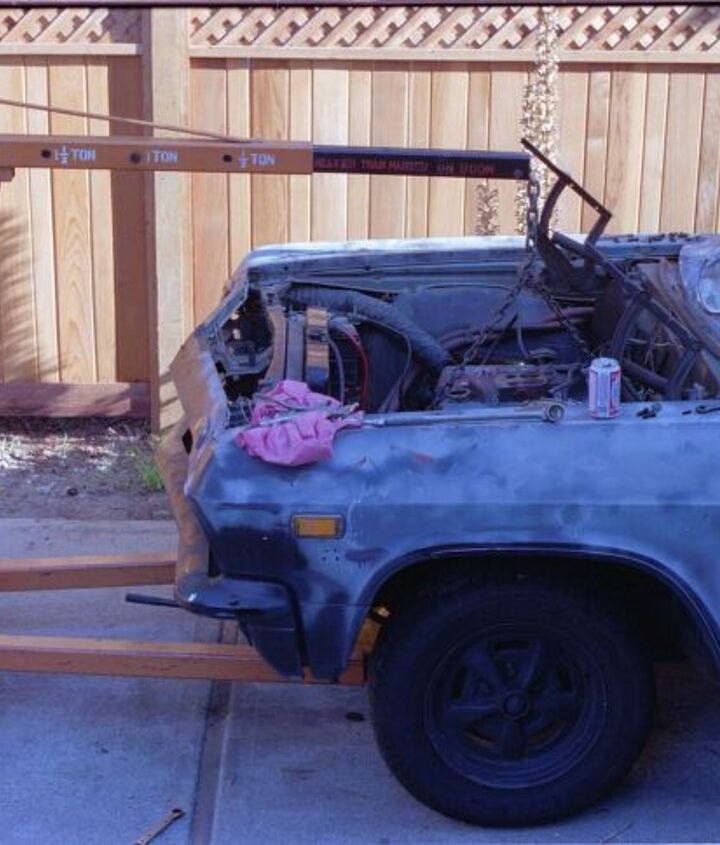

As was not the case with the rear swaybar installation, I felt the need to document the hell out of this moment. I shot the 350 extraction from many angles.

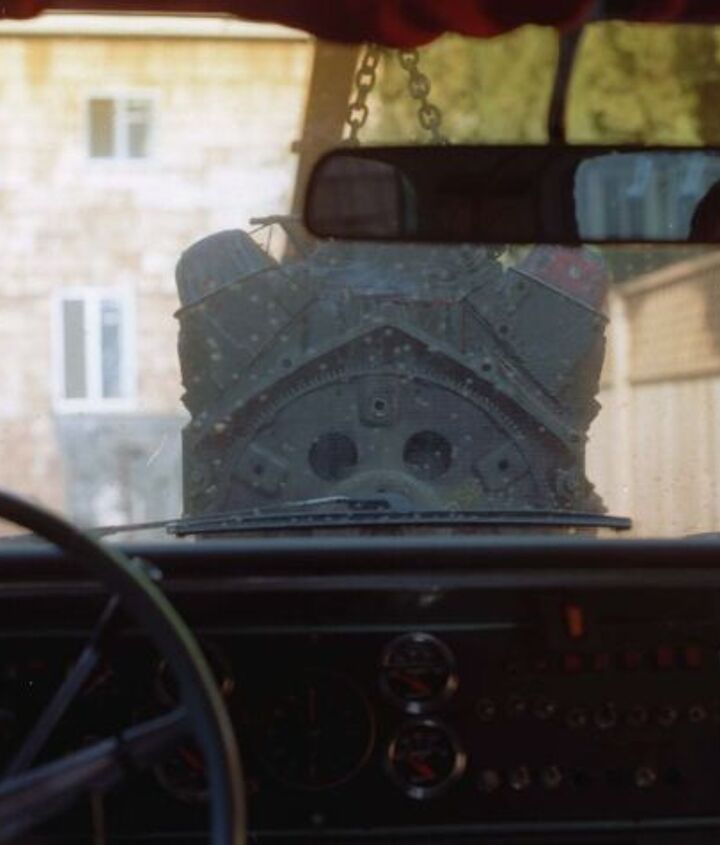

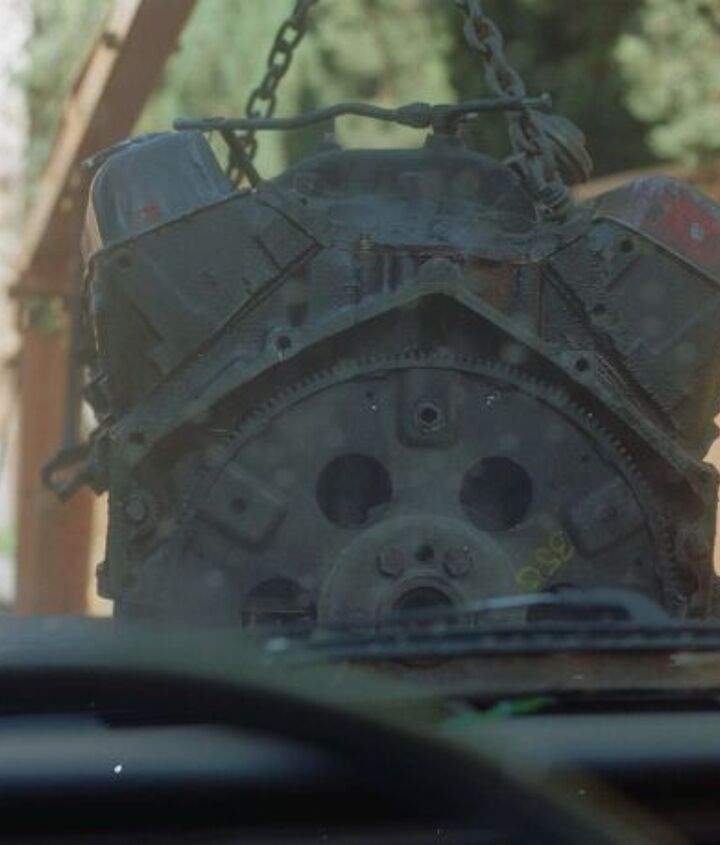

Including the view from behind the wheel.

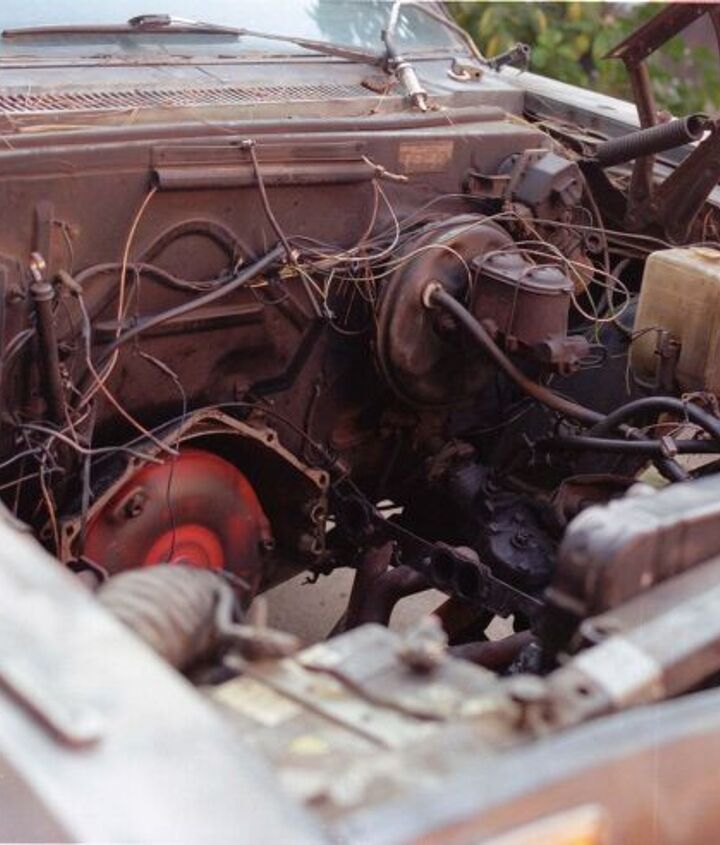

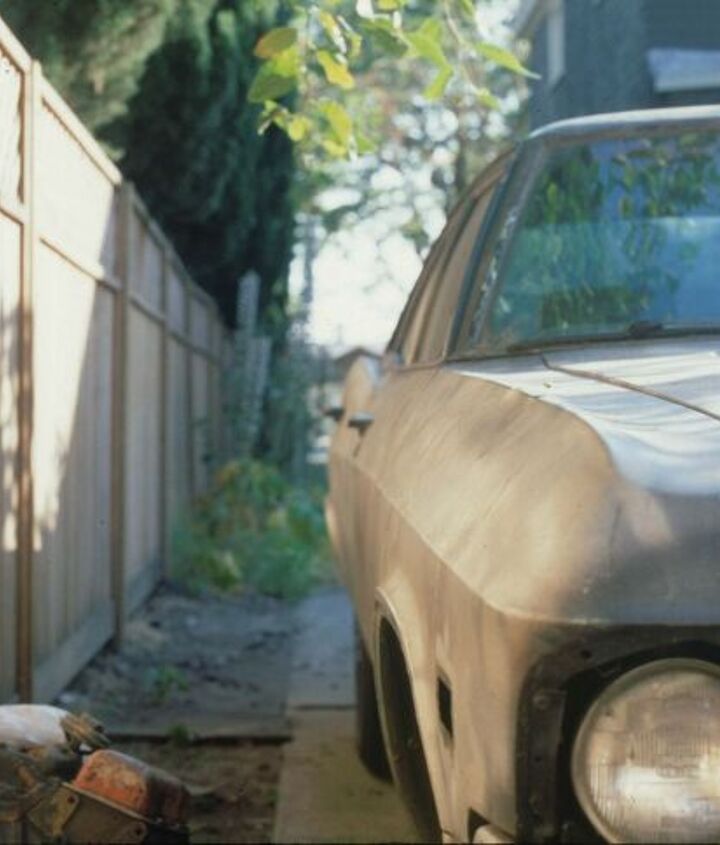

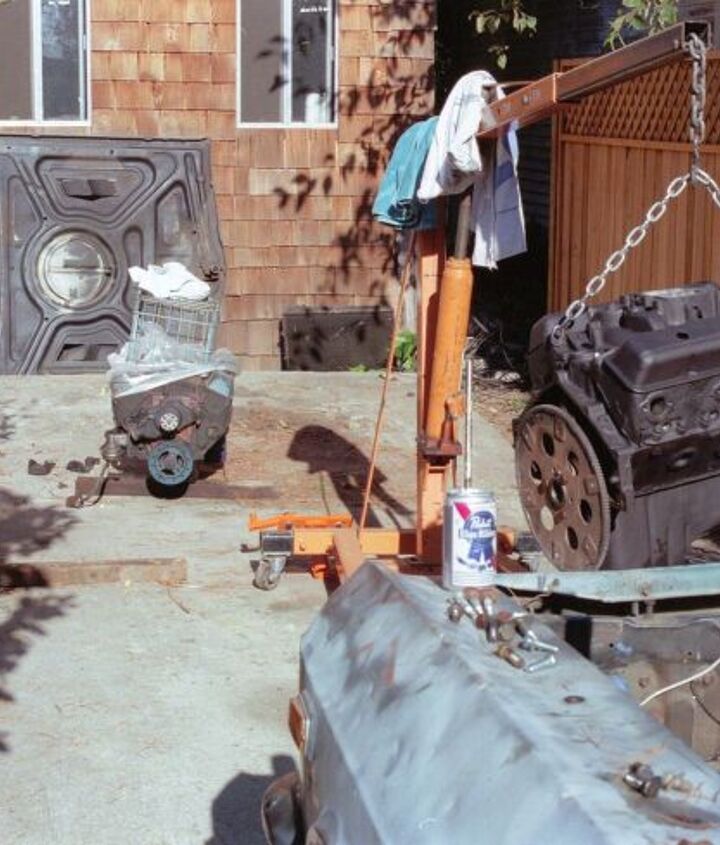

Out! And my long-suffering parents (whose back yard I’d commandeered for this project when my own driveway on the other side of The Island That Rust Forgot proved too small) experienced a flashback to my high-school years, when all manner of horrible, parts-shedding hoopties and associated components lowered their property values. Yes, the 350 sat there for a few months prior to me finding a buyer, I’m not very proud to say.

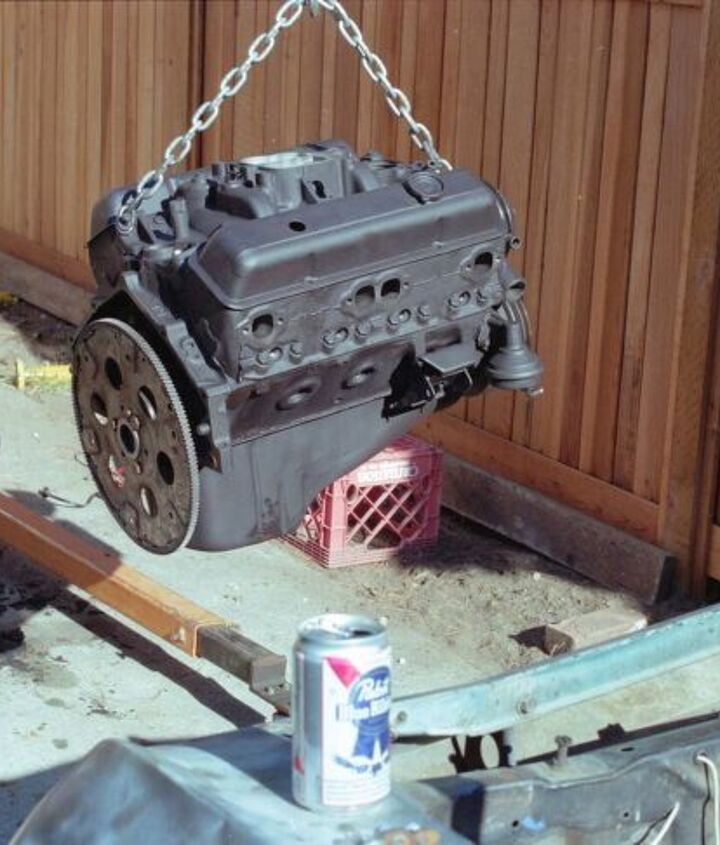

I painted the 406 flat black, after an old racer told me that it helped with engine cooling. Actually, I did it because it looked cool.
By the late 1990s, my income had risen to the point where I was no longer forced by poverty to swill terrible piss-yellow beer while working on cars… but here’s a can of Pabst on the fender. I must have been raiding my dad’s beer stash that day; his Minnesota-ized tastes die hard.

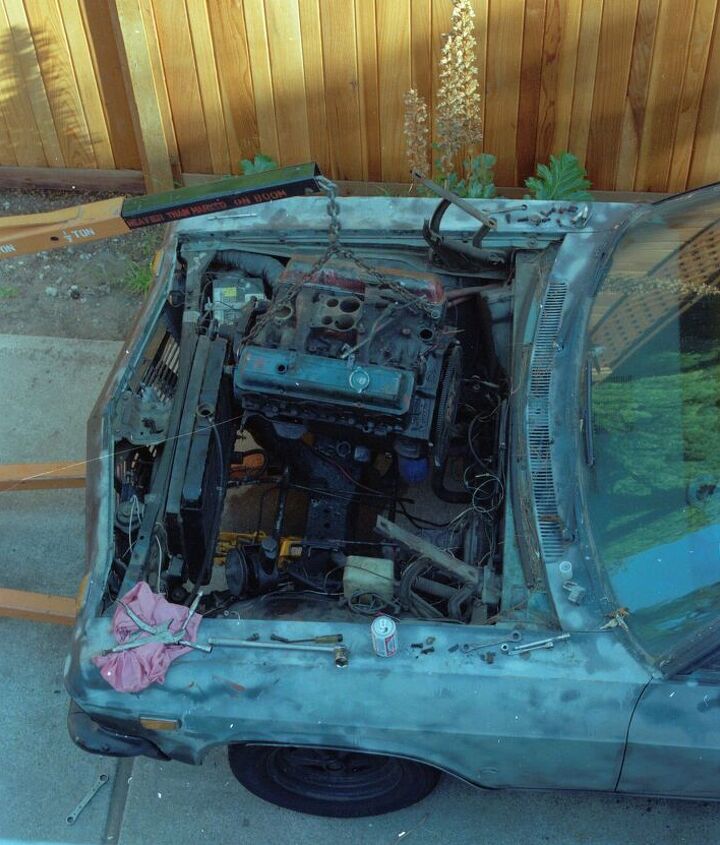

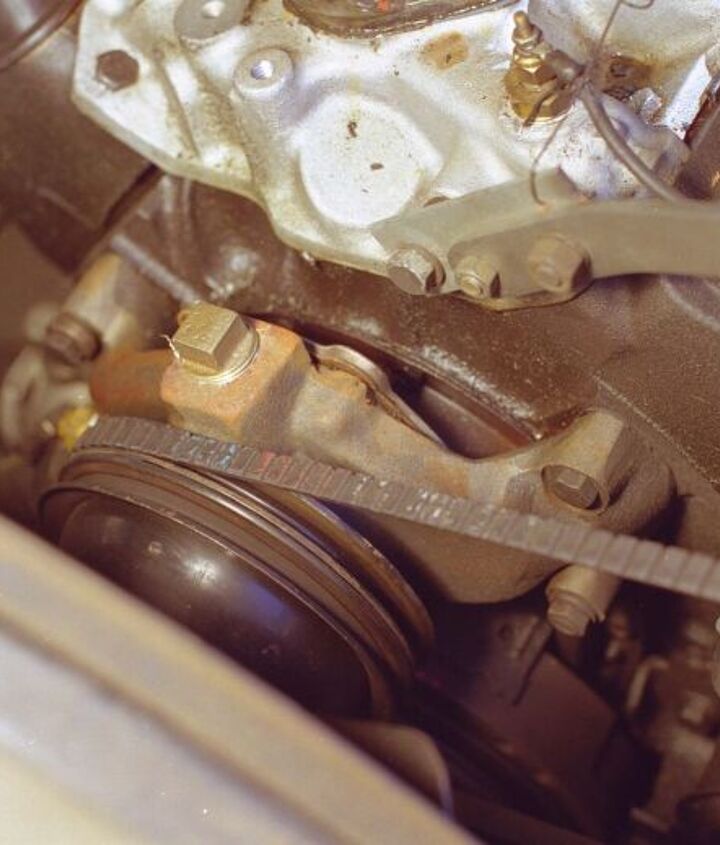

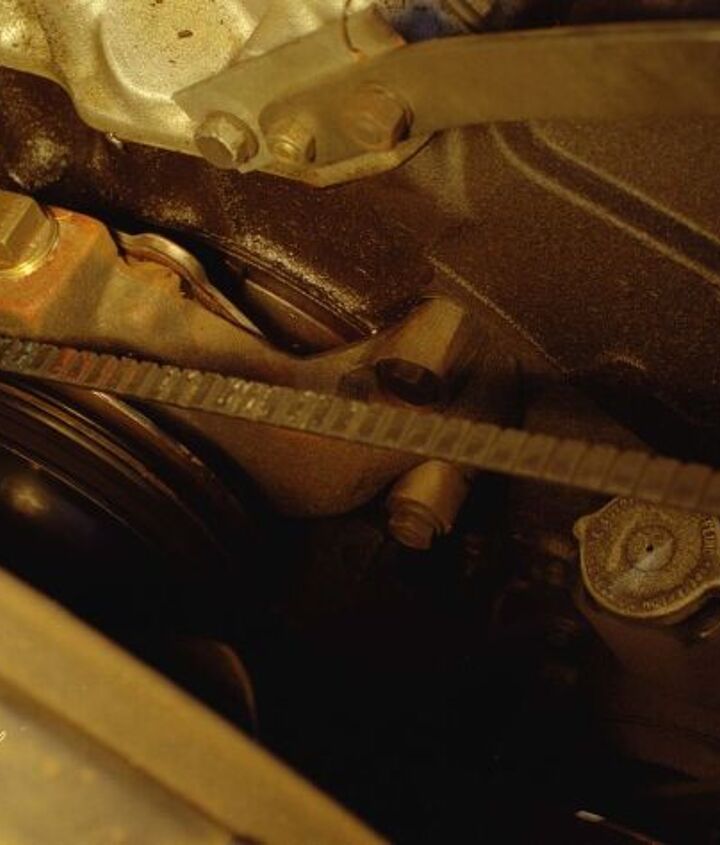

Installed! The whole swap took just a couple of hours, an experience that Those Kids These Days with their finger-bustingly-tight Civic engine compartments will never know.

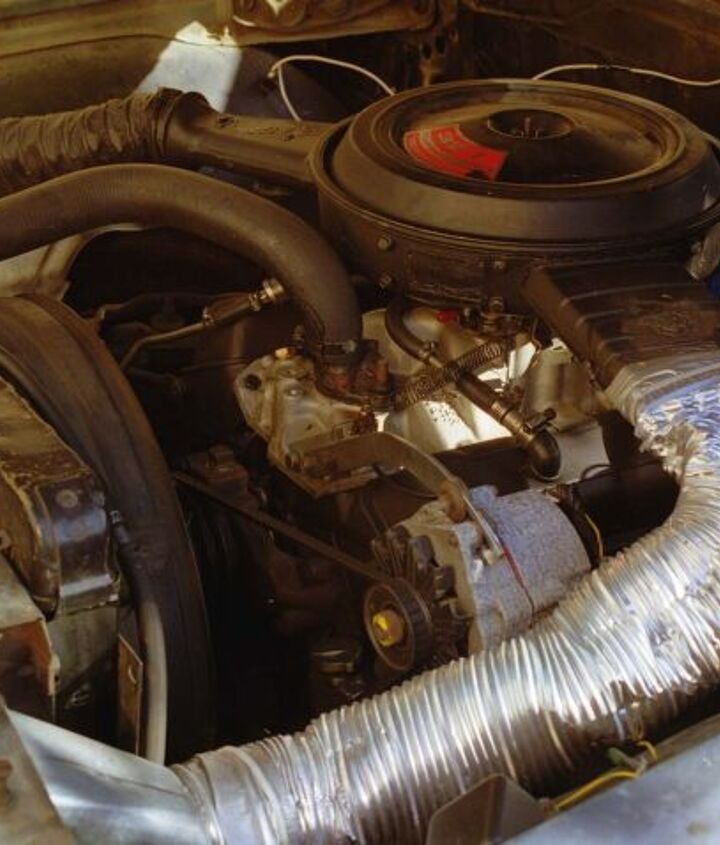

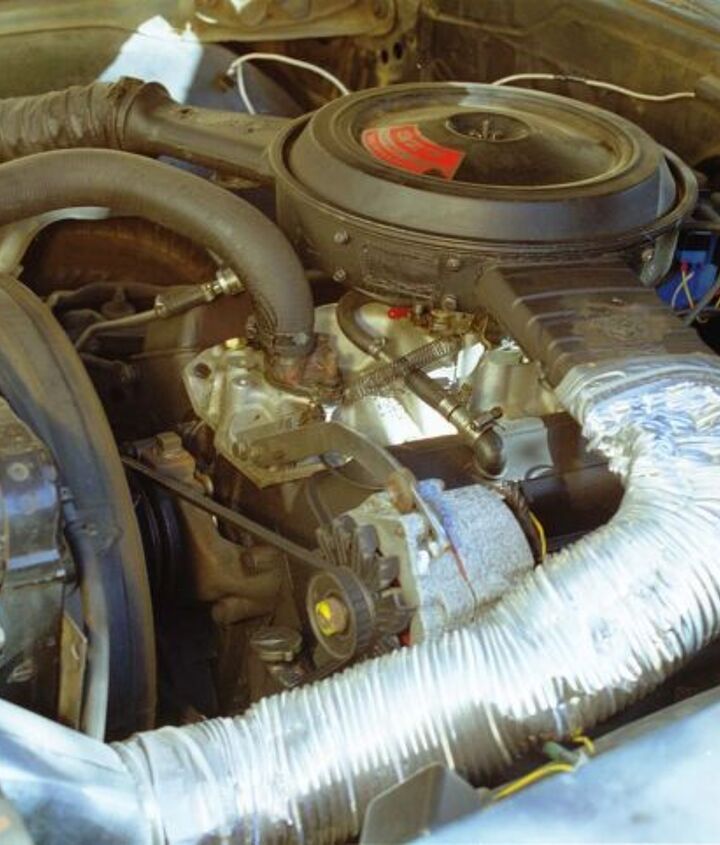

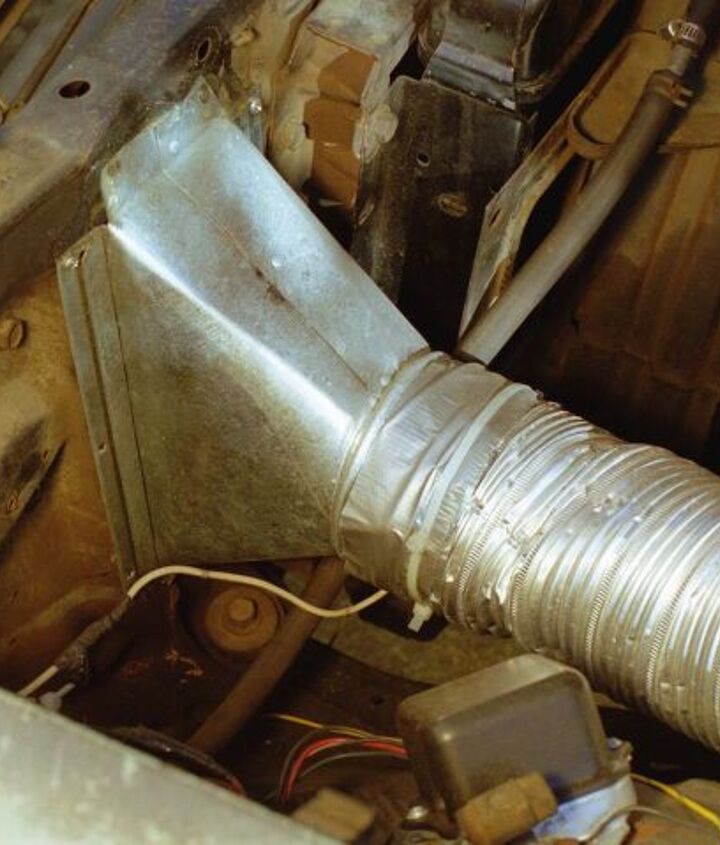

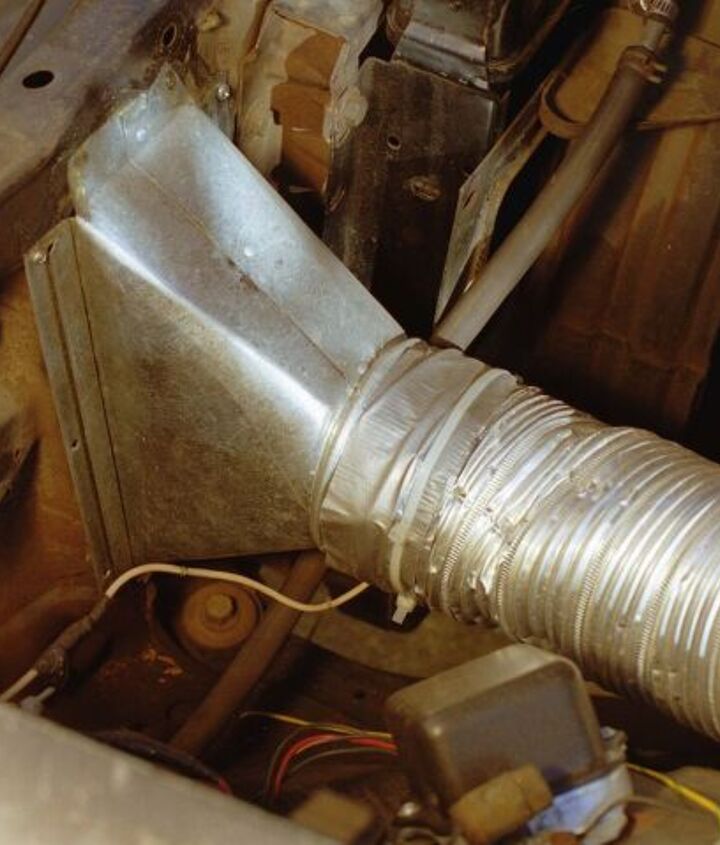

I pored over the J.C. Whitney hood scoop selection, thinking I’d rig up a seriously redneck-looking cold-air-induction system, but finally settled on the much more functional grille-mounted-ducting solution. I grabbed another air cleaner at the junkyard, grafted its snout onto the existing air cleaner, and ran dryer ducting to home-heating vents on either side of the radiator. Unfortunately, the left-side duct interfered with one of the Fiat X1/9 scoops I’d installed in ’93, so I had to remove the scoop.

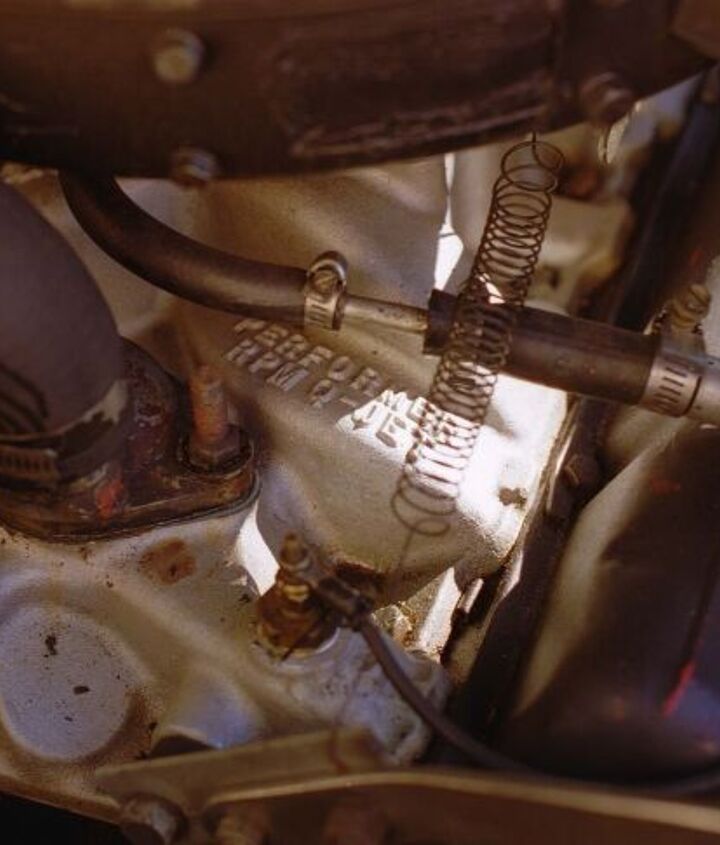

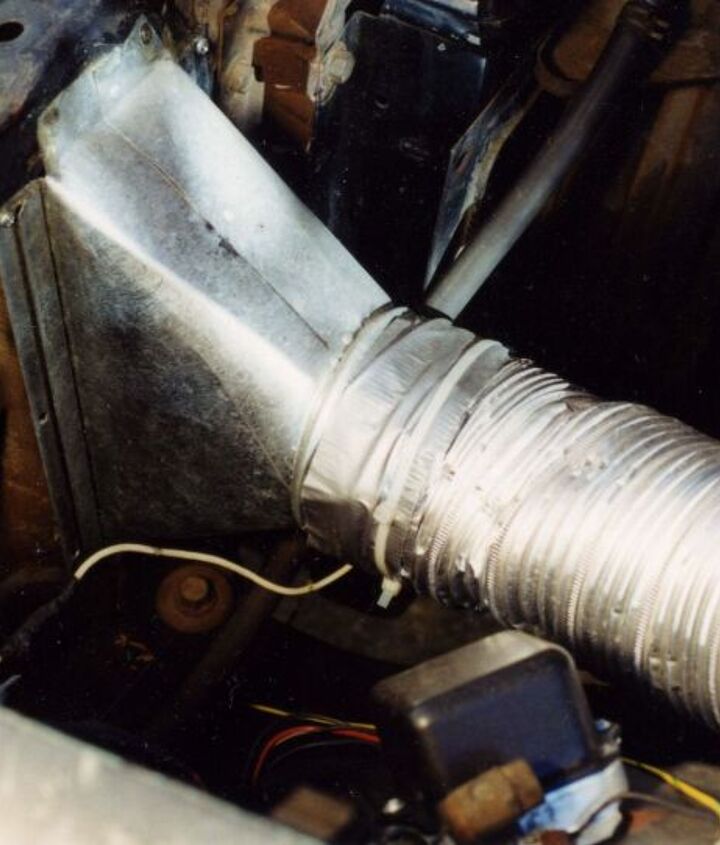

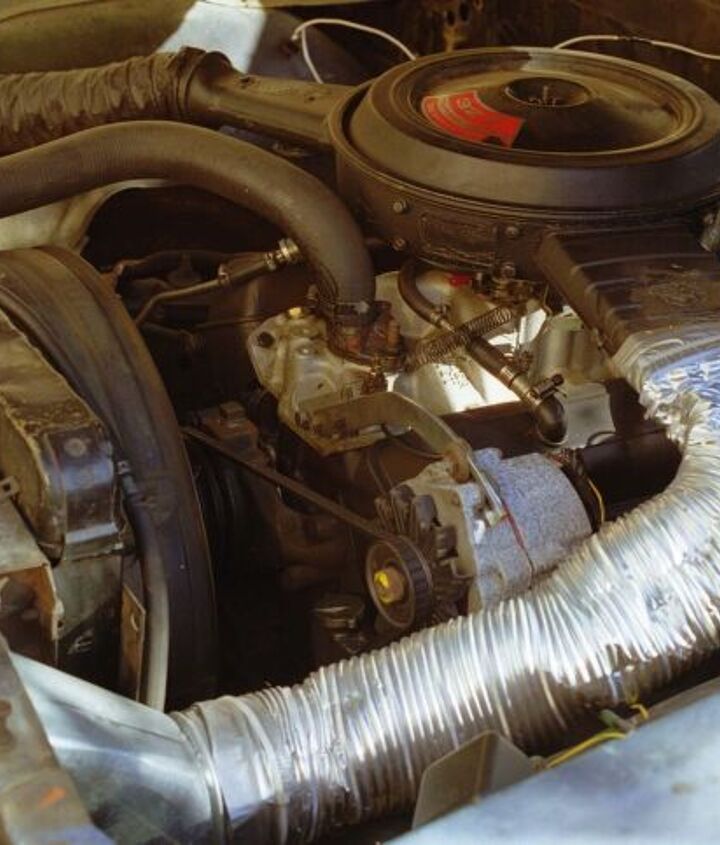

I figured that this setup should be good for force-feeding a good supply of cold outside air into the Quadrajet (which I’d pulled from a ’70 Eldorado with a 500, on the assumption that the jetting for a 500 ought to be about right for a cammed-up 406). I’d also modified the HEI distributor with high-performance advance weights.

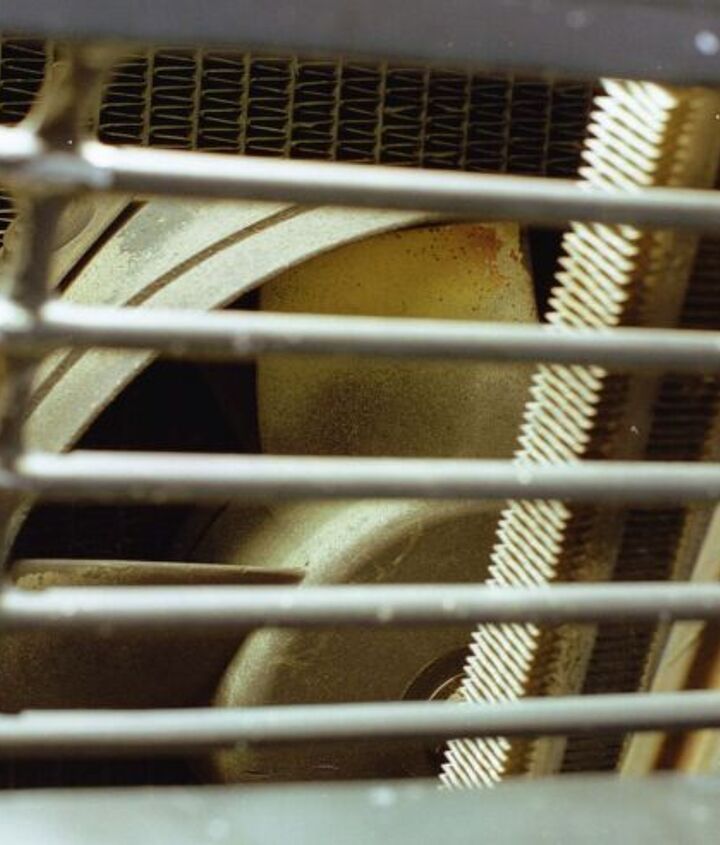

For cooling, I added a fan clutch to the factory engine-driven fan and retained the BMW 7 Series fan I’d been using for auxiliary cooling since the early 1990s.

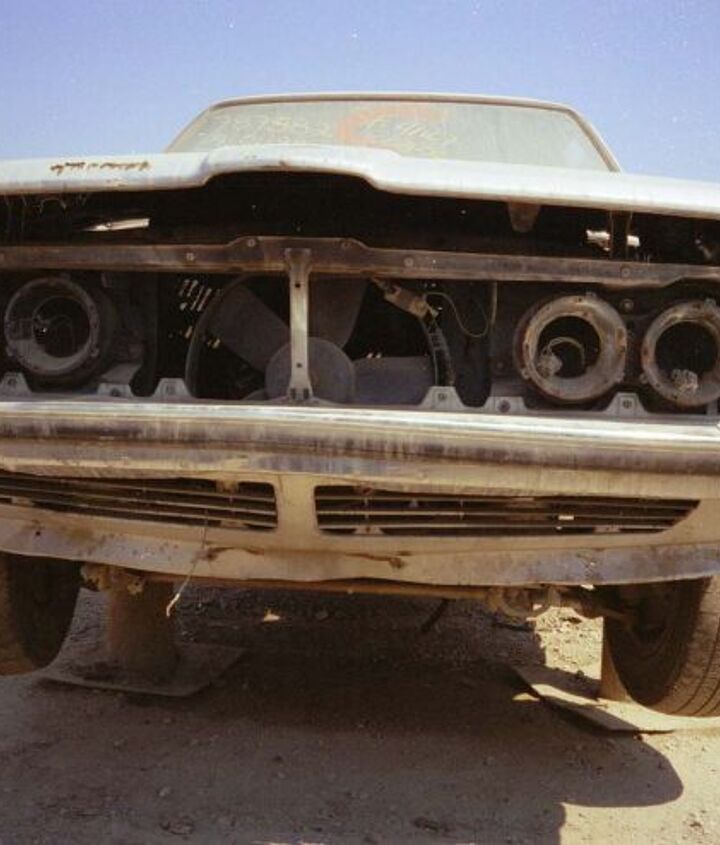

The BMW E23′s electric radiator fan is by far the best pusher-style unit you can find in the junkyard. It forces a typhoon of air through the radiator (caveat: it also draws ridiculous power— 15 amps, if I recall correctly— so you can’t run it with the headlights at the same time if you’ve got a small alternator). I used a pair of these fans a decade later, when attempting to rig up a rear-radiator setup in a V8-ized Volvo 240 race car).
My long-term plan was to see if the car could stay cool on junkyard electric fans alone (dispensing with the horsepower-sucking engine-driven fan) so I also purchased a W114 Mercedes-Benz fan.
Yes, it ran. Oh, did it run! Next episode: Glorious return to the drag strip!

IntroductionPart 1Part 2Part 3Part 4Part 5Part 6Part 7Part 8Part 9Part 10Part 11Part 12Part 13Part 14Part 15 • Part 16 • Part 17

Get the latest TTAC e-Newsletter!

32 Comments on “1965 Impala Hell Project, Part 16: Another Heart Transplant...”


  • avatar
    A Caving Ape

    1999? Oh lordy, I’m starting to dread the end of this series. Why can’t it go on forever?

    • 0 avatar
      Sinistermisterman

      So much time, love and attention heaped upon it… it’s just gonna end badly.

      • 0 avatar
        Patrickj

        @Sinister
        I realized that very early along.

      • 0 avatar
        cfclark

        Given that the Hell Impala seems to be no longer around, and I can’t see someone who’s put this much time and effort (and some money) into something like this letting it go voluntarily, I’m thinking that it met with either a collision- or economics-influenced end. And the Dodge A100 project is still in progress (I guess), so it wasn’t a marriage-precipitated end, either.

  • avatar
    mechimike

    I’m amazed you didn’t have to pull the radiator when you did the transplant. When i swapped the 318 for a 360 in my Plymouth about 10 years ago, I found it much easier to do so without that ginormous heat exchanger in the way.

    Electric fans: I hear modern Ford Taurus fans are pretty butch. The electric fans, not the drivers, that is.

    • 0 avatar

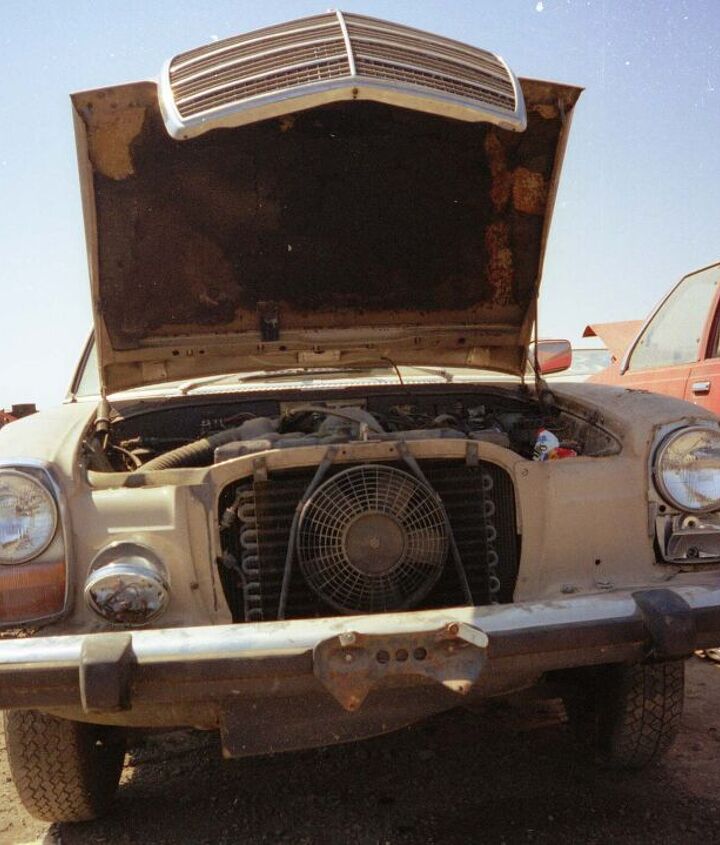

      If I have the entire junkyard for parts selection, I’m not choosing anything electrical from a Detroit car. I’m going with Toyota, (old) Mercedes-Benz, or (old) BMW.
